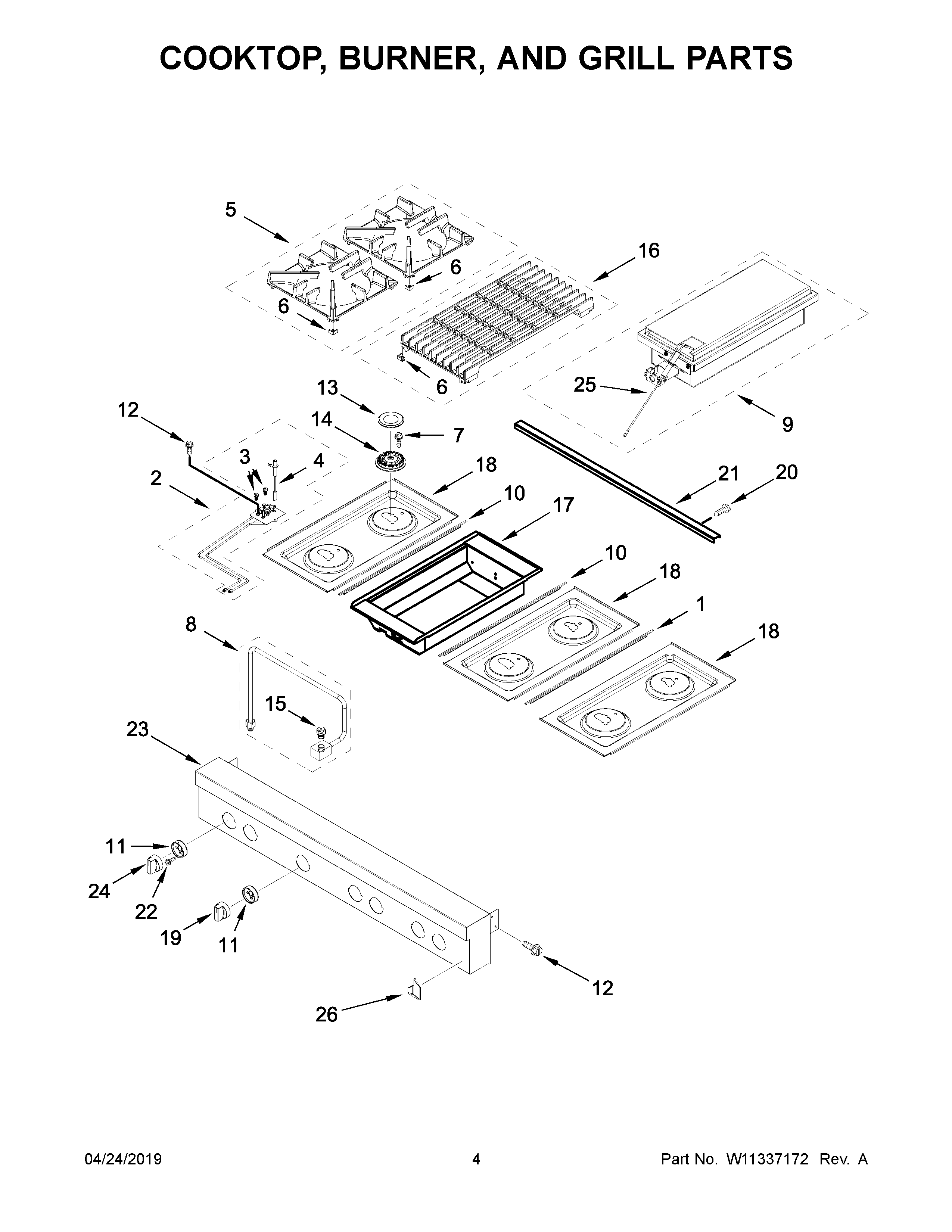

JGCP648HL00 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

Position	Product
1	TRIM, T-STRIP
2B	MAY W10892772
2	MAY W10892771
2A	MAY W10892486
3C	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3B	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3A	ORIFICE, MAIN (7.2K) (RIGHT REAR)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
5	ASSEMBLY, GRATE (BLACK (SET OF 2))
6	BUMPER, GRATE
7	SCREW
8	MAY W11197930
9	MAY W11120976
10	L-STRIP
11	BEZEL, COOKTOP
12	MAY 7101P426- 60
13	CAP, BURNER (BLACK (SET OF 6))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	MAY W10892423
16	MAY W11179894
17	MAY W11174429
18A	PANEL, COOKTOP (BLACK (RIGHT CENTER))
18B	MAY W10804373
18	PANEL, COOKTOP (BLACK (LEFT))
19	MAY W10894925
20	SCREW (8BX3/8-NI)
21	MAY W11355761
22	MAY W10919387
23	MAY W11253778
24	KNOB, BURNER (STAINLESS)
25	MAY W11174598
26	MAY W11238658
