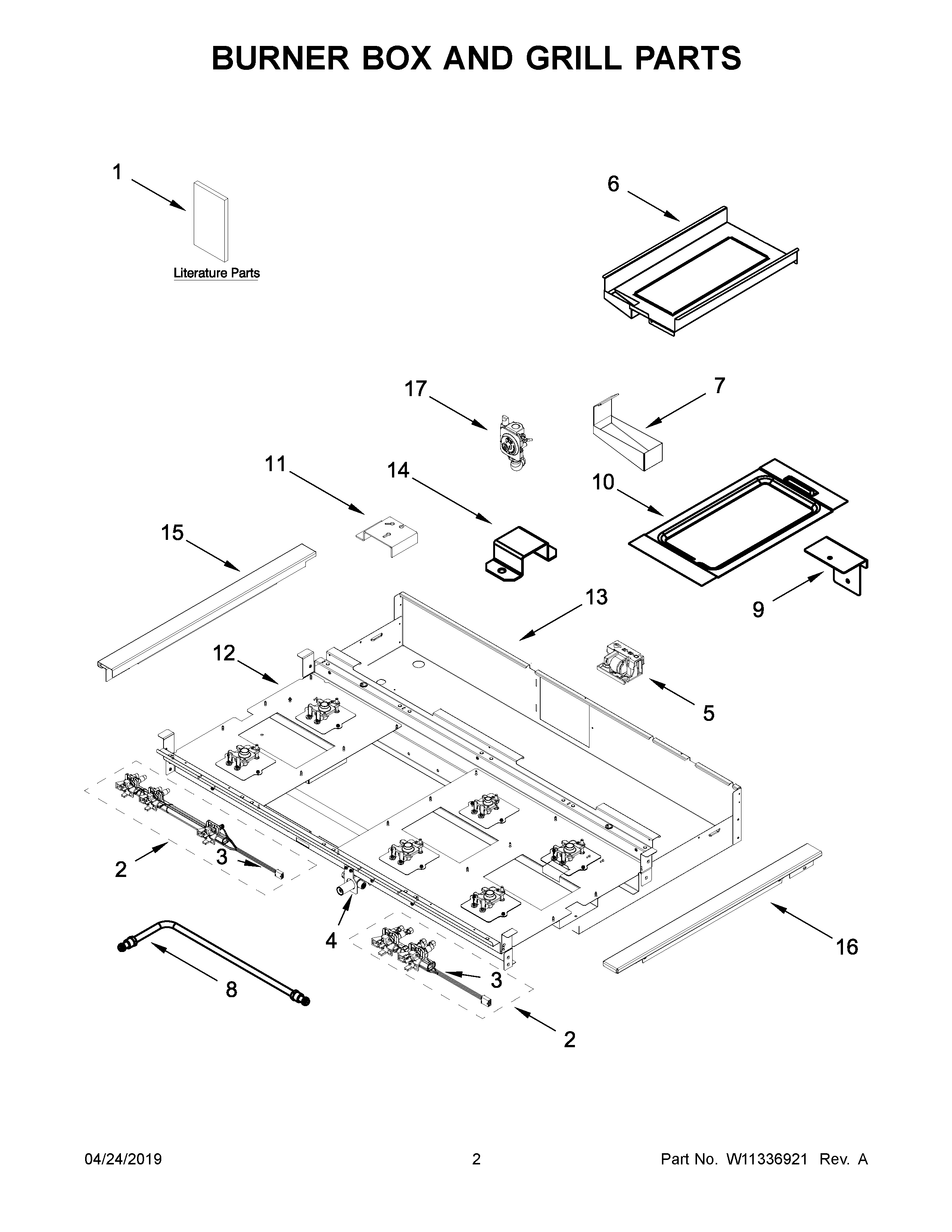

JGCP648HM00 02 – BURNER BOX AND GRILL PARTS

Products

Position	Product
NI	MAY 4450800
NI	MAY W11200330
NI	KIT, LP CONVERSION
NI	MAY W11038934
NI	CORD, POWER
NI	LINER (NOT A SERVICEABLE PART)
1A	MAY W11110989
1	MAY W11114328
1C	MAY W11266565
1B	DIAGRAM, WIRING (COOKTOP)
2	MAY W10893056
2B	MAY W11183724
2A	MAY W10893062
3	MAY W11106304
3A	SWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4	MAY W11121199
5	MODULE, SPARK
6	MAY W11120957
7	MAY W11174414
8	MAY W10892476
8A	TUBE, MANIFOLD SUPPLY (LEFT CENTER)
8B	MAY W10892347
9	MAY W11285353
10	MAY W11120965
11	BRACKET, MOUNTING ORIFICE
14	MAY W11174418
15	MAY W11047749
16	MAY W11047751
17	REGULATOR, PRESSURE
