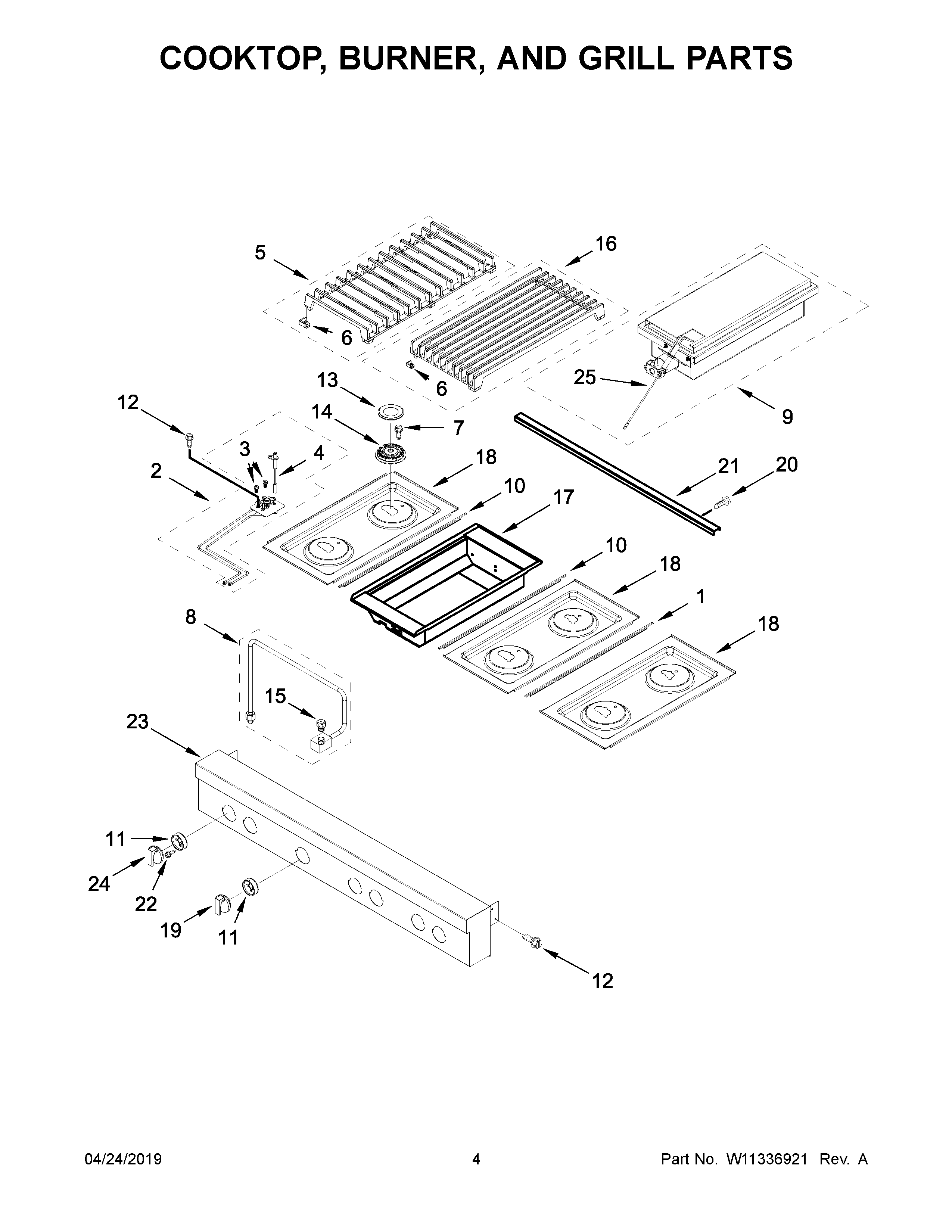

JGCP648HM00 03 – COOKTOP, BURNER, AND GRILL PARTS

Products

PositionProduct
1TRIM, T-STRIP
2AMAY W10892486
2MAY W10892771
2BMAY W10892772
3AORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3BORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3CORIFICE, SIMMER (2.0K) (RIGHT REAR)
4AIGNITER (RIGHT REAR)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
5BASSEMBLY, GRATE (BLACK) (RIGHT)
5ASSEMBLY, GRATE (BLACK) (LEFT)
5AASSEMBLY, GRATE (BLACK) (LEFT CENTER)
6BUMPER, GRATE
7SCREW
8MAY W11197930
9MAY W11120976
10L-STRIP
11BEZEL, COOKTOP
12MAY 7101P426- 60
13CAP, BURNER (BLACK (SET OF 6))
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14ASPREADER, FLAME (LOW) (RIGHT REAR)
15MAY W10892423
16MAY W11172682
17MAY W11174429
18PANEL, COOKTOP (BLACK) (LEFT)
18APANEL, COOKTOP (BLACK) (LEFT CENTER)
18BMAY W11038254
19MAY W10894926
20SCREW (8BX3/8-NI)
21MAY W11355761
22MAY W10919387
23MAY W11253794
24KNOB, BURNER (STAINLESS)
25MAY W11174598
