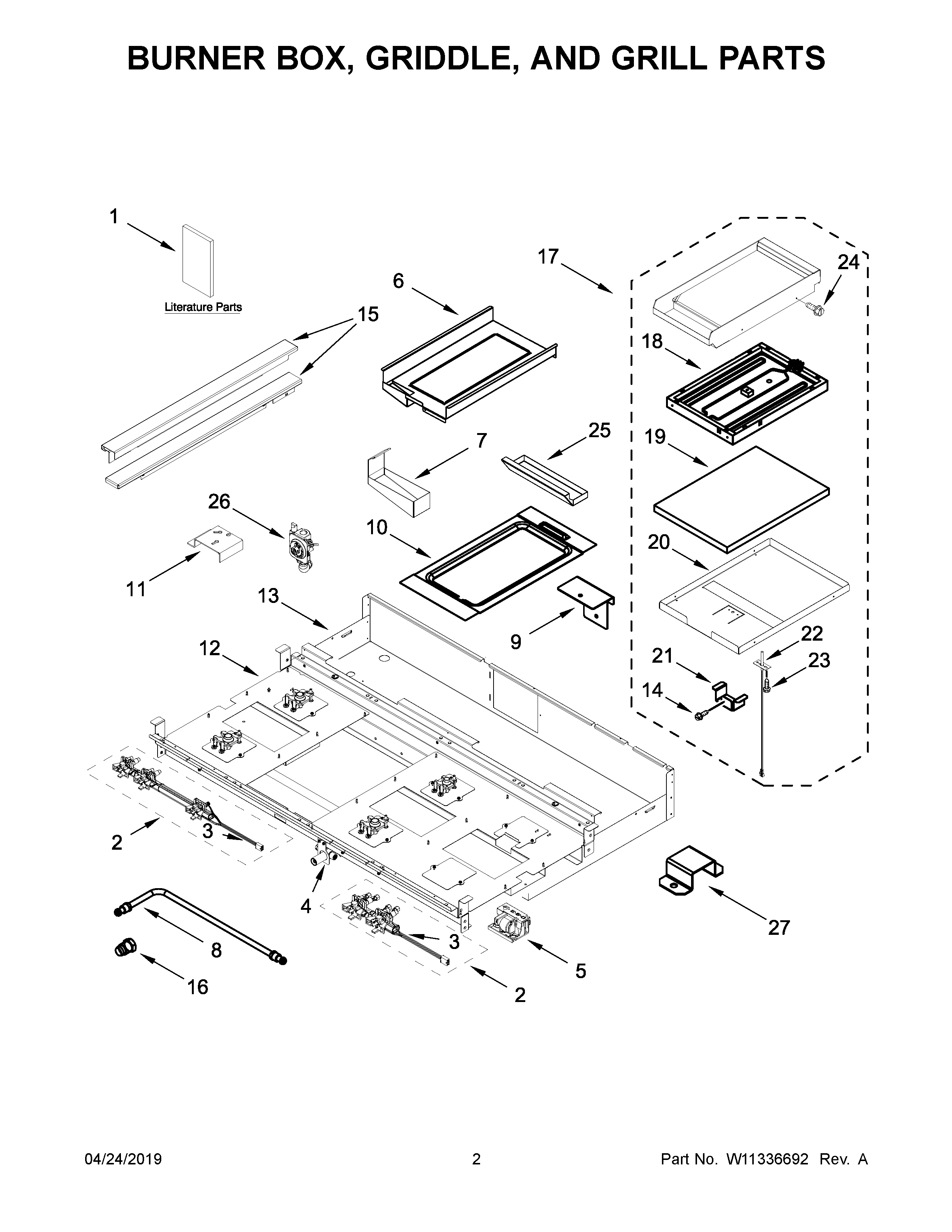

JGCP748HL00 02 – BURNER BOX, GRIDDLE, AND GRILL PARTS

JGCP748HL00 02 – BURNER BOX, GRIDDLE, AND GRILL PARTS

Written by

in

JGCP748HL00 02 – BURNER BOX, GRIDDLE, AND GRILL PARTS

Products

PositionProduct
NIMAY W11200333
NIMAY 4450800
NIHARNESS, GRIDDLE
NILINER (NOT A SERVICEABLE PART)
NICORD, POWER
NIMAY W11038934
NIKIT, LP CONVERSION
1AMAY W11110989
1MAY W11114328
1CMAY W11266565
1BDIAGRAM, WIRING (COOKTOP)
2AMAY W10893062
2MAY W10893056
3MAY W11106304
3ASWITCH, HARNESS (RIGHT FRONT AND RIGHT REAR)
4MAY W11121199
5MODULE, SPARK
6MAY W11120957
7MAY W11174414
8MAY W10892452
8AMAY W10892450
9MAY W11285353
10MAY W11120965
11BRACKET, MOUNTING ORIFICE
14MAY 7101P426- 60
15AMAY W11047751
15MAY W11047749
16MAY W10892063
17ASSEMBLY, GRIDDLE MODULE
18ELEMENT, GRIDDLE
19INSULATION, GRIDDLE
20MAY W11330430
21BRACKET, GRIDDLE-RTD
22SENSOR, GRIDDLE
23MAY 3196160
24Screw
25DRIP, TRAY GRIDDLE
26REGULATOR, PRESSURE
27MAY W11174418
