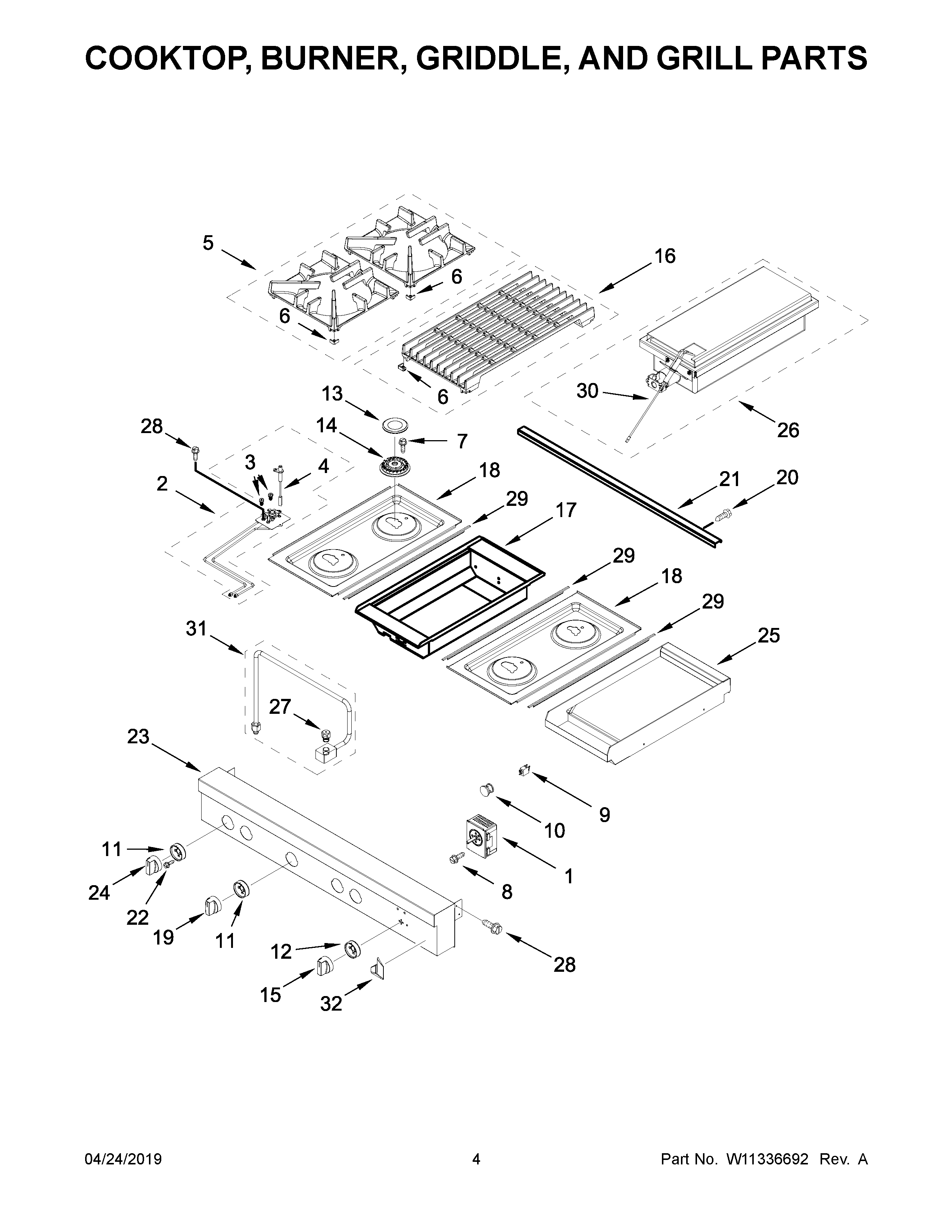

JGCP748HL00 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

Products

PositionProduct
1CONTROL, GRIDDLE
2AMAY W10892486
2MAY W10892771
2BMAY W10892772
3AORIFICE, MAIN (7.2K) (RIGHT REAR)
3ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3CORIFICE, SIMMER (2.0K) (RIGHT REAR)
3BORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4AIGNITER (RIGHT REAR)
5ASSEMBLY, GRATE (BLACK (SET OF 2))
6BUMPER, GRATE
7SCREW
8SCREW
9LIGHT, INDICATOR HOUSING
10MAY W10294500
11BEZEL, COOKTOP
12BEZEL, GRIDDLE
13CAP, BURNER (BLACK (SET OF 4))
14ASPREADER, FLAME (LOW) (RIGHT REAR)
14SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
15KNOB, GRIDDLE (STAINLESS)
16MAY W11179894
17MAY W11174429
18APANEL, COOKTOP (BLACK (RIGHT CENTER))
18PANEL, COOKTOP (BLACK (LEFT))
19MAY W10894925
20SCREW (8BX3/8-NI)
21MAY W11355761
22MAY W10919387
23MAY W11253777
24KNOB, BURNER (STAINLESS)
25ASSEMBLY, GRIDDLE MODULE
26MAY W11120976
27MAY W10892423
28MAY 7101P426- 60
29L-STRIP
30MAY W11174598
31MAY W11197930
32MAY W11238658
