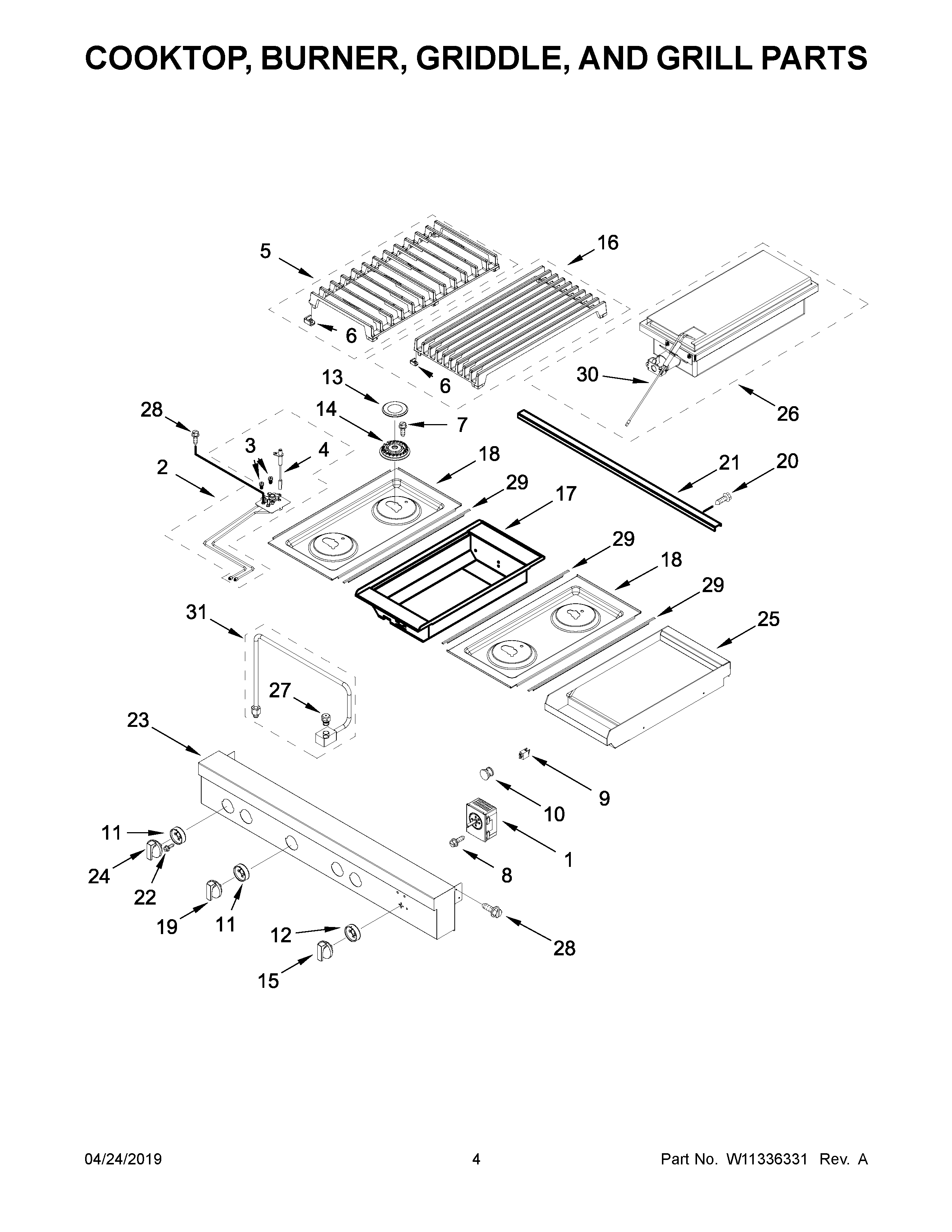

JGCP748HM00 03 – COOKTOP, BURNER, GRIDDLE, AND GRILL PARTS

Products

Position	Product
1	CONTROL, GRIDDLE
2B	MAY W10892772
2	MAY W10892771
2A	MAY W10892486
3C	ORIFICE, SIMMER (2.0K) (RIGHT REAR)
3B	ORIFICE, SIMMER (2.6K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3	ORIFICE, MAIN (17.4K) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
3A	ORIFICE, MAIN (7.2K) (RIGHT REAR)
4	IGNITER (LEFT FRONT, LEFT REAR, RIGHT FRONT)
4A	IGNITER (RIGHT REAR)
5A	ASSEMBLY, GRATE (BLACK) (RIGHT)
5	ASSEMBLY, GRATE (BLACK) (LEFT)
6	BUMPER, GRATE
7	SCREW
8	SCREW
9	LIGHT, INDICATOR HOUSING
10	MAY W10294500
11	BEZEL, COOKTOP
12	BEZEL, GRIDDLE
13	CAP, BURNER (BLACK (SET OF 4))
14	SPREADER, FLAME (HIGH) (LEFT FRONT, LEFT REAR, RIGHT FRONT)
14A	SPREADER, FLAME (LOW) (RIGHT REAR)
15	KNOB, GRIDDLE (STAINLESS)
16	MAY W11172682
17	MAY W11174429
18	PANEL, COOKTOP (BLACK) (LEFT)
18A	PANEL, COOKTOP (BLACK) (LEFT CENTER)
19	MAY W10894926
20	SCREW (8BX3/8-NI)
21	MAY W11355761
22	MAY W10919387
23	MAY W11253793
24	KNOB, BURNER (STAINLESS)
25	ASSEMBLY, GRIDDLE MODULE
26	MAY W11120976
27	MAY W10892423
28	MAY 7101P426- 60
29	L-STRIP
30	MAY W11174598
31	MAY W11197930
