JGCS54EH2 BASIC BODY – Aparts

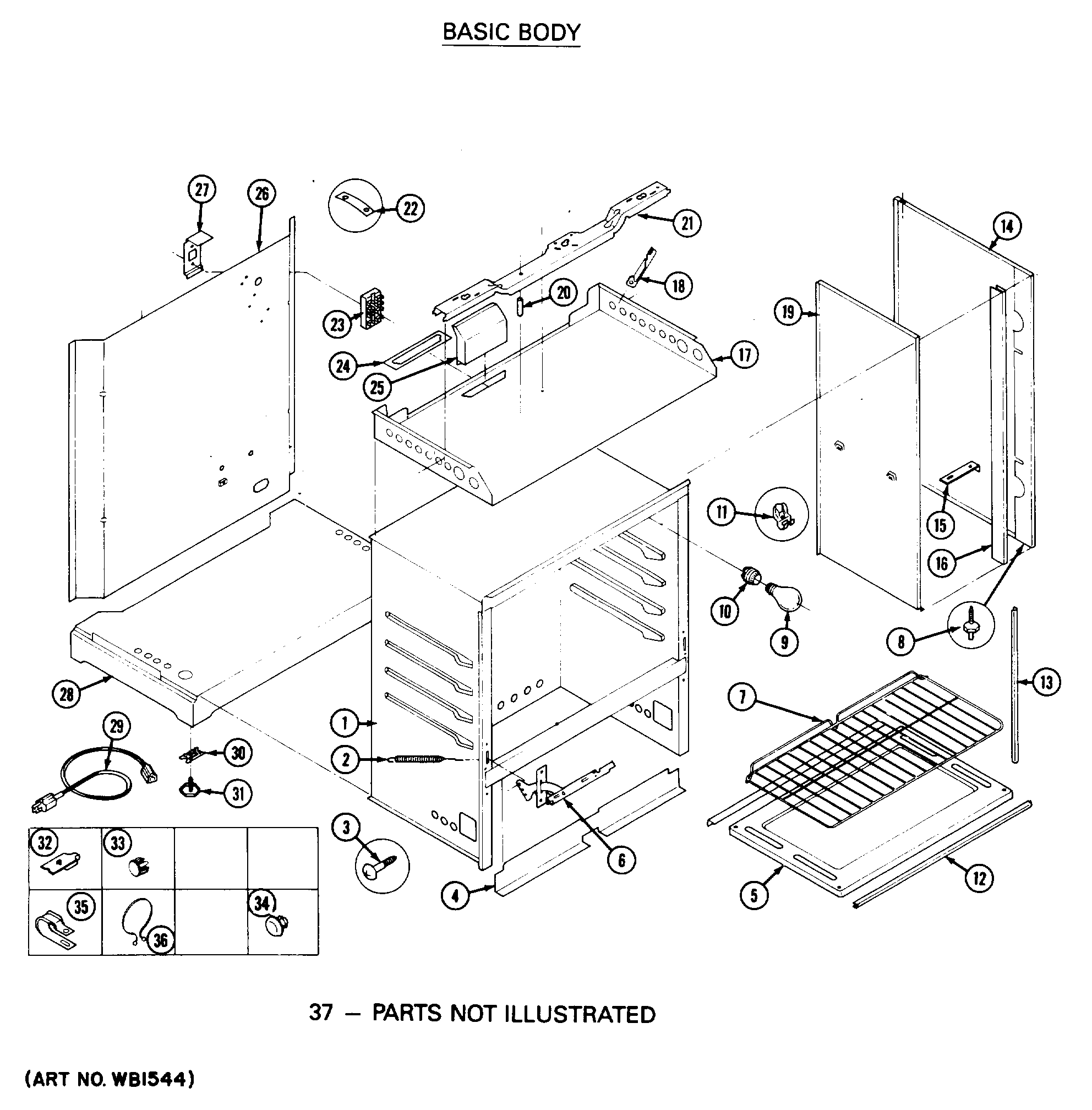

JGCS54EH2 BASIC BODY

Products

Position	Product
1	OVEN ASSEMBLY
2	SPRING OVEN DOOR
3	GEN WB1X0704
4	GEN WB49X0521
5	GEN WB49X0570
6	*DOOR ADJUSTMENT KIT
6	HINGE OVEN DOOR RH
6	HINGE OVEN DOOR LH
7	GEN WB48X0166
8	PIN BODY PANEL GUIDE
9	GEN BUY-LOCAL
10	SOCKET-OVEN LIGHT
11	CLIP-THERMOSTAT BULB
12	SEAL DOOR BOTTOM/TOP
13	SEAL DOOR SIDE
14	PANEL-SIDE-WHITE-RH
14	PANEL SIDE R/H ALMOND
14	PANEL-SIDE-ALMOND-RH
14	PANEL SIDE R/H WHITE
15	BRACKET-STIFFENER-BOTTOM
15	GEN WB48X171
16	CHANNEL-STIFFENER-BASE
17	GEN WB49X0605
18	BRACKET-COOKTOP-RH
18	BRACKET-COOKTOP-LH
19	BODY-SIDE-INNER
20	SPACER-BURNER SUPPORT
21	BURNER SUPPORT CHANNEL
21	GEN WB01X1035
21	GEN WB01X1036
21	GEN WB01X1037
21	TERMINAL BLOCK
22	GEN WB01X0729
23	GEN WB17X189
24	GEN WB02X10048
25	FLUE BOX-LOWER
26	GEN WB63X0296
27	GEN WB02X4211
28	GEN WB49X0555
29	GEN WB18X0269
30	FASTENER LEG LEVELER
31	LEVELING LEG
32	FASTENER-HINGE
33	GEN WB01X0702
34	PLUG BUTTON-FRONT FRAME
35	FASTENER-CLAMP-CORD
36	GEN WB02X10049
