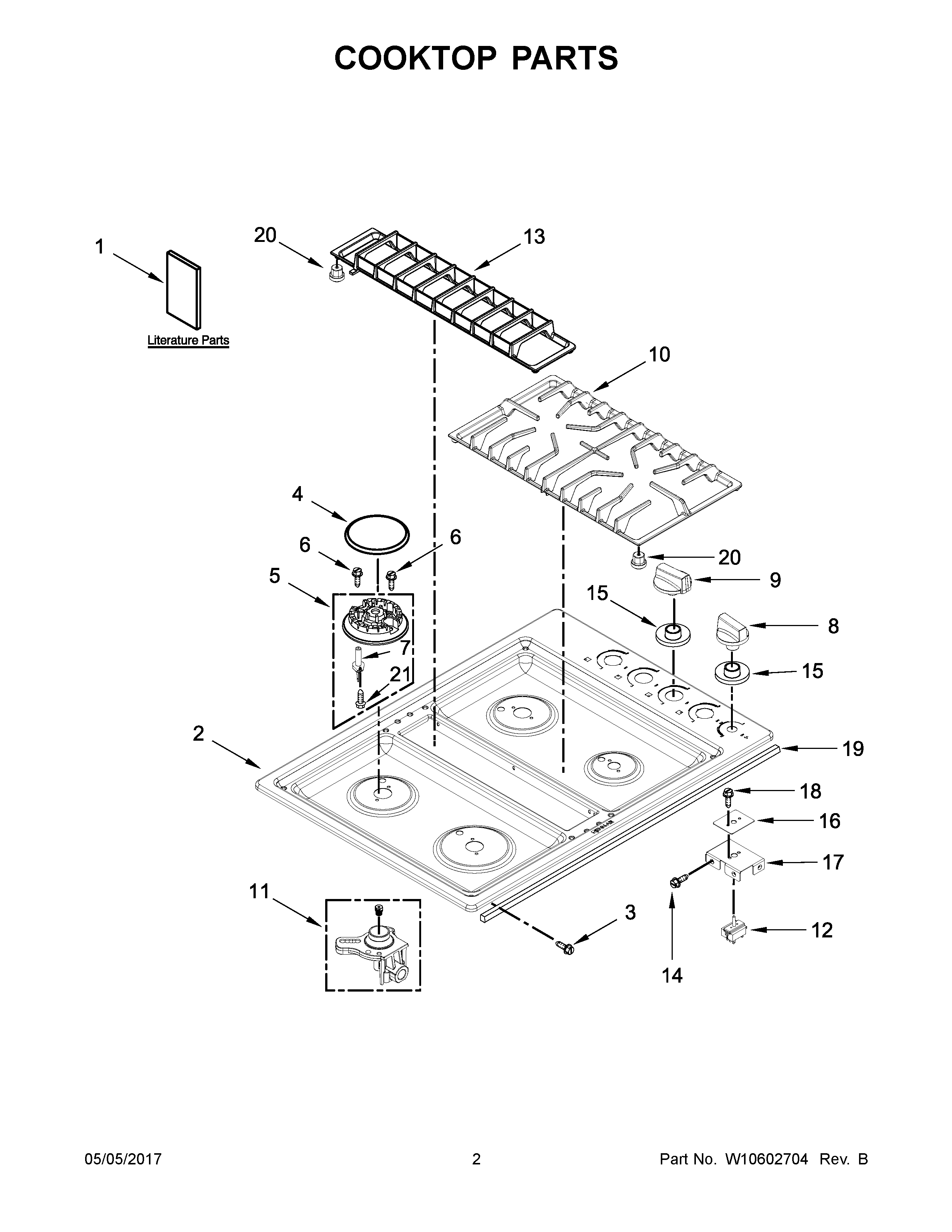

JGD3430BB00 02 – COOKTOP PARTSadmin2025-04-26T09:04:30+00:00JGD3430BB00 02 – COOKTOP PARTS
Products
| Position | Product |
|---|
| NI | MAY 8019P017-60 |
| NI | MAY W10183556 |
| NI | MAY W10207828 |
| NI | MAY W10207829 |
| NI | MAY W10249271 |
| NI | MAY W10815865 |
| NI | MAY W10253222 |
| NI | MAY 7402P087-60 |
| NI | CLIP, HARNESS |
| NI | LINER (NOT A SERVICEABLE PART) |
| 1F | TIPS, SAFE COOKING (ENGLISH) |
| 1D | INSTRUCTIONS, LP CONVERSION |
| 1C | GUIDE, USE & CARE |
| 1B | DIAGRAM, WIRING (FRENCH) |
| 1A | DIAGRAM, WIRING (ENGLISH) |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1G | TIPS, SAFE COOKING (FRENCH) |
| 1E | CARD, FLOW TESTER |
| 2 | TOP, MAIN (BLACK) |
| 2A | TOP, MAIN (WHITE) |
| 2B | TOP, MAIN (STAINLESS) |
| 4A | CAP, BURNER (BLACK (LEFT REAR & RIGHT REAR)) |
| 4E | CAP, BURNER (WETSTONE (RIGHT FRONT)) |
| 4 | CAP, BURNER (BLACK (LEFT FRONT)) |
| 4D | CAP, BURNER (WETSTONE (LEFT REAR & RIGHT REAR)) |
| 4B | CAP, BURNER (BLACK (RIGHT FRONT)) |
| 4C | CAP, BURNER (WETSTONE (LEFT FRONT)) |
| 5A | HEAD, BURNER (LR & RF) |
| 5 | HEAD, BURNER (CTR) |
| 5B | HEAD, BURNER (LF & RR) |
| 6 | MAY 7101P426- 60 |
| 7 | IGNITOR |
| 8 | KNOB, FAN (BLACK) |
| 8B | KNOB, FAN (STAINLESS) |
| 8A | KNOB, FAN (WHITE) |
| 9A | KNOB, CONTROL (WHITE) |
| 9 | KNOB, CONTROL (BLACK) |
| 9B | KNOB, CONTROL (STAINLESS) |
| 10 | BURNER, GRATE (INCLUDES BUMPERS) (BLACK) |
| 10A | BURNER, GRATE (INCLUDES BUMPERS) (WETSTONE) |
| 11 | HOLDER, ORIFICE (17K) (LEFT FRONT) |
| 11A | HOLDER, ORIFICE (LR) |
| 11C | MAY 7527P003-60 |
| 11B | HOLDER, ORIFICE (LF, RR) |
| 12 | SWITCH, BLOWER |
| 13 | GRILLE, DOWNDRAFT (INCLUDES |
| 13A | MAY W10204544 |
| 14 | MAY 7101P427-60 |
| 15A | MAY W10559485 |
| 15 | MAY W10559486 |
| 15B | MAY W10559494 |
| 16 | GASKET, INFINITE SWITCH |
| 17 | MAY W10235925 |
| 18 | SCREW |
| 19 | MAY 8270P188-60 |
| 20 | MAY 8003P033-60 |
| 21 | MAY 7101P606-60 |
