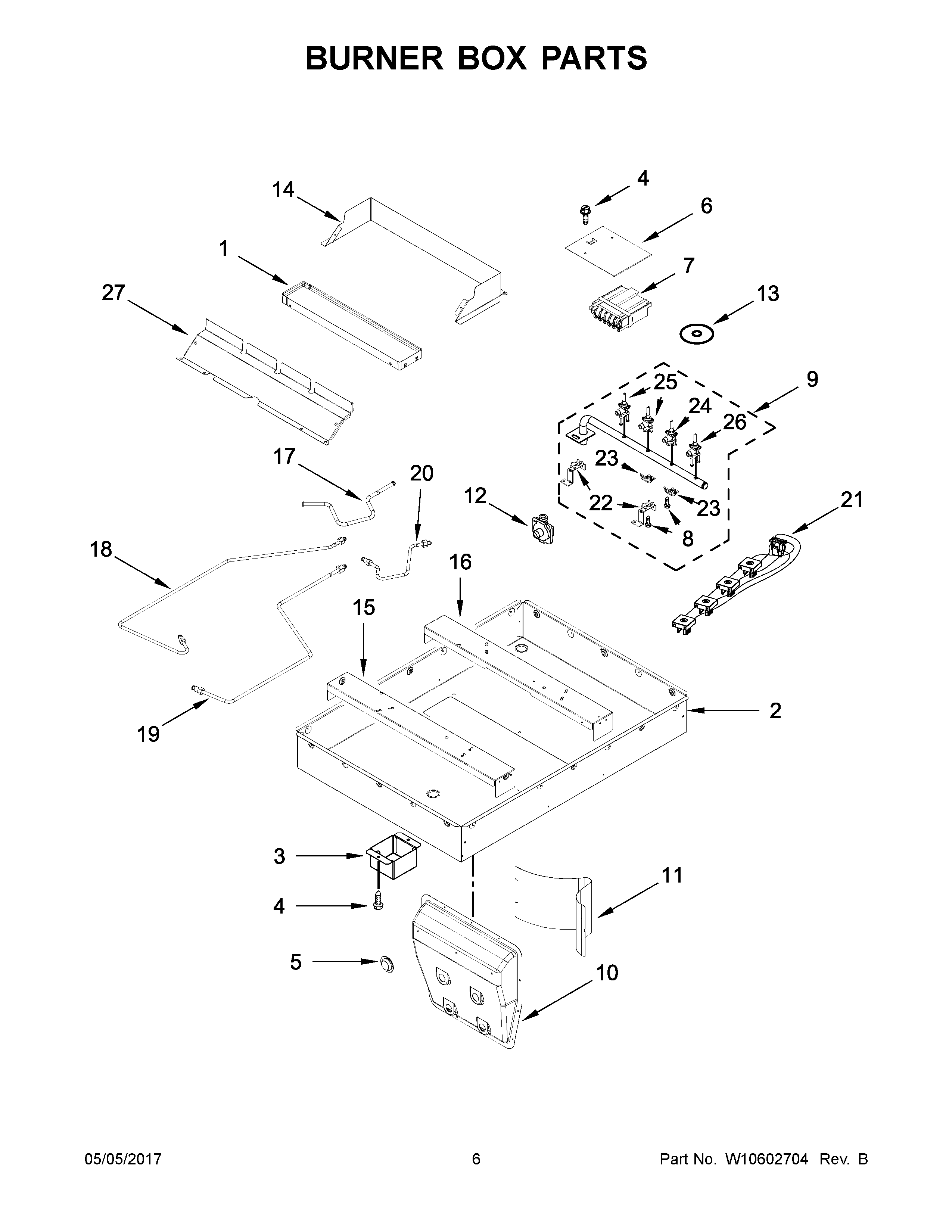

JGD3430BB00 04 – BURNER BOX PARTS

JGD3430BB00 04 – BURNER BOX PARTS

Written by

in

JGD3430BB00 04 – BURNER BOX PARTS

Products

PositionProduct
1TRAY, SPILL
2LINER (NOT A SERVICEABLE PART)
3COVER, BLOWER MOTOR HARNESS
4MAY 7101P426- 60
5PLUG, HOLE
6COVER, SPARK
7MODULE, SPARK
8SCREW
9ASSEMBLY, MANIFOLD
10BYPASS, PLENUM SIDE
11RAIL, PLENUM SUPPORT
12REGULATOR, PRESSURE
13SEAL, SHAFT
14MAY W10646812
15BRACKET, ORIFICE HOLDER (LEFT)
16BRACKET, ORIFICE HOLDER (RIGHT)
17TUBING, GAS (LEFT FRONT)
18TUBING,GAS (LEFT REAR)
19TUBING,GAS (RIGHT FRONT)
20TUBING,GAS (RIGHT REAR)
21SWITCH, IGNITOR
22BRACKET, VALVE MOUNT
23BRACKET, SADDLE VALVE
24MAY W10467730
25MAY W10467728
26MAY W10467729
27MAY W10646811
