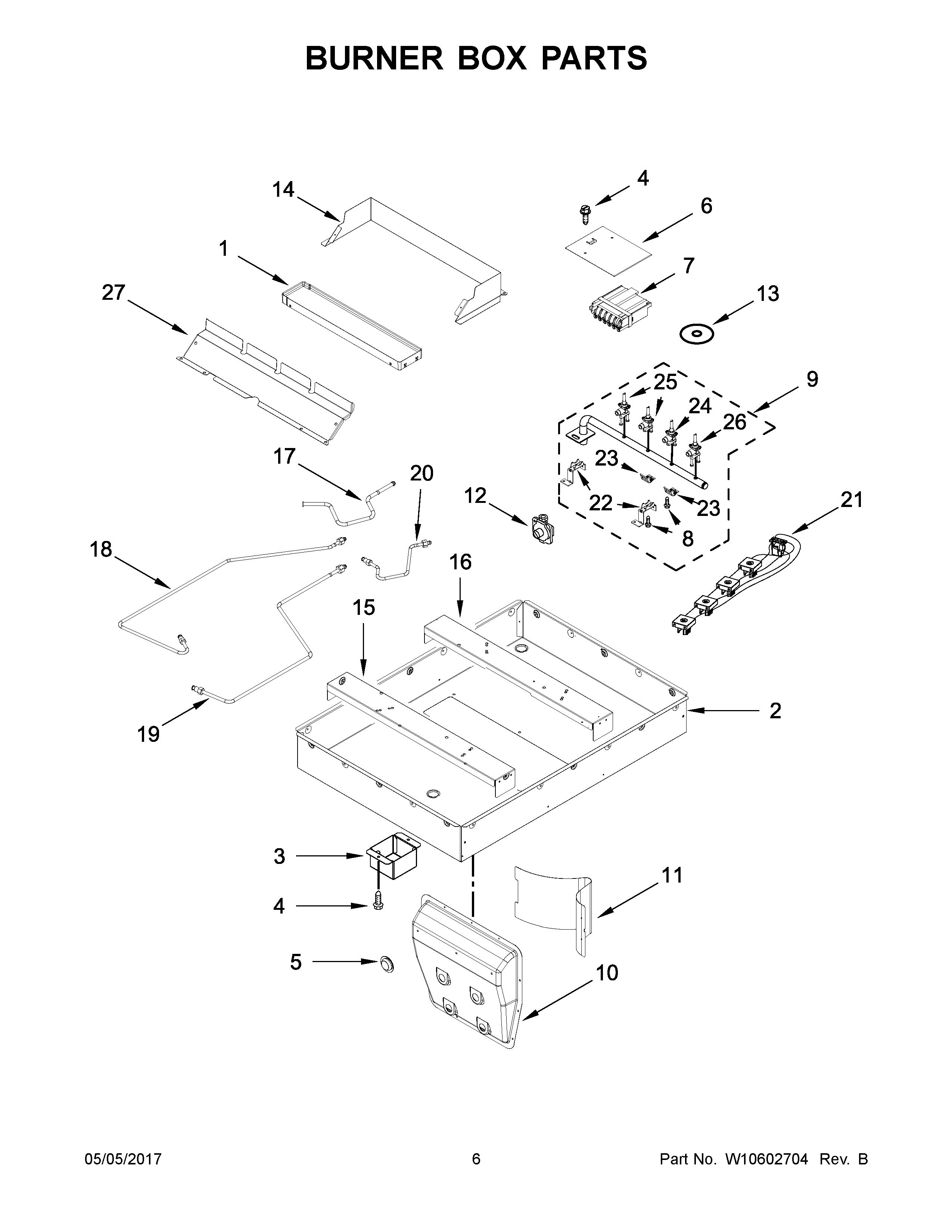

JGD3430BS00 04 – BURNER BOX PARTS

Products

Position	Product
1	TRAY, SPILL
2	LINER (NOT A SERVICEABLE PART)
3	COVER, BLOWER MOTOR HARNESS
4	MAY 7101P426- 60
5	PLUG, HOLE
6	COVER, SPARK
7	MODULE, SPARK
8	SCREW
9	ASSEMBLY, MANIFOLD
10	BYPASS, PLENUM SIDE
11	RAIL, PLENUM SUPPORT
12	REGULATOR, PRESSURE
13	SEAL, SHAFT
14	MAY W10646812
15	BRACKET, ORIFICE HOLDER (LEFT)
16	BRACKET, ORIFICE HOLDER (RIGHT)
17	TUBING, GAS (LEFT FRONT)
18	TUBING,GAS (LEFT REAR)
19	TUBING,GAS (RIGHT FRONT)
20	TUBING,GAS (RIGHT REAR)
21	SWITCH, IGNITOR
22	BRACKET, VALVE MOUNT
23	BRACKET, SADDLE VALVE
24	MAY W10467730
25	MAY W10467728
26	MAY W10467729
27	MAY W10646811
