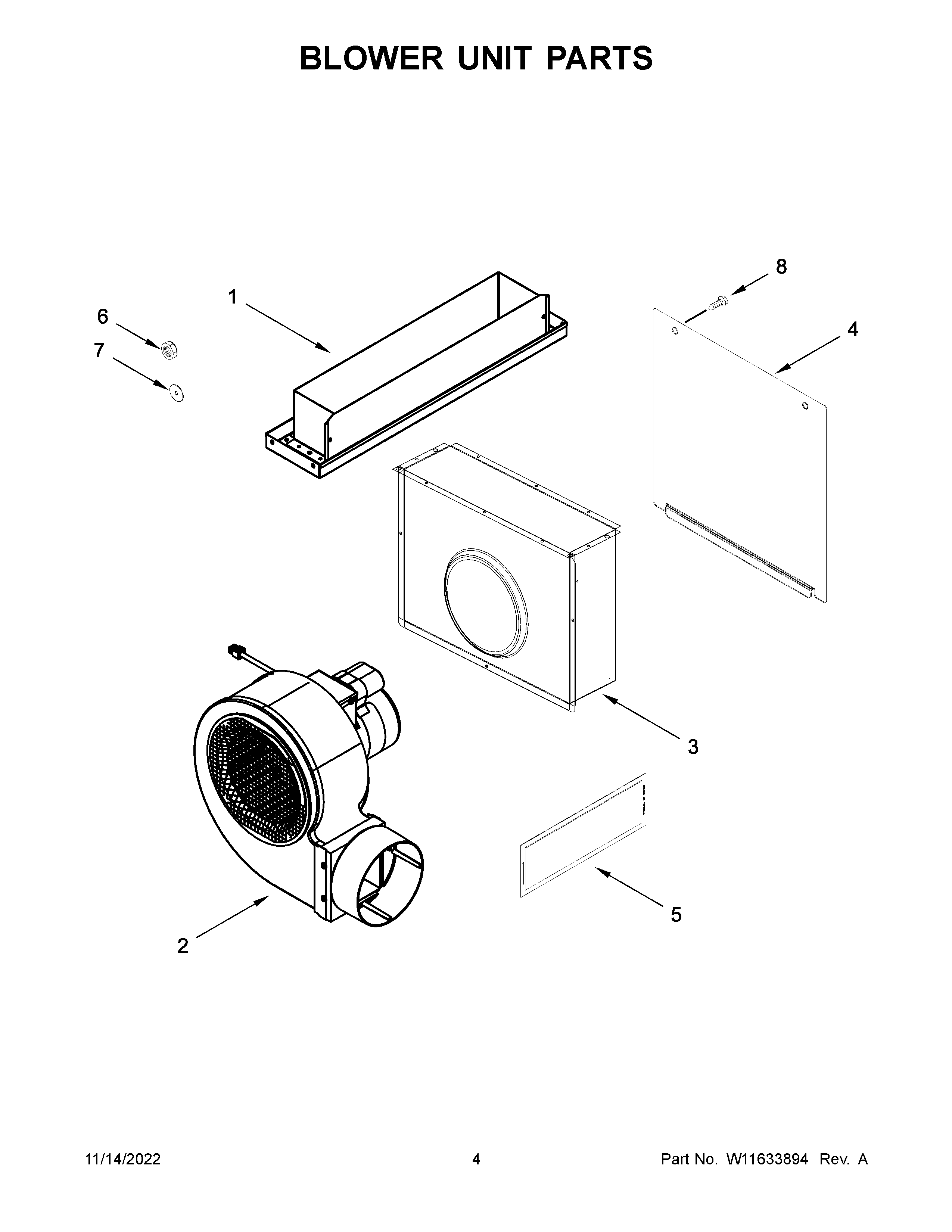

JGD3430GB05 03 – BLOWER UNIT PARTS

Written by

Products

Position	Product
1	W10836514 Whirlpool Air Plenum
2	W11083804 Whirlpool Blower Motor
3	W10837738 Whirlpool Air Plenum Assembly
4	W10837737 Whirlpool Access Cover
5	W10905834 Whirlpool Cooktop DownDraft Vent Grease Filter
6	NUT, MTG.
7	WASHER
8	WPY706189 Whirlpool Stove Screw
