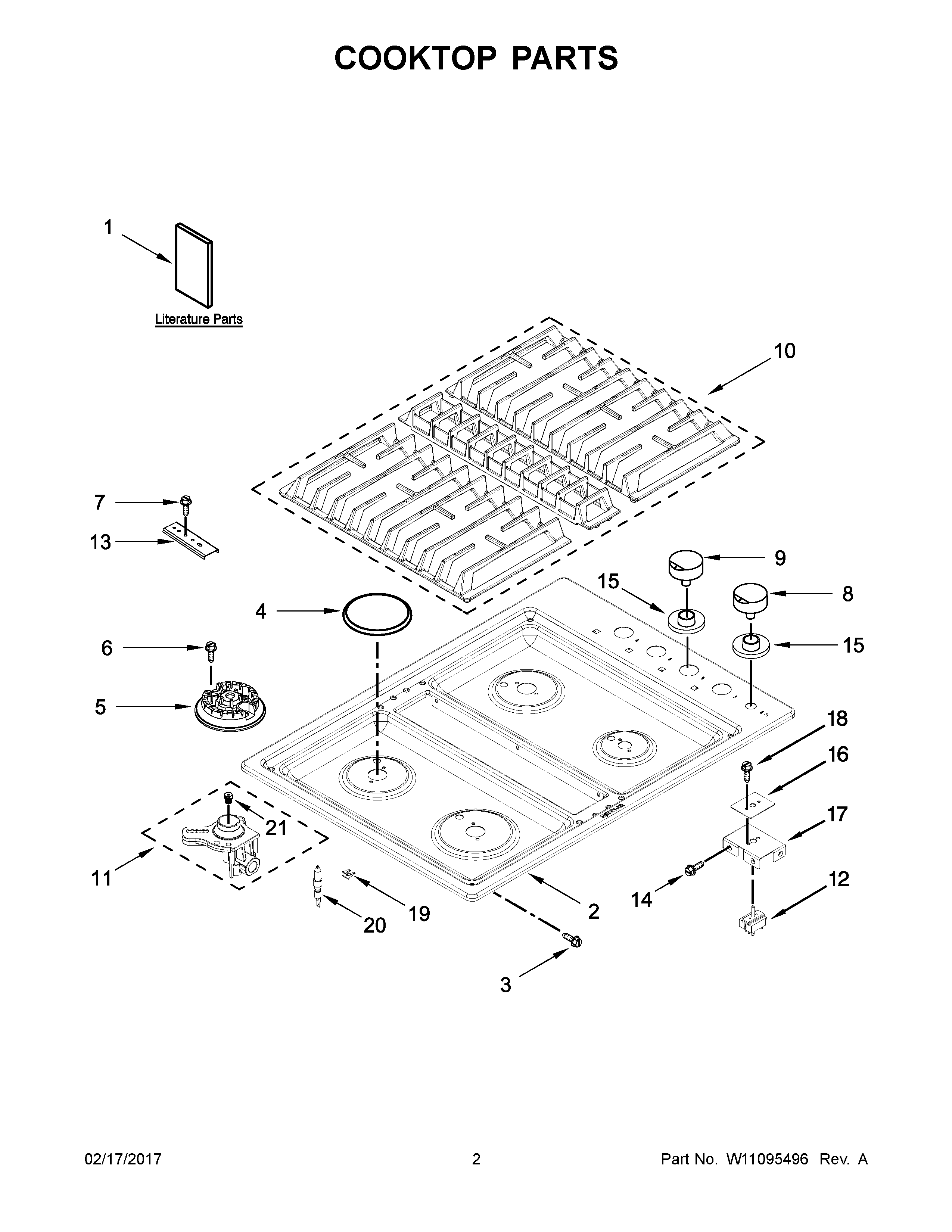

JGD3430GS00 02 – COOKTOP PARTS

Products

Position	Product
NI	RELIEF, STRAIN
NI	HARNESS, BLOWER
NI	HARNESS, JUMPER
NI	KIT, PLENUM SCREW
NI	MAY W10831977
NI	MAY W10183556
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W11022461
NI	MAY W10834700
1D	TIPS, SAFE COOKING (ENGLISH)
1E	TIPS, SAFE COOKING (FRENCH)
1A	MAY W10917791
1B	MAY W10848425
1C	INSTRUCTIONS, LP CONVERSION
1	MAY W10848427
2	MAY W10842292
2A	MAY W10842290
4	MAY W10910373
5A	MAY W10815354
5B	ASSEMBLY, BURNER (SR) (LEFT FRONT)
5	ASSEMBLY, BURNER (UR) (CENTER FRONT & RIGHT REAR)
6	MAY 7101P426- 60
7	MAY 3400093
8	MAY W10876700
8A	MAY W10876699
9	KNOB, CONTROL (BLACK)
9A	KNOB, CONTROL (STAINLESS)
10	MAY W10821820
11	HOLDER, ORIFICE (17K) (RIGHT REAR)
11C	HOLDER, ORIFICE (15K) (CENTER FRONT)
11B	HOLDER, ORIFICE (10K) (LEFT FRONT)
11A	MAY W10826751
12	MAY W10866564
13	MAY 4455917
14	MAY 7101P427-60
15A	MAY W10559494
15	MAY W10559486
16	GASKET, INFINITE SWITCH
17	MAY W10868745
18	SCREW
19	SPRING, ELECTRODE
20C	MAY W10862324
20A	MAY W10862326
20	MAY W10862325
20B	MAY W10862323
21A	ORIFICE (LEFT REAR)
21B	ORIFICE (LEFT FRONT)
21C	ORIFICE (CENTER FRONT)
21	ORIFICE (RIGHT REAR)
