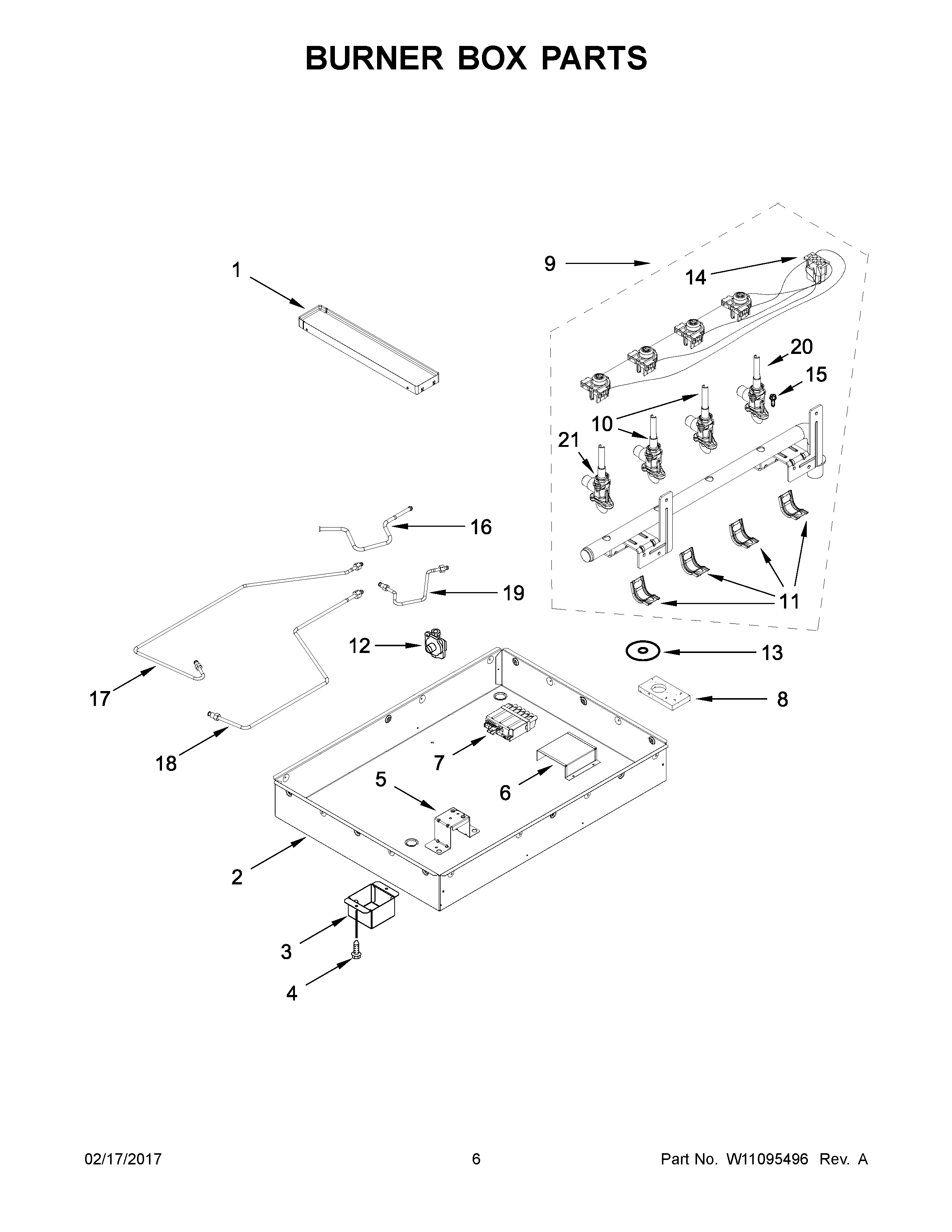

JGD3430GS00 04 – BURNER BOX PARTS

Products

Position	Product
1	TRAY, SPILL
2	LINER (NOT A SERVICEABLE PART)
3	COVER, BLOWER MOTOR HARNESS
4	MAY 7101P426- 60
5	MAY W10811211
6	MAY W10894861
7	MODULE, SPARK
8	MAY 7208P024-60
9	MAY W10907218
10	VALVE (LEFT FRONT & RIGHT REAR)
11	BRACKET, SADDLE VALVE
12	REGULATOR, PRESSURE
13	SEAL, SWITCH SHAFT
14	MAY W10859820
15	SCREW, VALVE
16	MAY W10826747
17	MAY W10826748
18	MAY W10826749
19	MAY W10826750
20	MAY W10907216
21	VALVE (RIGHT FRONT)
