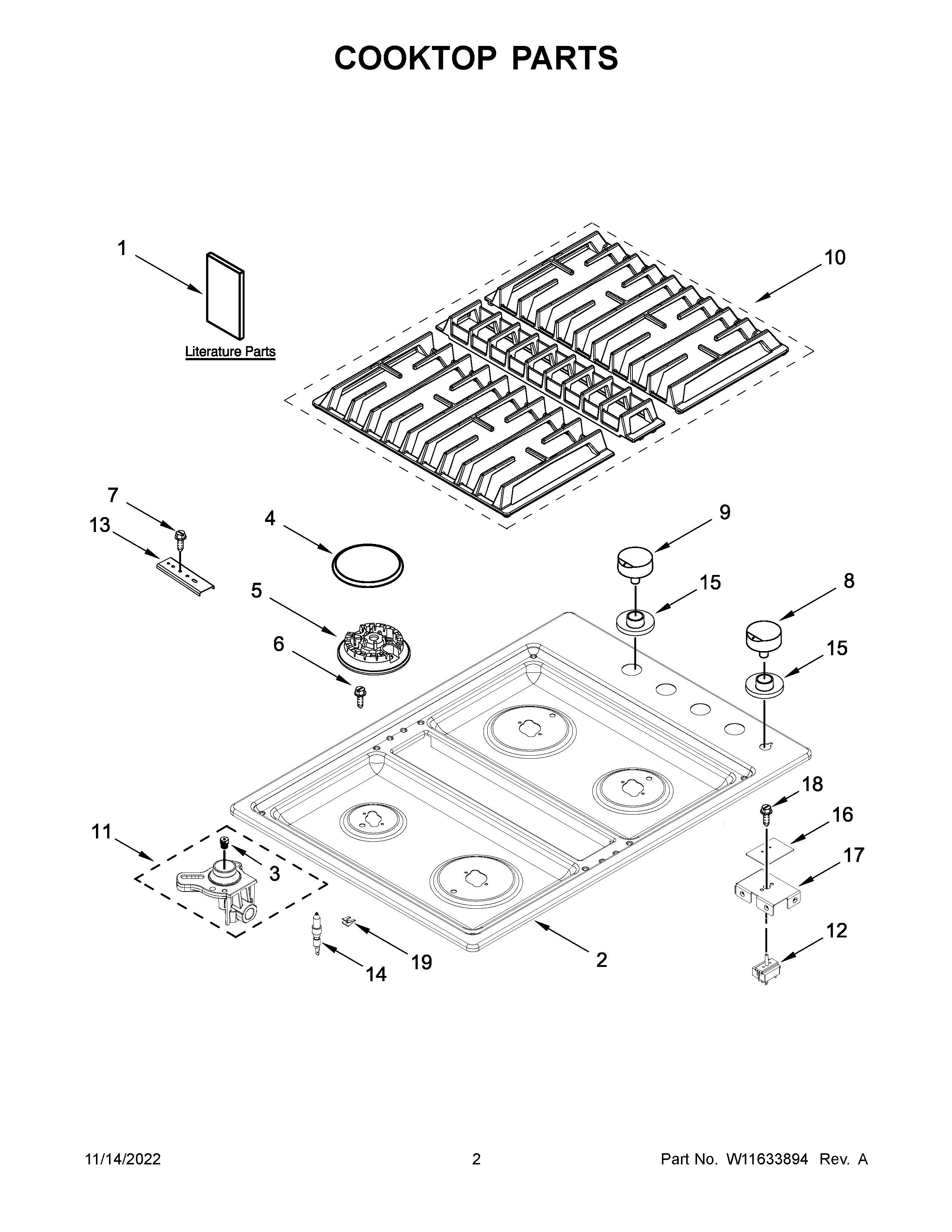

JGD3430GS05 02 – COOKTOP PARTS

JGD3430GS05 02 – COOKTOP PARTS

Written by

in

JGD3430GS05 02 – COOKTOP PARTS

Products

PositionProduct
NISCREW
NIW11190478 Whirlpool Wire Harness
NIW10909126 Whirlpool Screw
NIW10831977 Whirlpool Power Cord
NIW11465762 Whirlpool Wire Harness
NI8287106 Whirlpool Clip Assembly
NIHARNS-WIRE
NIW10132200 Whirlpool Strain Relief
NICABINET (NOT A SERVICEABLE PART)
NIW11083837 Whirlpool Conversion Kit
1AINSTALLATION INSTRUCTIONS
1USE AND CARE GUIDE
1BSHEET, TECH
2W11476216 Whirlpool Cooktop
2AW11476218 Whirlpool Cooktop
3AW11677633 Whirlpool Spud Orifice
3BW10907868 Whirlpool Spud Orifice
3CW10907866 Whirlpool Orifice Spud
3W10907865 Whirlpool Orifice Spud
4W11579391 Whirlpool Burner Cap
5AW11084066 Whirlpool Head Burner
5W11084065 Whirlpool Burner Head
5BW11084064 Whirlpool Burner Head
6W11241230 Whirlpool Screw
7WP3400093 Whirlpool Screw
8AW11084048 Whirlpool Knob
8W11084047 Whirlpool Knob
9W11620701 Whirlpool Knob
9AKNOB, CONTROL (STAINLESS)
10W11241674 Whirlpool Grate Kit
11AW10826751 Whirlpool Orifice Holder
11W10826752 Whirlpool Orifice Holder
11BW10826754 Whirlpool Orifice Holder
11CW10826753 Whirlpool Orifice Holder
12W11676792 Whirlpool Oven Switch
138186533 Whirlpool Hardware
14W11690138 Whirlpool Surface Igniter
14BW11684565 Whirlpool Surface Igniter
14CW10862324 Whirlpool Surface Igniter
14AW10862326 Whirlpool Surface Igniter
15W11544657 Whirlpool Grommet Assembly
15AWPW10559494 Whirlpool Grommet
16SEAL, DOWNDRAFT PAD
17W10868745 Whirlpool Mounting Bracket Assembly
18WPL 7101P30960
19W11684564 Whirlpool Clip Assembly
