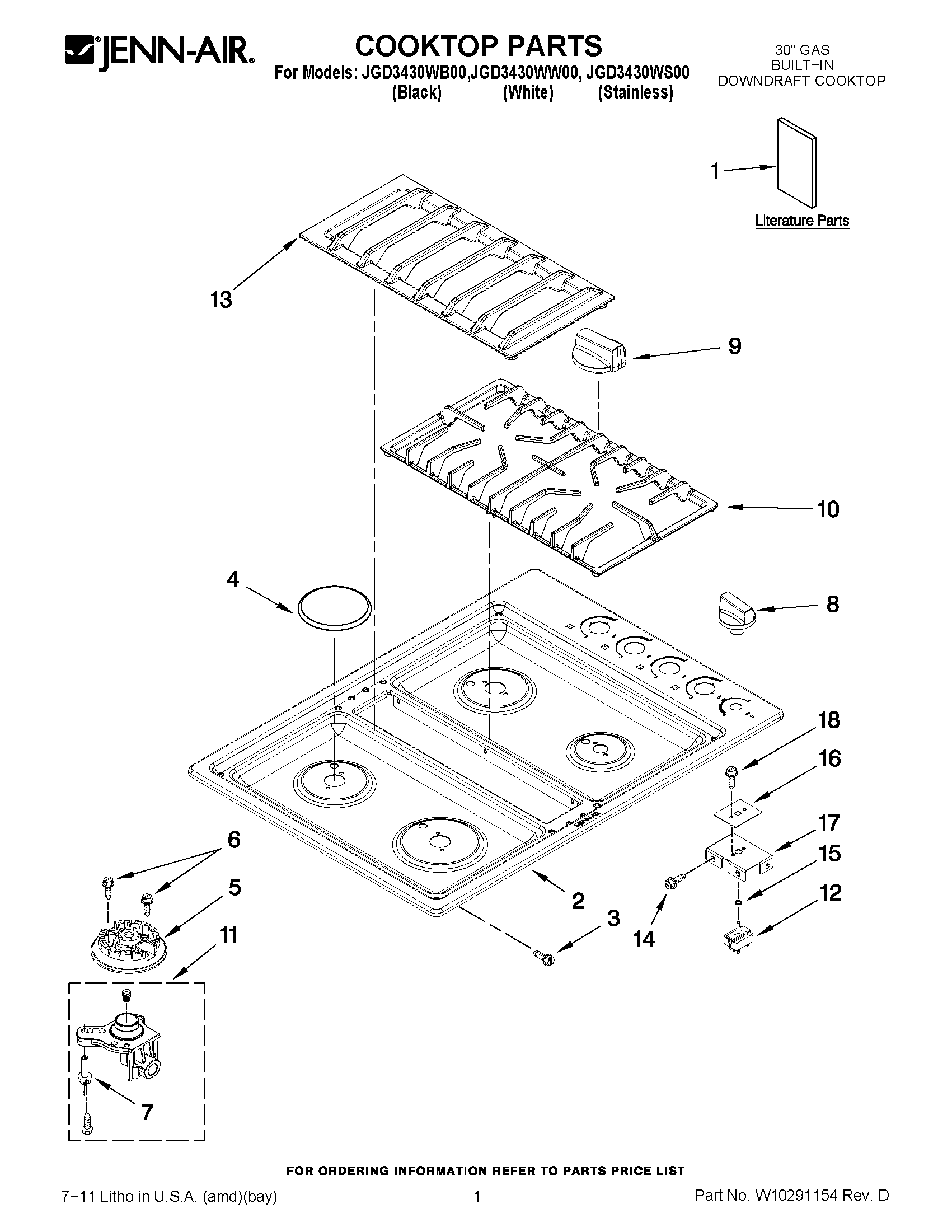

JGD3430WB00 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1MAY W10233478
1DIAGRAM, WIRING (ENGLISH)
1DIAGRAM, WIRING (FRENCH)
1INSTRUCTIONS, LP CONVERSION
1CARD, FLOW TESTER
1MAY W10197058
1TIPS, SAFE COOKING (FRENCH)
2MAY W10185532
2MAY W10185518
2MAY W10185520
4CAP, BURNER (WETSTONE (RIGHT FRONT))
4CAP, BURNER (WETSTONE (LEFT REAR & RIGHT REAR))
4CAP, BURNER (BLACK (RIGHT FRONT))
4CAP, BURNER (BLACK (LEFT FRONT))
4CAP, BURNER (BLACK (LEFT REAR & RIGHT REAR))
4CAP, BURNER (WETSTONE (LEFT FRONT))
5HEAD, BURNER (LR & RF)
5HEAD, BURNER (CTR)
5HEAD, BURNER (LF & RR)
6MAY 7101P426- 60
7IGNITOR
8KNOB, FAN (BLACK)
8KNOB, FAN (WHITE)
8KNOB, FAN (STAINLESS)
9MAY W10236134
9MAY W10236136
9MAY W10236135
10BURNER, GRATE (INCLUDES BUMPERS) (WETSTONE)
10BURNER, GRATE (INCLUDES BUMPERS) (BLACK)
11HOLDER, ORIFICE (LF, RR)
11HOLDER, ORIFICE (LR)
11MAY 7527P003-60
11HOLDER, ORIFICE (17K) (LEFT FRONT)
12SWITCH, BLOWER
13MAY W10204544
13GRILLE, DOWNDRAFT (INCLUDES
14MAY 7101P427-60
15Seal, Valve Shaft
16GASKET, INFINITE SWITCH
17MAY W10235925
18SCREW
