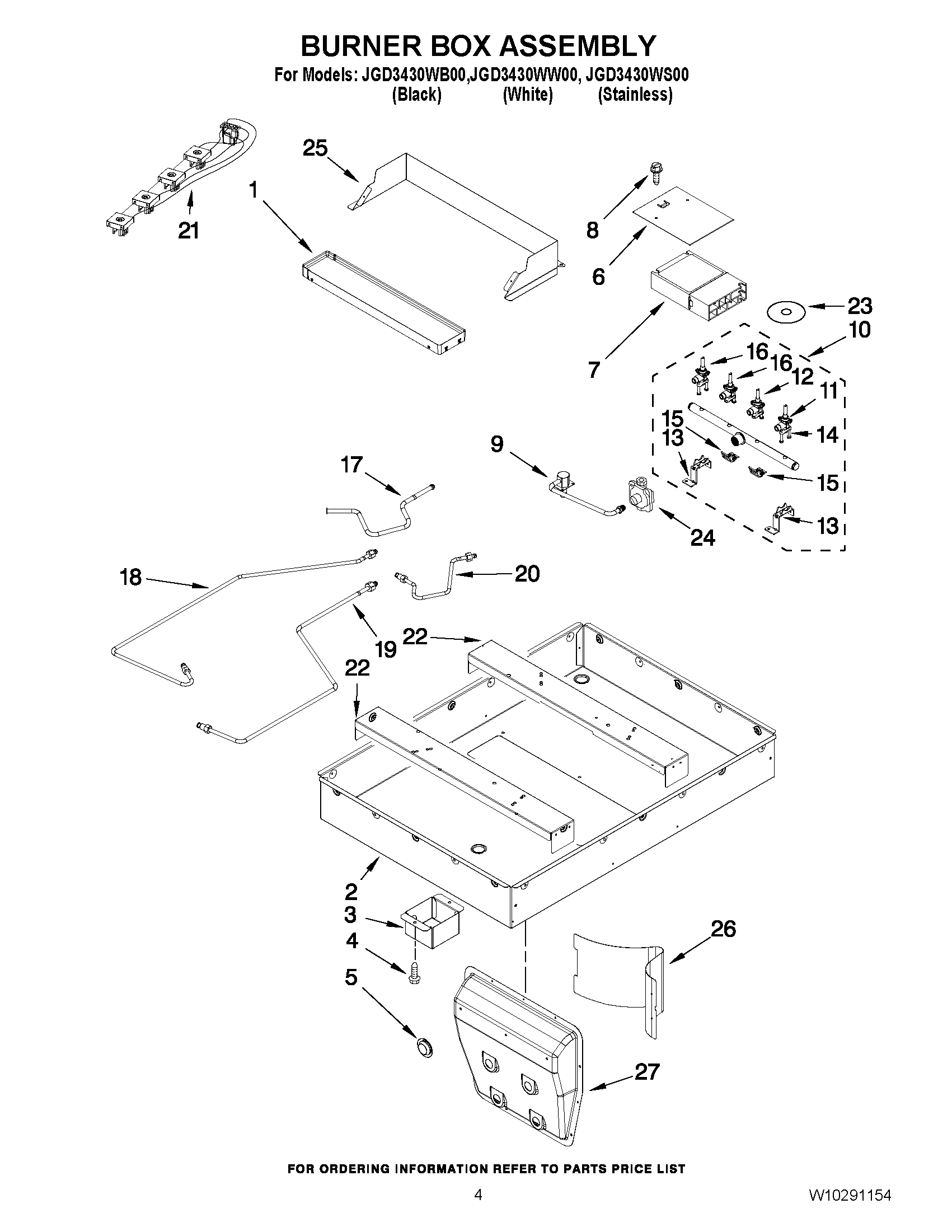

JGD3430WB00 03 – BURNER BOX ASSEMBLY

Products

Position	Product
1	TRAY, SPILL
2	MAY W10283964
3	COVER, BLOWER MOTOR HARNESS
5	PLUG, HOLE
6	COVER, SPARK
7	MAY 7431P057-60
8	MAY 7101P426- 60
9	MAY W10361754
10	MAY W10184142
11	VALVE, TOP 5K
12	VALVE, TOP
13	BRACKET, VALVE MOUNT
14	SCREW
15	BRACKET, VALVE
16	VALVE, GAS TOP
17	TUBING,GAS (RIGHT REAR)
18	TUBING,GAS (LEFT REAR)
19	MAY W10237283
20	TUBING,GAS (RIGHT FRONT)
21	SWITCH, IGNITOR
22	MAY W10205617
22	BRACKET, ORIFICE HOLDER (LEFT)
23	SEAL, SHAFT
24	REGULATOR,PRESSURE
25	BRACKET, BURNER BOX SHIELD (RIGHT)
25	BRACKET, BURNER BOX SHIELD (LEFT)
26	RAIL, PLENUM SUPPORT
27	BYPASS, PLENUM SIDE
