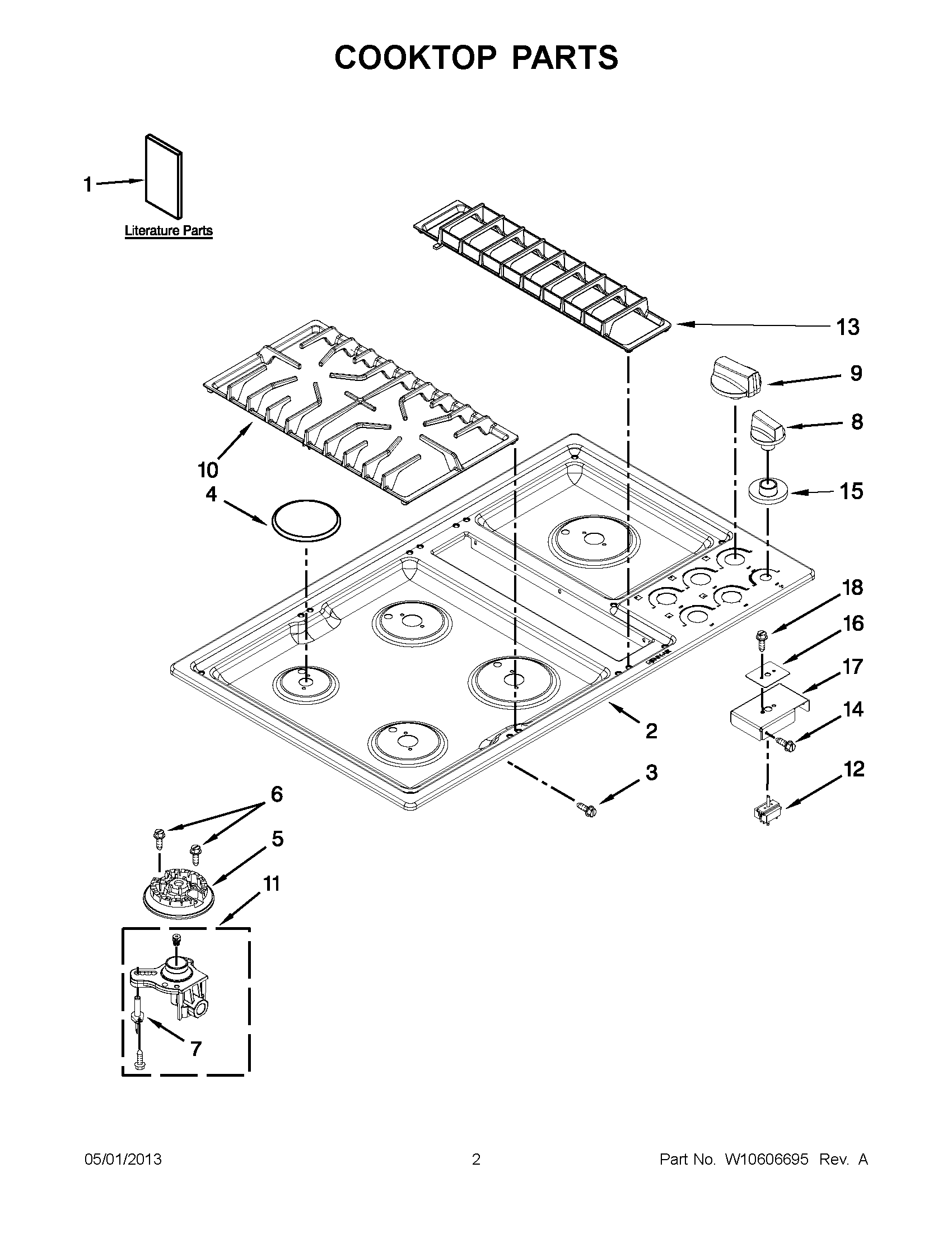

JGD3536BB00 01 – COOKTOP PARTSadmin2025-04-26T09:02:15+00:00JGD3536BB00 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | WIRING DIAGRAM (FRENCH) |
| 1 | GUIDE, USE & CARE |
| 1 | INSTRUCTIONS, LP CONVERSION |
| 1 | CARD, FLOW TESTER |
| 1 | INSTRUCTIONS, INSTALLATION |
| 1 | WIRING DIAGRAM (ENGLISH) |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 2 | MAY W10555856 |
| 2 | MAY W10555858 |
| 2 | MAY W10555857 |
| 4 | CAP, BURNER (WETSTONE (LEFT REAR & RIGHT REAR)) |
| 4 | CAP, BURNER (BLACK (LEFT FRONT)) |
| 4 | CAP, BURNER (BLACK (LEFT REAR & RIGHT REAR)) |
| 4 | CAP, BURNER (WETSTONE (RIGHT FRONT)) |
| 4 | CAP, BURNER (WETSTONE (LEFT FRONT)) |
| 4 | CAP, BURNER (BLACK (RIGHT FRONT)) |
| 5 | HEAD, BURNER (CTR) |
| 5 | HEAD, BURNER (LR & RF) |
| 5 | HEAD, BURNER (LF & RR) |
| 6 | MAY 7101P426- 60 |
| 7 | IGNITOR |
| 8 | KNOB, FAN (WHITE) |
| 8 | KNOB, FAN (BLACK) |
| 8 | KNOB, FAN (STAINLESS) |
| 9 | KNOB, CONTROL (BLACK) |
| 9 | KNOB, CONTROL (WHITE) |
| 9 | KNOB, CONTROL (STAINLESS) |
| 10 | MAY W10203091 |
| 10 | MAY W10203092 |
| 10 | MAY W10203094 |
| 10 | MAY W10204548 |
| 10 | MAY W10204546 |
| 10 | MAY W10204545 |
| 11 | HOLDER, ORIFICE (CTR) |
| 11 | HOLDER, ORIFICE (LF, RR) |
| 11 | HOLDER, ORIFICE (17K) (LEFT FRONT) |
| 11 | HOLDER, ORIFICE (LR) |
| 11 | MAY 7527P003-60 |
| 12 | SWITCH, BLOWER |
| 13 | MAY W10203093 |
| 13 | GRILLE, AIR (BLACK/STAINLESS) |
| 14 | MAY 7101P427-60 |
| 15 | MAY W10559485 |
| 15 | MAY W10559494 |
| 15 | MAY W10559486 |
| 16 | GASKET, INFINITE SWITCH |
| 17 | BRACKET, SW MOUNT |
| 18 | SCREW |
