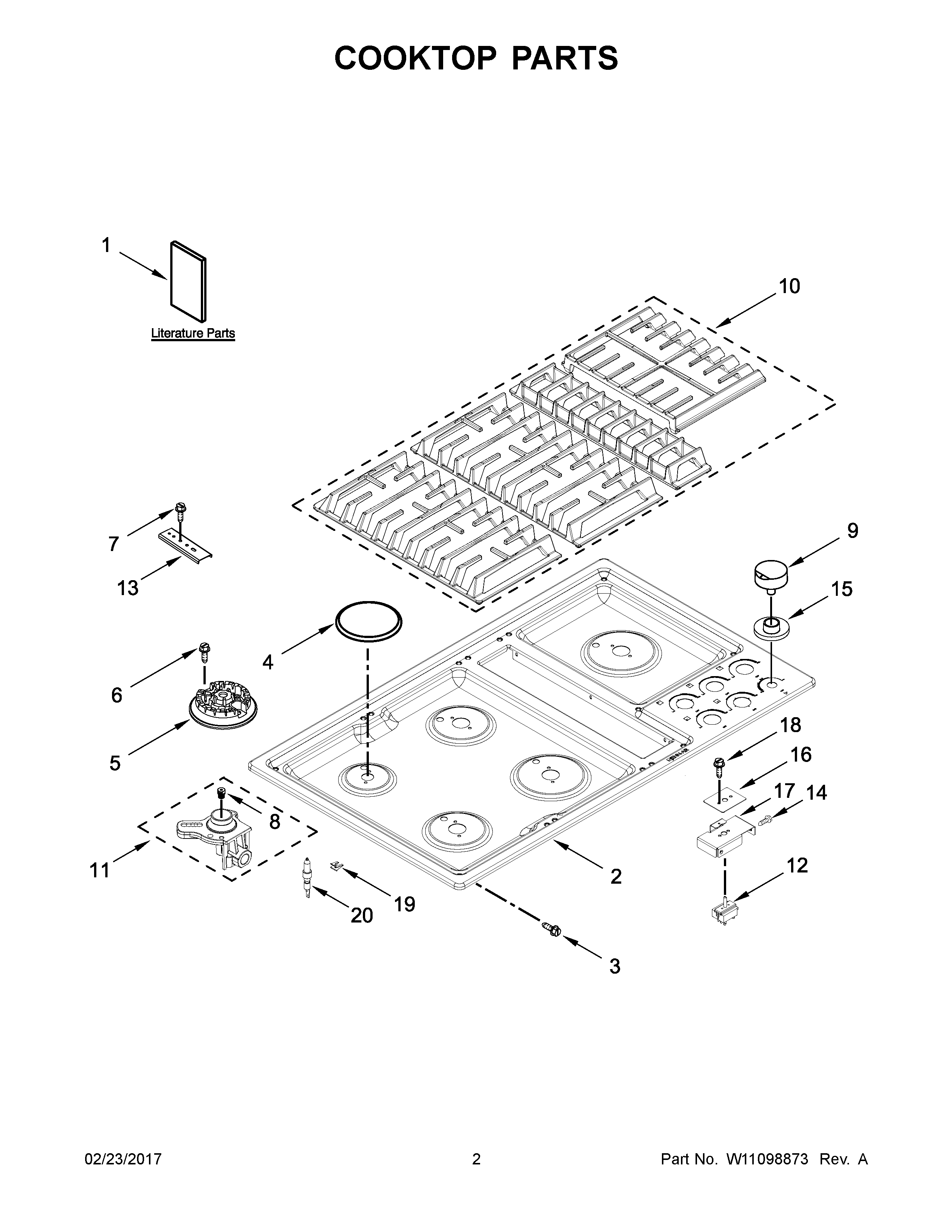

JGD3536GS00 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10831977
NI	RELIEF, STRAIN
NI	MAY W10834701
NI	MAY W10183556
NI	HARNESS, BLOWER
NI	HARNESS, JUMPER
NI	KIT, PLENUM SCREW
NI	MAY W11022463
1	MAY W10848427
1B	MAY W10848425
1C	INSTRUCTIONS, LP CONVERSION
1A	MAY W10917793
1D	TIPS, SAFE COOKING (ENGLISH)
1E	TIPS, SAFE COOKING (FRENCH)
2A	MAY W10842066
2	MAY W10842068
4	MAY W10910375
5	ASSEMBLY, BURNER (SR) (LEFT FRONT)
5B	ASSEMBLY, BURNER (UR) (CENTER FRONT & RIGHT REAR)
5A	MAY W10815354
5C	MAY W10815356
6	MAY 7101P426- 60
7	MAY 3400093
8A	ORIFICE (LEFT REAR)
8	ORIFICE (LEFT FRONT)
8B	ORIFICE (CENTER FRONT)
8C	MAY W10907867
8D	ORIFICE (RIGHT REAR)
9A	KNOB, CONTROL (STAINLESS)
9	KNOB, CONTROL (BLACK)
10	MAY W10821817
11	HOLDER, ORIFICE (10K) (LEFT FRONT)
11B	HOLDER, ORIFICE (15K) (CENTER FRONT)
11D	HOLDER, ORIFICE (17K) (RIGHT REAR)
11C	MAY W10827697
11A	MAY W10826751
12	MAY W10866564
13	MAY 4455917
14	MAY 7101P427-60
15	MAY W10559486
15A	MAY W10559494
16	GASKET, INFINITE SWITCH
17	MAY W10814795
18	SCREW
19	SPRING, ELECTRODE
20D	MAY W10876262
20C	MAY W10876261
20B	MAY W10876260
20A	MAY W10905489
20	MAY W10876259
