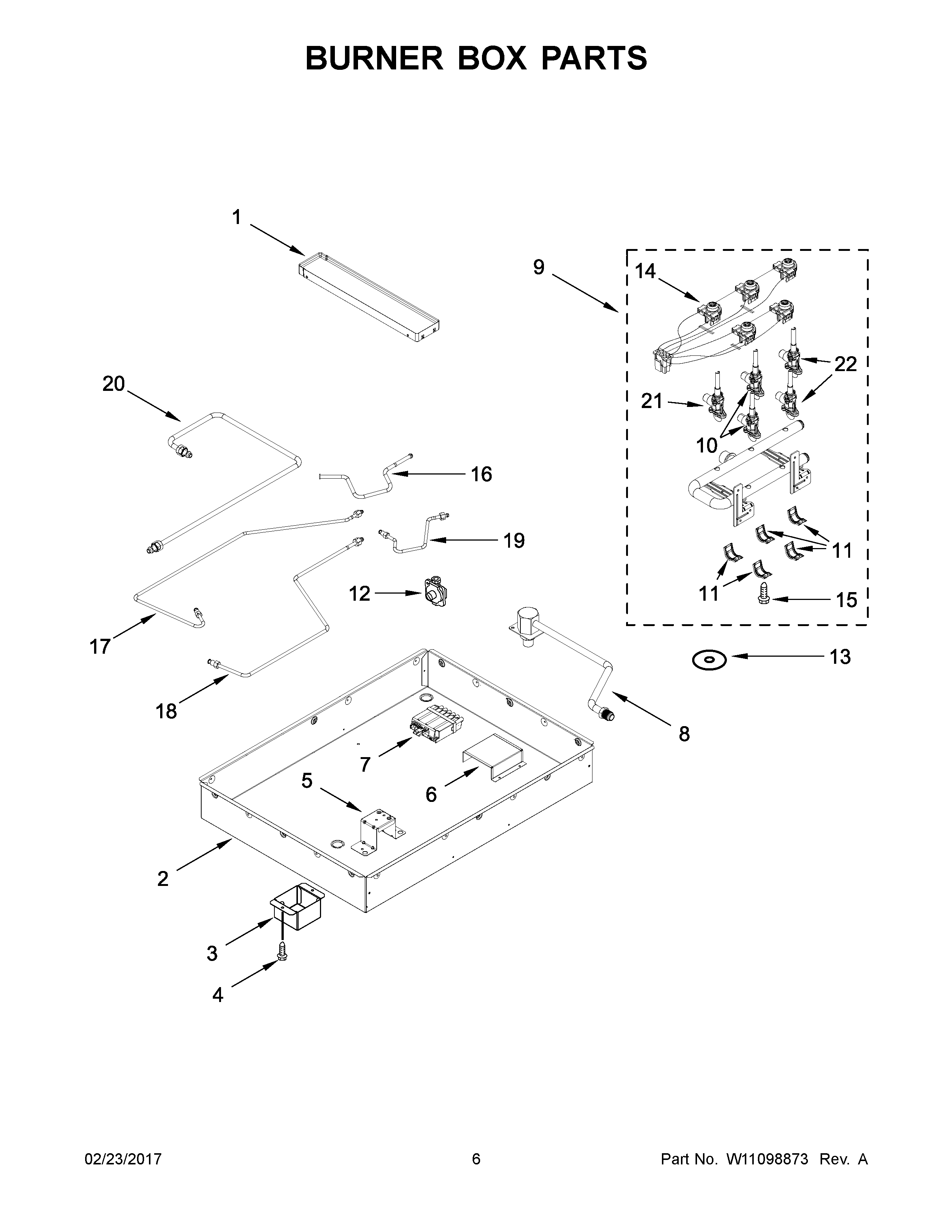

JGD3536GS00 04 – BURNER BOX PARTS

Products

Position	Product
1	TRAY, SPILL
2	LINER (NOT A SERVICEABLE PART)
3	COVER, BLOWER MOTOR HARNESS
4	MAY 7101P426- 60
5	MAY W10811211
6	MAY W10894861
7	MAY W10475150
8	MAY W10361756
9	MAY W10907219
10	MAY W10844472
11	BRACKET, SADDLE VALVE
12	REGULATOR, PRESSURE
13	SEAL, SWITCH SHAFT
14	MAY W10861397
15	SCREW, VALVE
16	MAY W10827689
17	MAY W10827690
18	MAY W10827691
19	MAY W10827692
20	MAY W10827693
21	MAY W10907217
22	MAY W10844471
