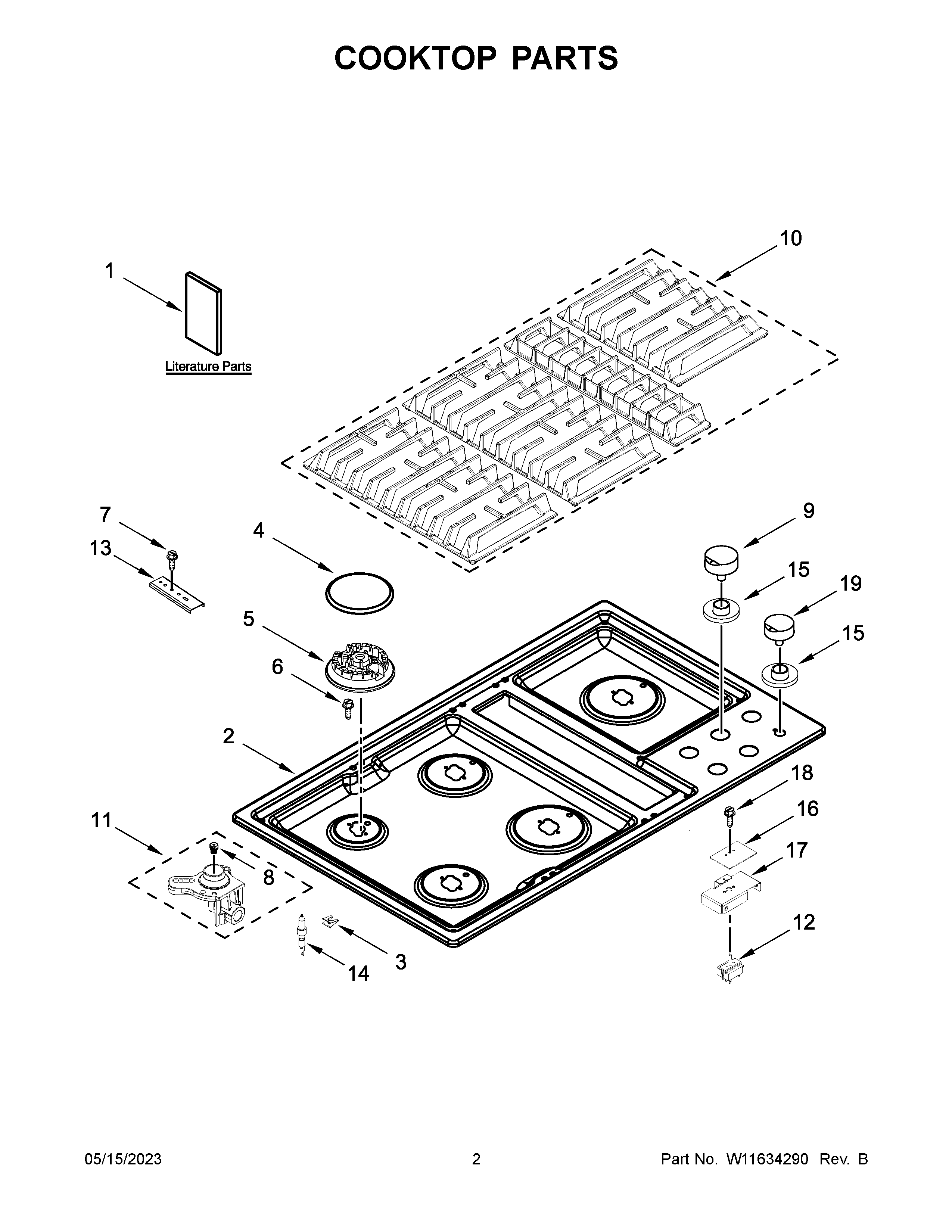

JGD3536GS05 02 – COOKTOP PARTS

JGD3536GS05 02 – COOKTOP PARTS

Written by

in

JGD3536GS05 02 – COOKTOP PARTS

Products

Position	Product
NI	W11465122 Whirlpool Wire Harness
NI	W11190478 Whirlpool Wire Harness
NI	W11465762 Whirlpool Wire Harness
NI	SCREW
NI	8287106 Whirlpool Clip Assembly
NI	W10831977 Whirlpool Power Cord
NI	W11083838 Whirlpool Conversion Kit
NI	W10909126 Whirlpool Screw
NI	W10132200 Whirlpool Strain Relief
NI	FOLLOWING PARTS NOT ILLUSTRATED
1	USE AND CARE GUIDE
1B	WIRING DIAGRAM
1A	INSTALLATION INSTRUCTIONS
2A	W11476220 Whirlpool Cooktop
2	W11476219 Whirlpool Cooktop
3	W11684564 Whirlpool Clip Assembly
4	W11379294 Whirlpool Surface Burner Cap
5	W11084064 Whirlpool Burner Head
5A	W11084066 Whirlpool Head Burner
5B	W11084065 Whirlpool Burner Head
5C	W11084067 Whirlpool Head Burner
6	W11241230 Whirlpool Screw
7	WP3400093 Whirlpool Screw
8B	W10907866 Whirlpool Orifice Spud
8C	W10907867 Whirlpool Orifice Spud
8A	W11677633 Whirlpool Spud Orifice
8D	W10907865 Whirlpool Orifice Spud
8	W10907868 Whirlpool Spud Orifice
9A	KNOB, CONTROL (STAINLESS)
9	W11620701 Whirlpool Knob
10	W11369702 Whirlpool Grate Kit Assembly
11A	W10826751 Whirlpool Orifice Holder
11B	W10826753 Whirlpool Orifice Holder
11C	W10827697 Whirlpool Holder Orifice
11D	W10826752 Whirlpool Orifice Holder
11	W10826754 Whirlpool Orifice Holder
12	W11676792 Whirlpool Oven Switch
13	8186533 Whirlpool Hardware
14	W11690659 Whirlpool Range Surface Igniter
14A	W10905489 Whirlpool Surface Igniter
14C	W10876261 Whirlpool Surface Igniter
14D	W10876262 Whirlpool Surface Igniter
14B	W11688146 Whirlpool Surface Igniter
15	W11544657 Whirlpool Grommet Assembly
15A	WPW10559494 Whirlpool Grommet
16	SEAL, DOWNDRAFT PAD
17	W10814795 Whirlpool Mounting Bracket
18	WPL 7101P30960
19	W10559476 Whirlpool Microwave Knob
19A	WPW10559475 Whirlpool Microwave Knob
