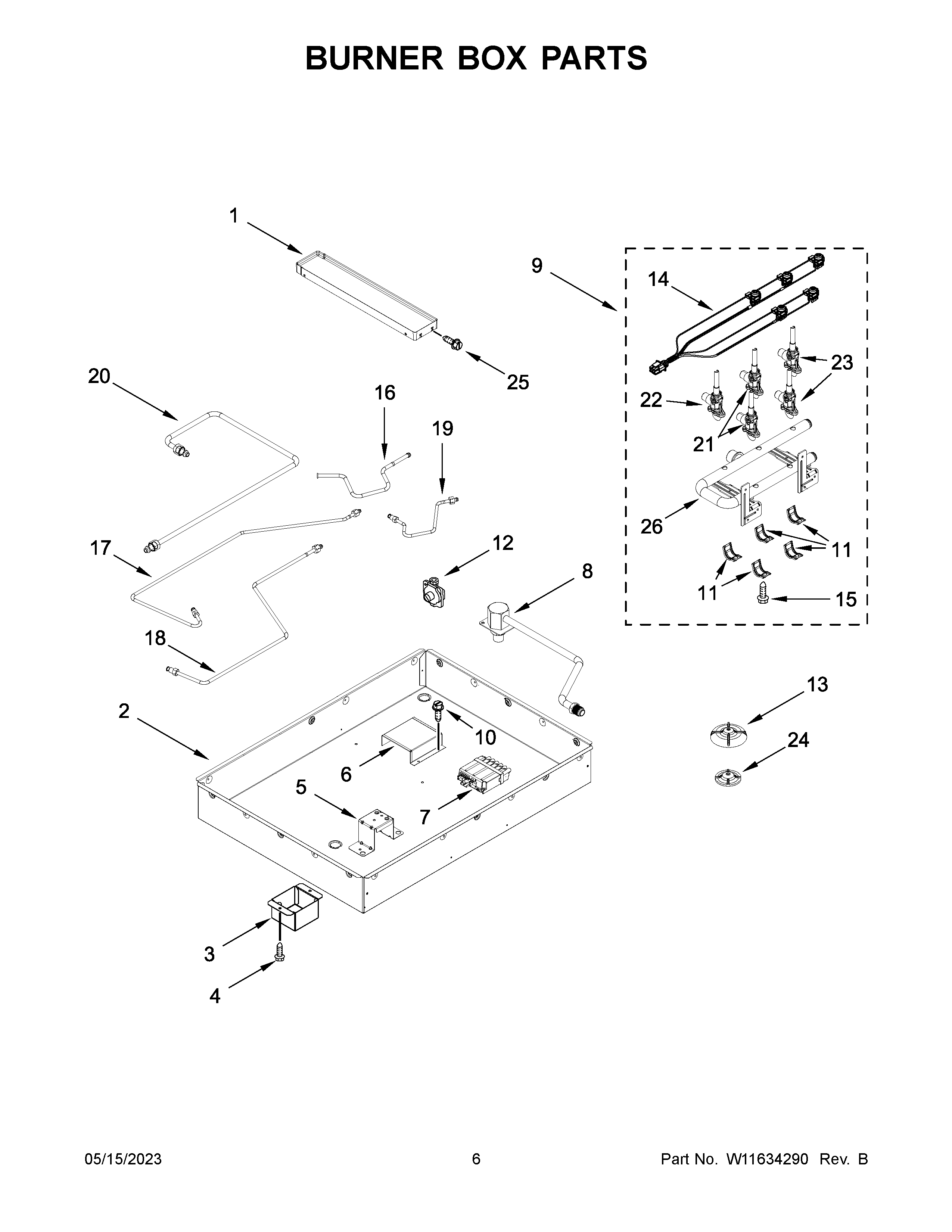

JGD3536GS05 04 – BURNER BOX PARTS

Products

Position	Product
1	W10235990 Whirlpool Drip Tray
2	BOX, BURNER (NOT SERVICED)
3	W10258697 Whirlpool Wire Cover
4	SCREW
5	BRACKET, HAT
6	W10894861 Whirlpool Heat Shield
7	WPW10475150 Whirlpool Spark Module
8	W10361756 Whirlpool Gas Tubing
9	W11512352 Whirlpool Manifold Assembly
10	SCREW (4)
11	W10949105 Whirlpool Mounting Bracket
12	W11087445 Whirlpool Pressure Regulator
13	W11507167 Whirlpool Switch Seal
14	HARNS-WIRE
15	W11577790 Whirlpool Screw Assembly
16	ASSEMBLY, TUBE (LEFT FRONT)
17	ASSEMBLY, TUBE (LEFT REAR)
18	ASSEMBLY, TUBE (CENTER FRONT)
19	ASSEMBLY, TUBE (CENTER REAR)
20	W11083765 Whirlpool Gas Tubing
21	W11511837 Whirlpool Burner Valve
22	VALVE (LEFT REAR)
23	VALVE-BRNR
24	SEAL, DOWNDRAFT SHAFT
25	WPY706189 Whirlpool Stove Screw
26	TUBE, MANIFOLD (NOT SERVICED)
