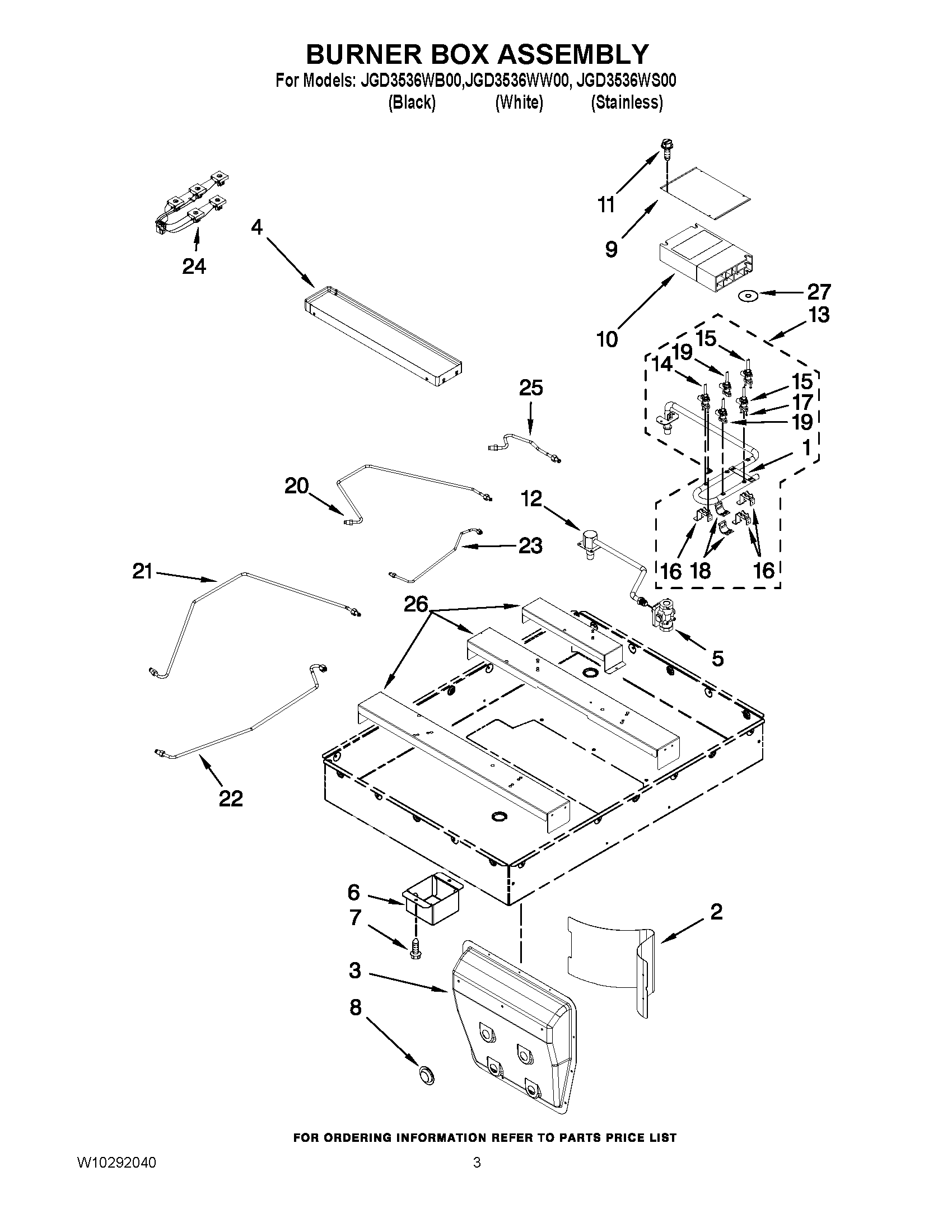

JGD3536WS00 02 – BURNER BOX ASSEMBLY

Products

PositionProduct
1MAY W10185534
2RAIL, PLENUM SUPPORT
3BYPASS, PLENUM SIDE
4TRAY, SPILL
5REGULATOR,PRESSURE
6COVER, BLOWER MOTOR HARNESS
8PLUG, HOLE
9MAY W10253448
10SPARK MODULE
11MAY 7101P426- 60
12MAY W10361756
13PIPE,MANIFOLD ASY.
14VALVE, TOP 5K
15VALVE, TOP
16BRACKET, VALVE MOUNT
17SCREW
18BRACKET, VALVE
19VALVE, GAS TOP
20TUBING,GAS(CR)
21TUBING,GAS(LR)
22TUBING,GAS(LF)
23TUBING,GAS(CF)
24MAY W10239017
25TUBING, GAS(R)
26MAY W10205615
26MAY W10205612
26MAY W10205613
27SEAL, SHAFT
