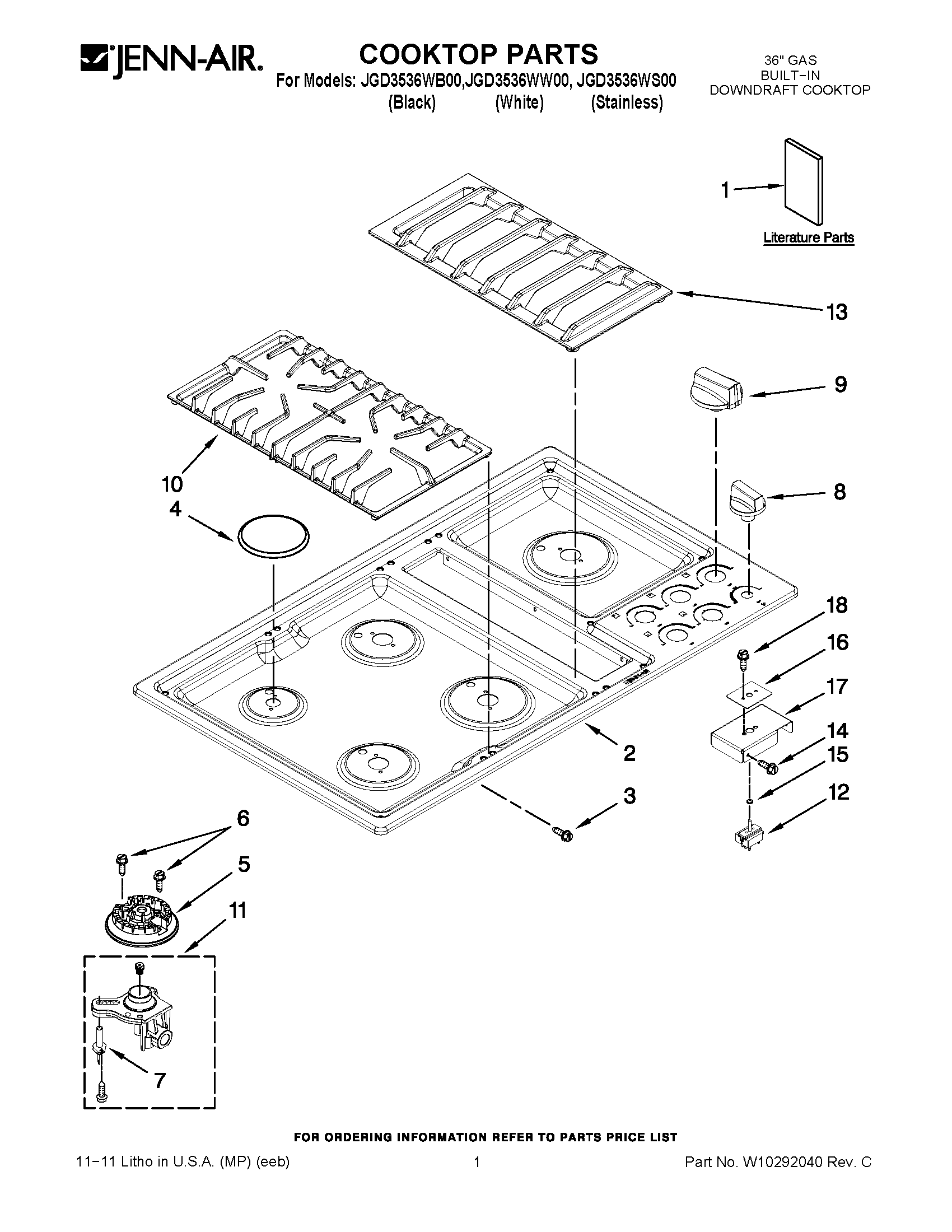

JGD3536WW00 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	WIRING DIAGRAM (FRENCH)
1	MAY W10233478
1	MAY W10197058
1	INSTRUCTIONS, LP CONVERSION
1	CARD, FLOW TESTER
1	WIRING DIAGRAM (ENGLISH)
1	TIPS, SAFE COOKING (FRENCH)
2	MAY W10303312
2	MAY W10303323
2	MAY W10303324
4	CAP, BURNER (WETSTONE (LEFT REAR & RIGHT REAR))
4	CAP, BURNER (WETSTONE (RIGHT FRONT))
4	CAP, BURNER (BLACK (LEFT FRONT))
4	CAP, BURNER (BLACK (LEFT REAR & RIGHT REAR))
4	CAP, BURNER (BLACK (RIGHT FRONT))
4	CAP, BURNER (WETSTONE (LEFT FRONT))
5	HEAD, BURNER (LF & RR)
5	HEAD, BURNER (CTR)
5	HEAD, BURNER (LR & RF)
6	SCREW
7	IGNITOR
8	KNOB, FAN (BLACK)
8	KNOB, FAN (STAINLESS)
8	KNOB, FAN (WHITE)
9	MAY W10236136
9	MAY W10236135
9	MAY W10236134
10	MAY W10204548
10	MAY W10204546
10	MAY W10203091
10	MAY W10203092
10	MAY W10203094
10	MAY W10204545
11	MAY 7527P003-60
11	HOLDER, ORIFICE (CTR)
11	HOLDER, ORIFICE (LF, RR)
11	HOLDER, ORIFICE (LR)
11	HOLDER, ORIFICE (17K) (LEFT FRONT)
12	SWITCH, BLOWER
13	GRILLE, AIR (BLACK/STAINLESS)
13	MAY W10203093
14	MAY 7101P427-60
15	Seal, Valve Shaft
16	GASKET, INFINITE SWITCH
17	BRACKET, SW MOUNT
18	SCREW
