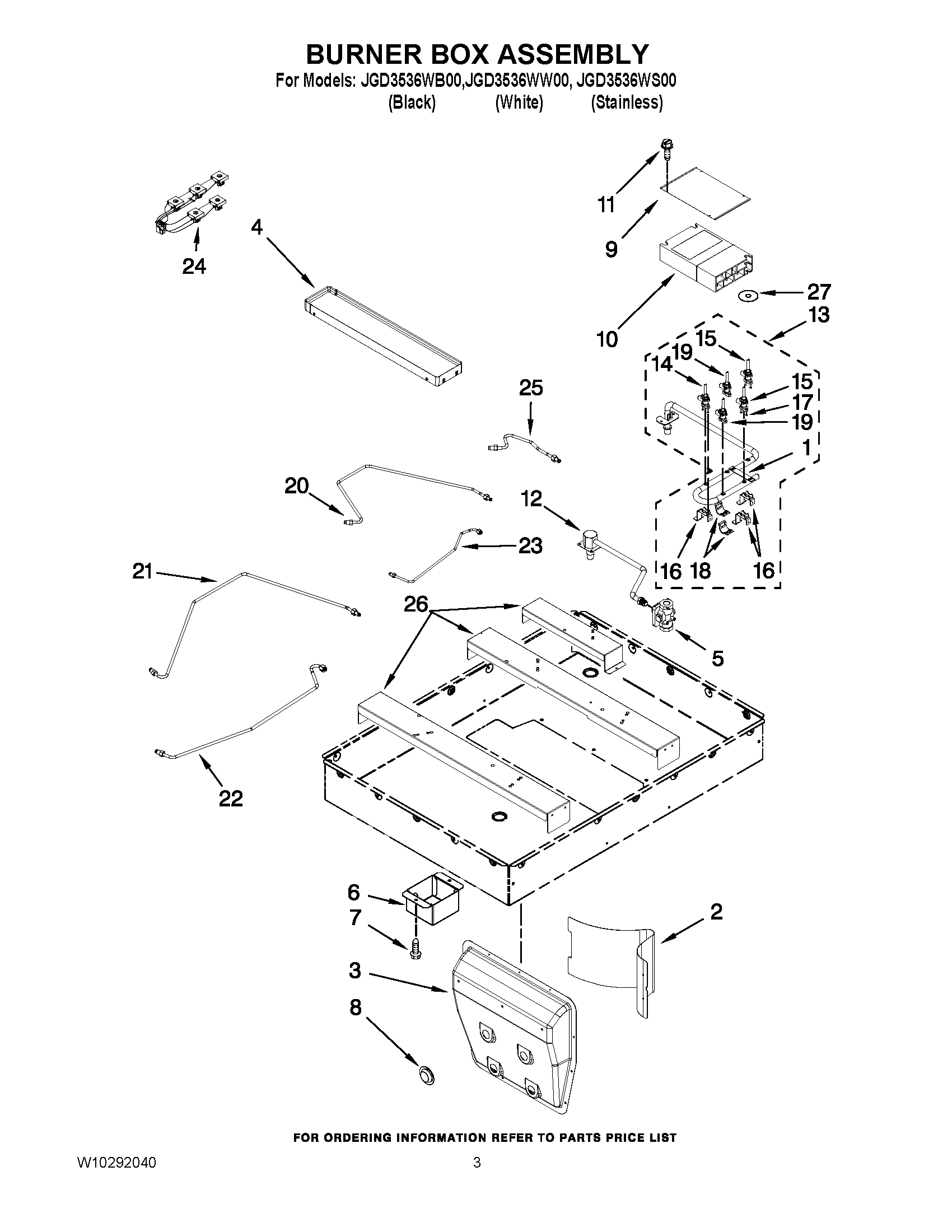

JGD3536WW00 02 – BURNER BOX ASSEMBLYadmin2025-04-26T09:03:08+00:00JGD3536WW00 02 – BURNER BOX ASSEMBLY
Products
| Position | Product |
|---|
| 1 | MAY W10185534 |
| 2 | RAIL, PLENUM SUPPORT |
| 3 | BYPASS, PLENUM SIDE |
| 4 | TRAY, SPILL |
| 5 | REGULATOR,PRESSURE |
| 6 | COVER, BLOWER MOTOR HARNESS |
| 8 | PLUG, HOLE |
| 9 | MAY W10253448 |
| 10 | SPARK MODULE |
| 11 | MAY 7101P426- 60 |
| 12 | MAY W10361756 |
| 13 | PIPE,MANIFOLD ASY. |
| 14 | VALVE, TOP 5K |
| 15 | VALVE, TOP |
| 16 | BRACKET, VALVE MOUNT |
| 17 | SCREW |
| 18 | BRACKET, VALVE |
| 19 | VALVE, GAS TOP |
| 20 | TUBING,GAS(CR) |
| 21 | TUBING,GAS(LR) |
| 22 | TUBING,GAS(LF) |
| 23 | TUBING,GAS(CF) |
| 24 | MAY W10239017 |
| 25 | TUBING, GAS(R) |
| 26 | MAY W10205615 |
| 26 | MAY W10205612 |
| 26 | MAY W10205613 |
| 27 | SEAL, SHAFT |
