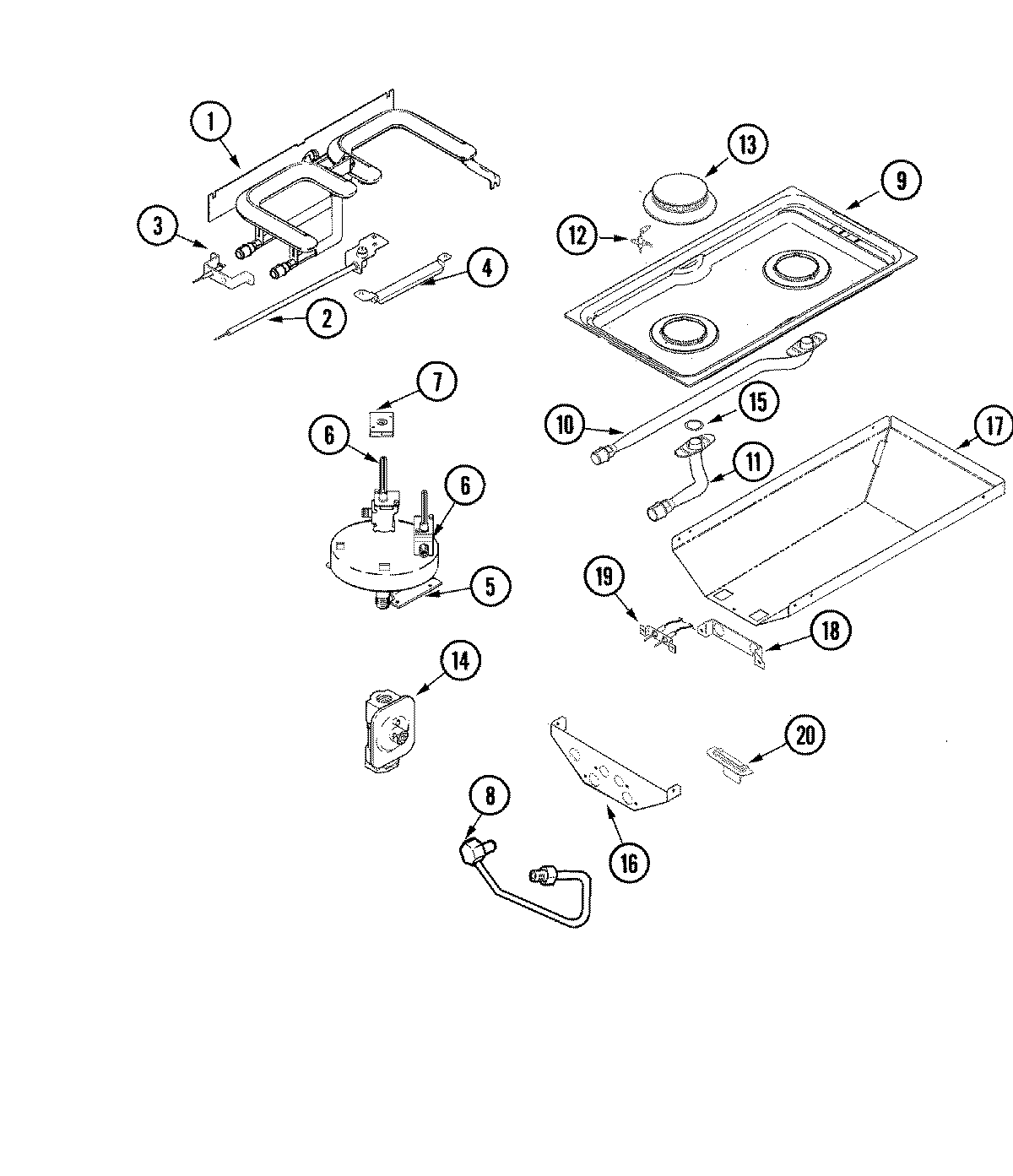

JGD8130ADB 03 – GAS CONTROLS

Products

PositionProduct
1WP74006070 Whirlpool Burner Grille
2WP74006072 Whirlpool Spark Electrode
3WP74006073 Whirlpool Oven Igniter
4MAY 74006071
5MAY 74006155
6WP74006156 Whirlpool Top Valve
6WPY04100188 Whirlpool Burner Valve
7WP74006955 Whirlpool Voltage Adjust Switch
7WP74006956 Whirlpool Switch VA
8MAY 74006178
8MAY Y704947
8MAY 74006176
87506P261-60 Whirlpool Venturi
87506P263-60 Whirlpool Venturi
9WP2001F175-09 Whirlpool Cooktop
10WP7538P009-60 Whirlpool Venturi
10WP59002061 Whirlpool Microwave Screw
11WP7538P008-60 Whirlpool Burner Venturi
1274004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
13WP3403M075-10 Whirlpool Burner Head
14W11106948 Whirlpool Pressure Regulator
15MAY 74005893
16MAY 74005887
16MAY 74006935
17MAY 74005888
18MAY 74005889
18SCREW
19TERMINAL BLOCK
20MAY 74006934
21MAY 74006953
21MAY 74006179
2174006048 Whirlpool Dishwasher LP Orifice Kit (4 Burner)
23NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
