JGD8130ADB 04 – TOP ASSEMBLY

JGD8130ADB 04 – TOP ASSEMBLY

Written by

in

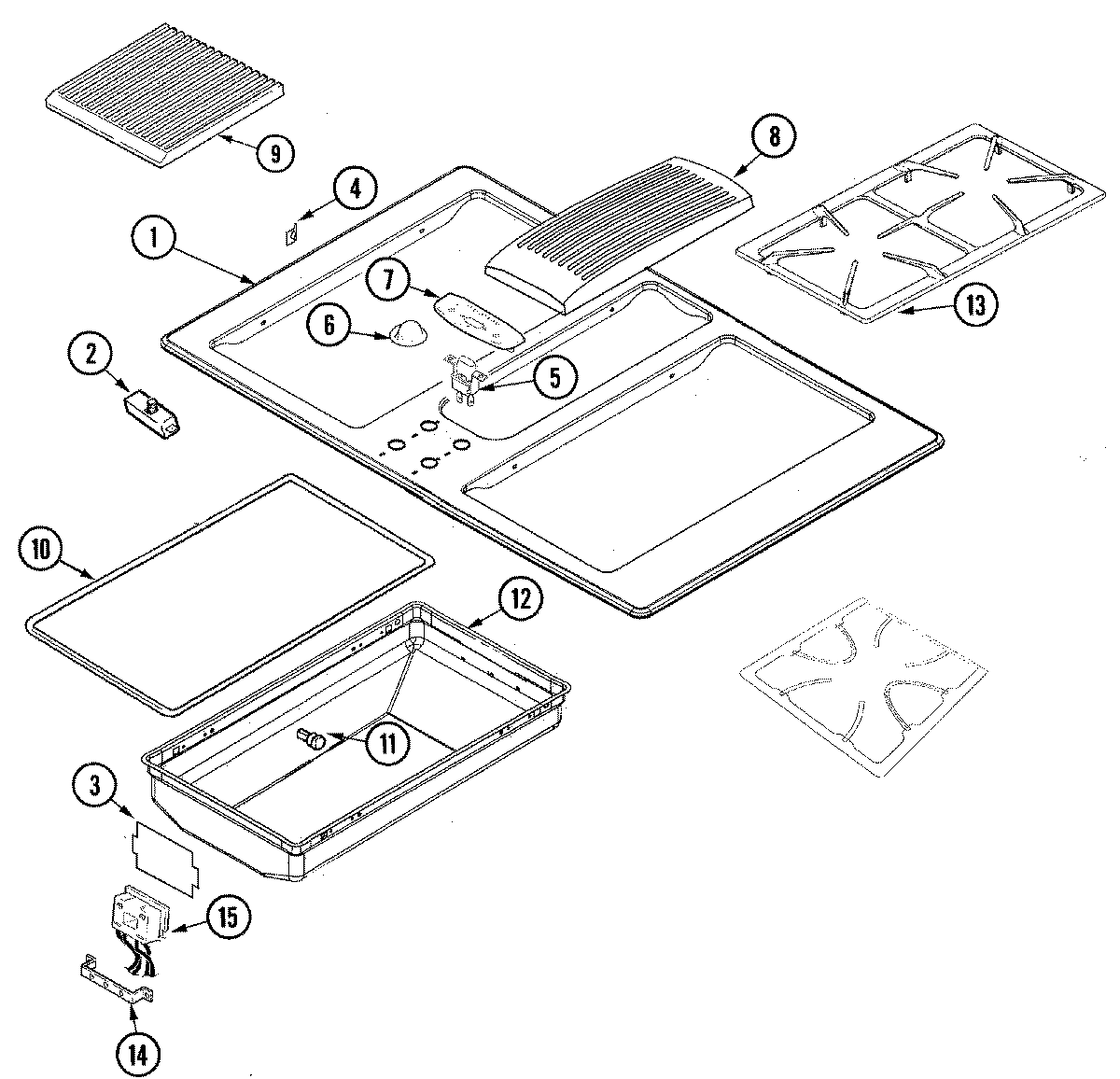

JGD8130ADB 04 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74005870
2MAY 74006890
2MAY 74006100
2MAY 74006095
2WP7450P012-60 Whirlpool Burner Top
3MAY 74005866
4W10828565 Whirlpool Screw
4MAY Y700503
5MAY 71001564
5MAY 7101P290-60
6WP7733P314-60 Whirlpool Knob
7W10341820 Whirlpool Fan Switch
8MAY 74005794
9MAY 71003267
10MAY Y704979
1171001764 Whirlpool Locator PIN
11MAY Y704553
12MAY 74006089
12MAY 74006090
13814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
13WP7518P483-60 Whirlpool Burner Grate
14MAY 74006093
15MAY 74006153
17USE & CARE GUIDE
17MAY 16008409
17MAY 74005528
