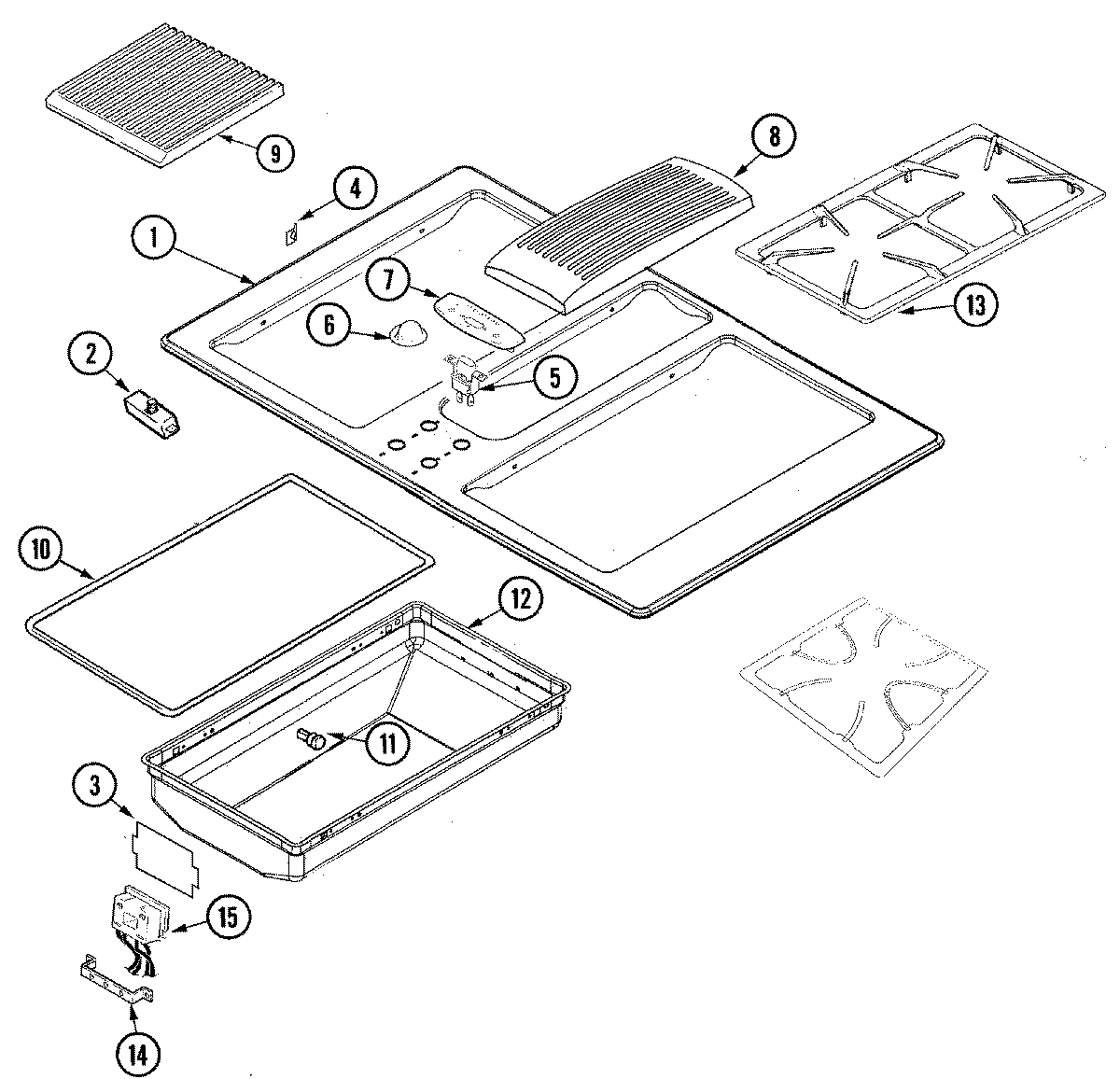

JGD8130ADW 04 – TOP ASSEMBLY

Products

PositionProduct
1MAY 74005869
2MAY 74006100
2MAY 74006890
2MAY 74006095
2WP7450P012-60 Whirlpool Burner Top
3MAY 74005866
4W10828565 Whirlpool Screw
4MAY Y700503
5MAY 71001563
5MAY 7101P290-60
6W11233071 Whirlpool Knob Valve White
7MAY 74006146
8MAY 74005793
9MAY 71003267
10MAY Y704979
1171001764 Whirlpool Locator PIN
11MAY Y704553
12MAY 74006089
12MAY 74006090
13814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
13MAY 74005899
14MAY 74006093
15MAY 74006153
17USE & CARE GUIDE
17MAY 16008409
17MAY 74005528
