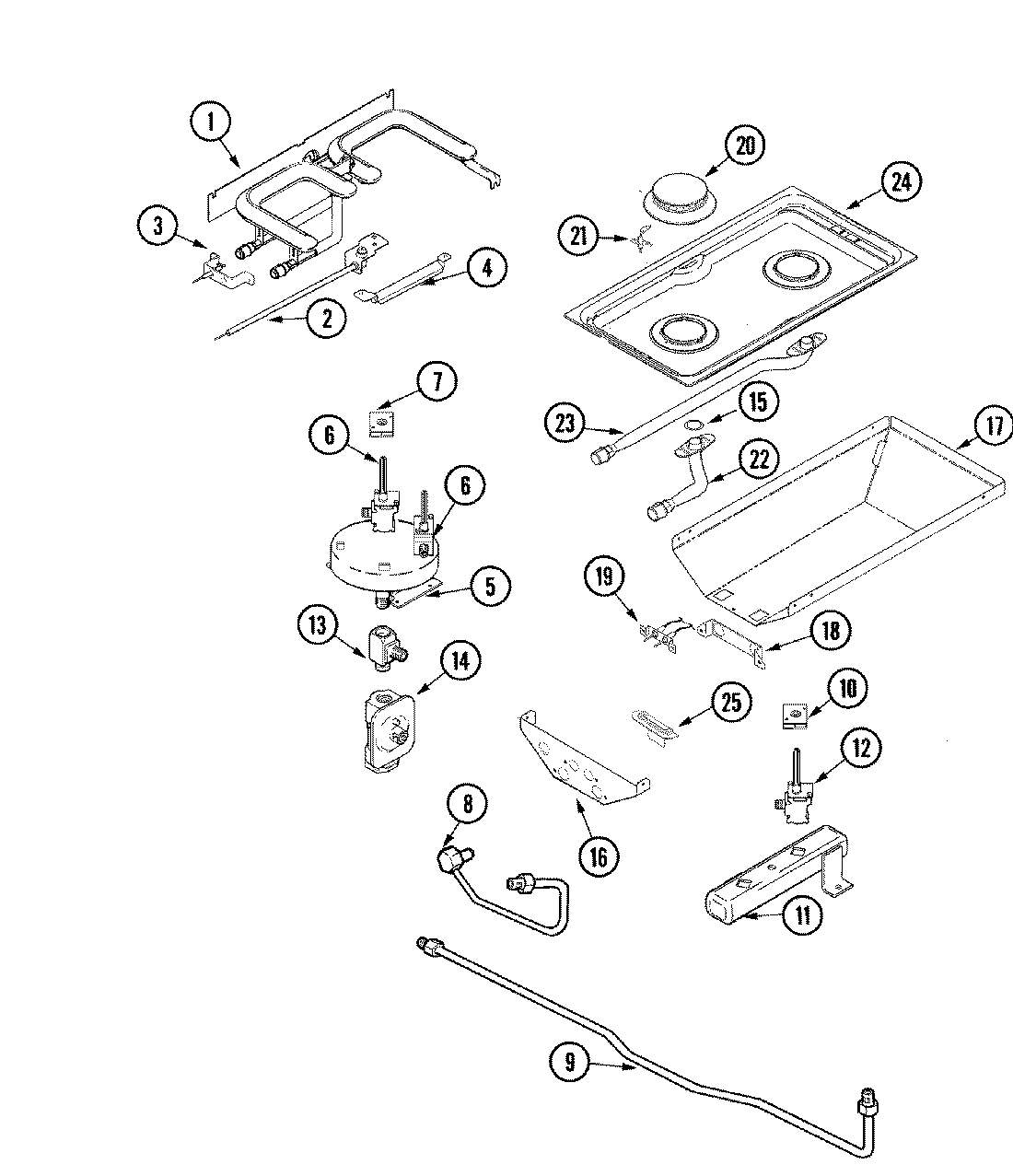

JGD8345ADB 03 – GAS CONTROLS

Products

Position	Product
1	WP74006070 Whirlpool Burner Grille
2	WP74006072 Whirlpool Spark Electrode
3	WP74006073 Whirlpool Oven Igniter
4	MAY 74006071
5	MAY 74006155
6	WPY04100188 Whirlpool Burner Valve
6	WP74006156 Whirlpool Top Valve
7	WP74006956 Whirlpool Switch VA
8	MAY 74006164
8	MAY 74006159
8	MAY 74006160
8	MAY 74006161
8	MAY 74006162
8	MAY 74006165
9	MAY 74006163
10	WP74006955 Whirlpool Voltage Adjust Switch
11	MAY 74006167
12	WP7502P384-60 Whirlpool Burner Valve
12	MAY 71003231
13	MAY Y04100789
14	W11106948 Whirlpool Pressure Regulator
15	MAY 74005893
16	MAY 74006935
16	MAY 74005887
17	MAY 74005888
18	MAY Y700725
18	MAY 74005889
19	TERMINAL BLOCK
20	WP3403M075-10 Whirlpool Burner Head
21	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
22	WP7538P008-60 Whirlpool Burner Venturi
23	WP7538P009-60 Whirlpool Venturi
24	WP2001F175-09 Whirlpool Cooktop
24	WP59002061 Whirlpool Microwave Screw
25	MAY 74006934
26	5170P922-60 Whirlpool Wire Harness
26	MAY 74006166
26	74006049 Whirlpool Dishwasher LP Orifice Kit (6 Burner)
