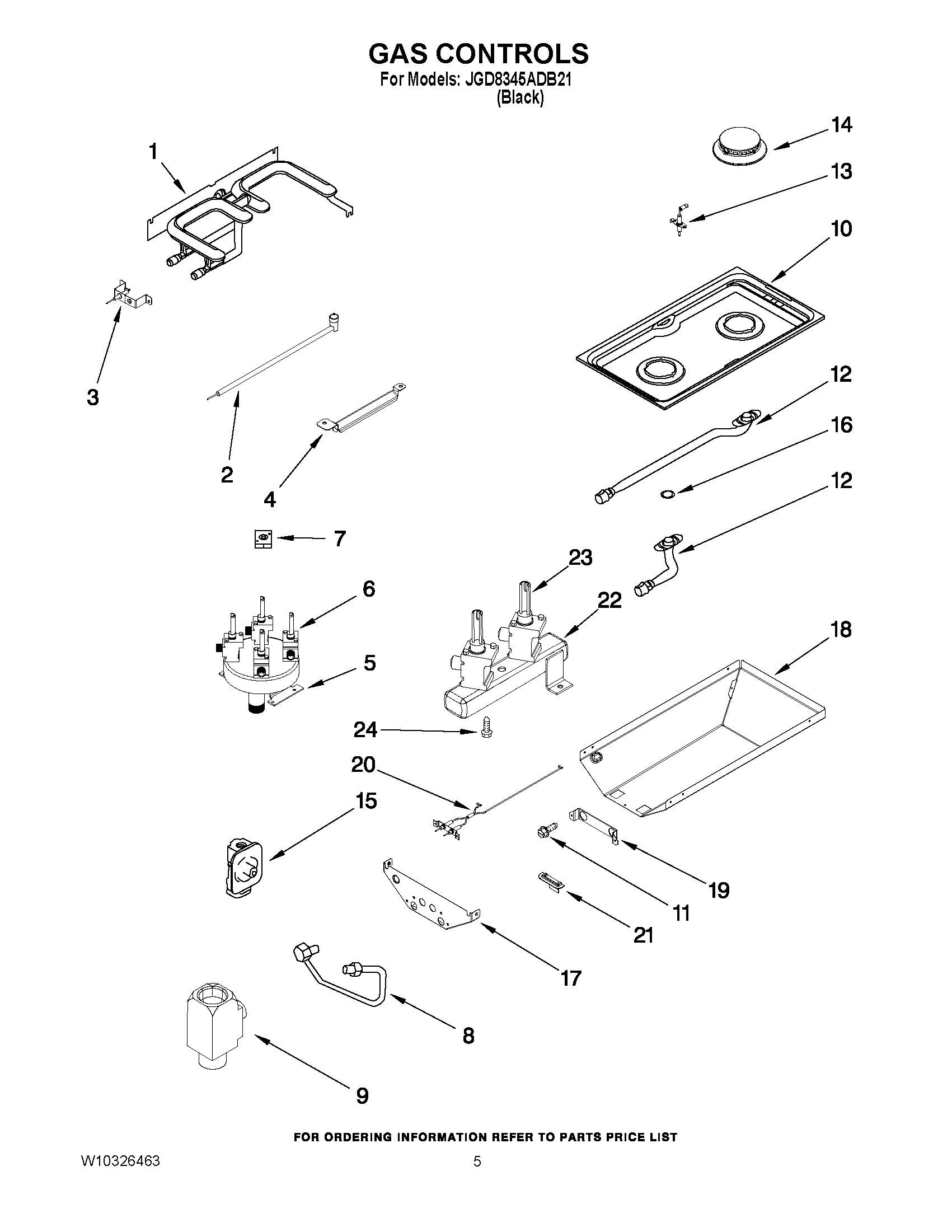

JGD8345ADB21 04 – GAS CONTROLS

Products

Position	Product
NI	MAY 5700A881-60
1	E-BURNER, GRILL
2	IGNITOR, E-BURNER
3	MAY 7432P116-60
4	MAY 3604F337-50
5	MAY 7513P489-60
6	MAY 7502P372-60
6	VALVE, TOP BURNER (LEFT)
7	MAY 7403P691-60
7	MAY 7403P692-60
8	TUBE (CENTER REAR)
8	TUBE (CENTER FRONT)
8	TUBE (CROSSOVER)
8	TUBE (LEFT REAR)
8	TUBE (LEFT FRONT)
8	TUBE (RIGHT REAR)
8	TUBE (RIGHT FRONT)
9	TEE, ADAPTER
10	MAY 2001F175-09
11	MAY 7101P635-60
12	MAY 7538P009-60
12	MAY 7538P008-60
13	BLOCK, TERMINAL W/ INGNITOR WIRES
14	MAY 3403M075-10
15	REG., PRESSURE
16	MAY 7212P067-60
17	MAY 4005F791-80
18	MAY 4001F155-80
19	MAY 3801F704-51
20	MAY 7432P120-60
21	MAY 7724P179-60
22	PIPE, MANIFOLD (2-BURNER)
23	VALVE
24	MAY 7101P044-60
