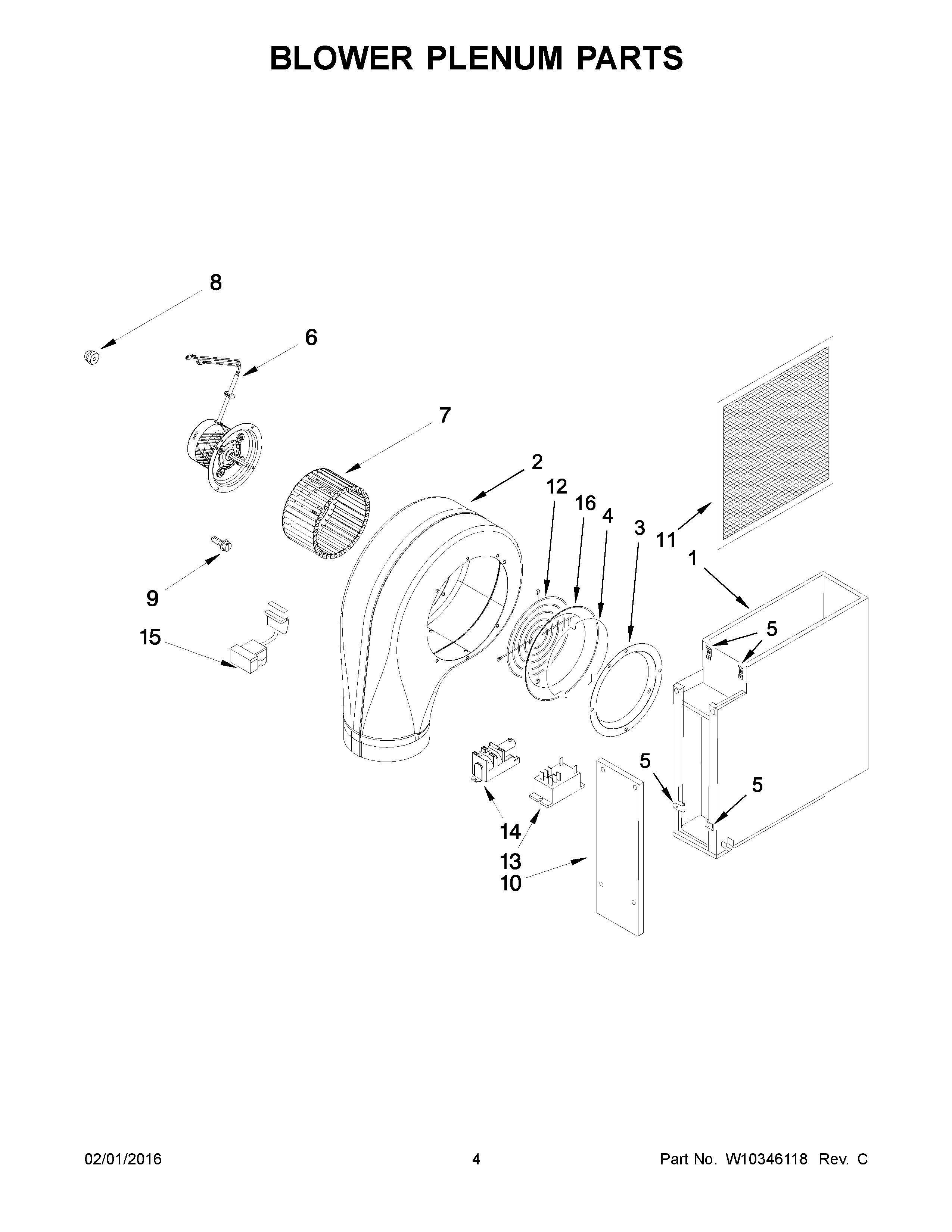

JGD8345ADB22 03 – BLOWER PLENUM PARTS

Products

Position	Product
1	MAY W10777873
2	ASSEMBLY, SCROLL
3	RING, INLET
4	MAY 8038P003-60
5	MAY 7104P007-60
6	MAY W10241953
7	WHEEL, BLOWER
8	NUT, LOCK
9	Screw, Ground
10	COVER, PLENUM ACCESS
11	MAY 8312P121-60
12	GUARD, BLOWER
13	RELAY, FAN
14	MODULE, SPARK
14A	MODULE, SPARK (2+0)
15	MAY 8019P018-60
16	RING, RESTRICTOR
