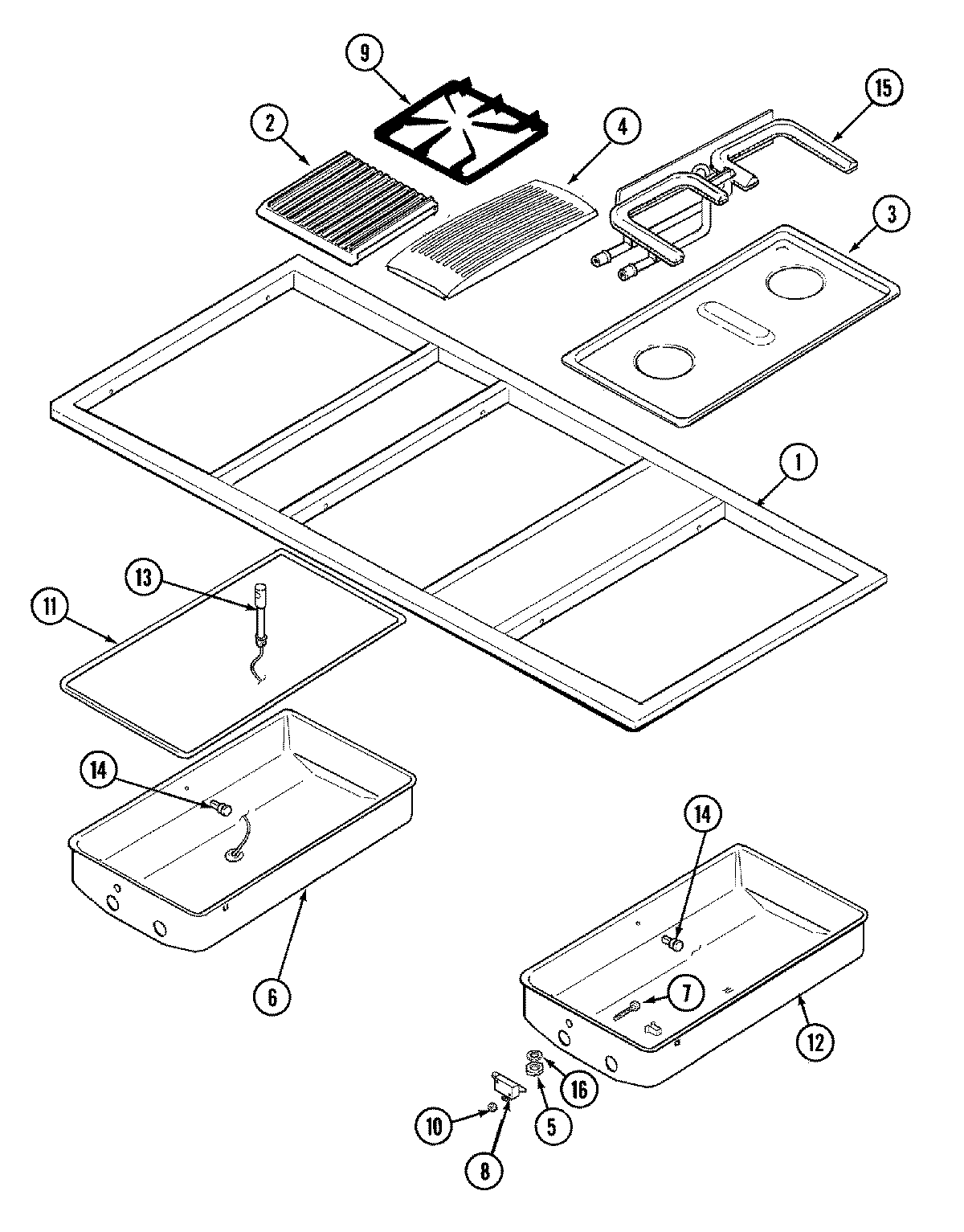

JGD8348ADP 04 – TOP ASSEMBLY

JGD8348ADP 04 – TOP ASSEMBLY

Written by

in

JGD8348ADP 04 – TOP ASSEMBLY

Products

PositionProduct
1MAY 71003262
2MAY 71003267
33401X055-09 Whirlpool Pan
4MAY 71003023
5WPY703856 Whirlpool Nut
6MAY Y04100272
7MAY 702380
8MAY Y704534
8MAY 715617
87403P620-60 Whirlpool Switch
9WP71003089 Whirlpool Grate Assembly
10MAY Y704522
11MAY Y704979
12MAY Y04100517
13MAY 74004808
13MAY 74004809
14MAY Y704553
14MAY Y04100271
15Y712601 Whirlpool Burner Grille
16MAY 704568
