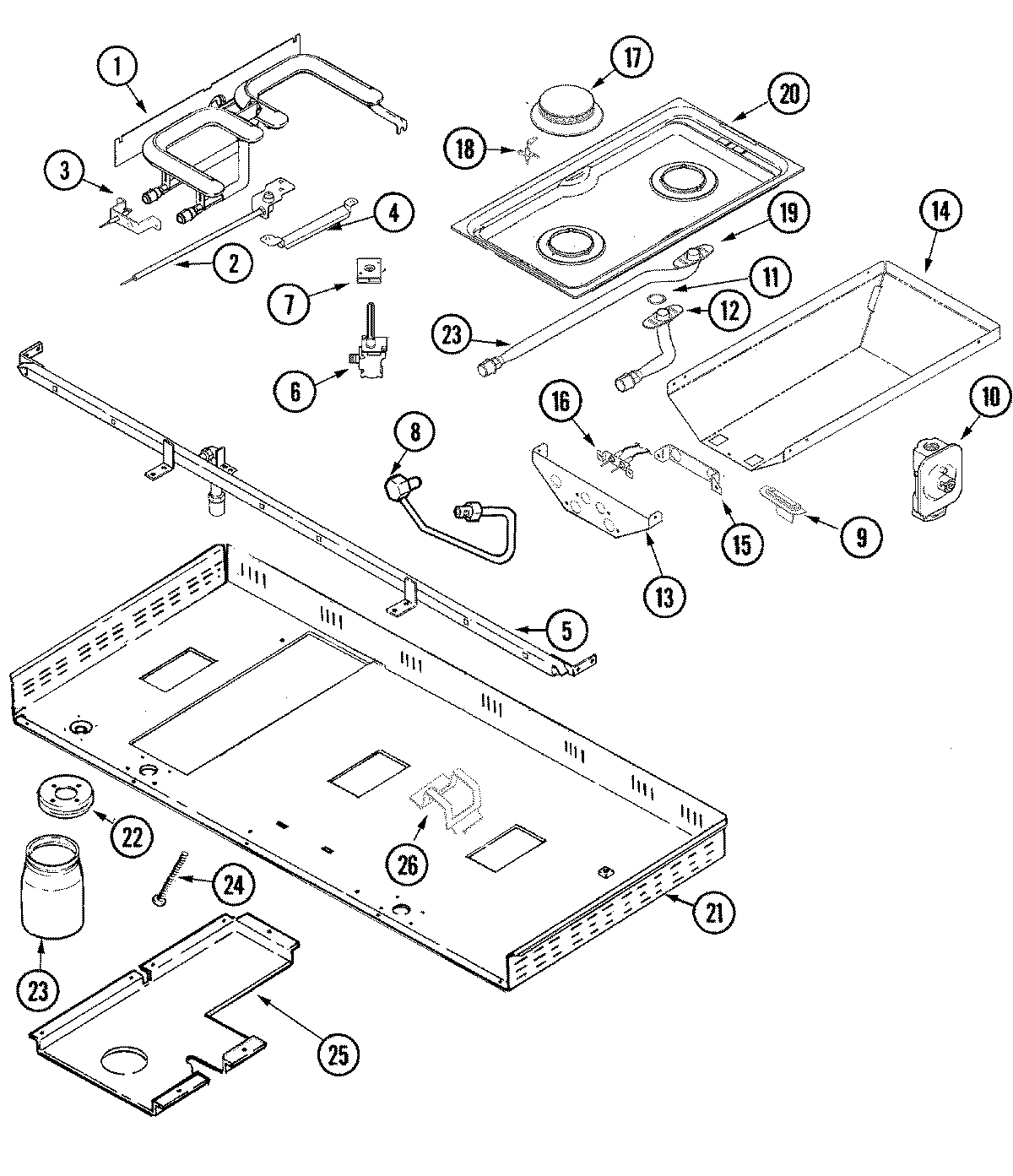

JGD8348CDP 03 – GAS CONTROLS & BURNER BOX

Products

Position	Product
1	WP74006070 Whirlpool Burner Grille
2	WP74006072 Whirlpool Spark Electrode
3	WP74006073 Whirlpool Oven Igniter
4	MAY 74006071
5	MAY 74009660
6	MAY Y04100187
6	VALVE-GAS
6	MAY 71003231
6	MAY 74007006
7	74007003 Whirlpool Spark Switch (Single)
7	MAY 74007004
8	MAY 74007005
8	MAY 71001046
8	MAY 71001044
8	MAY 71001043
9	MAY 74006934
10	W11106948 Whirlpool Pressure Regulator
11	MAY 74005893
12	WP7538P008-60 Whirlpool Burner Venturi
13	MAY 74006935
14	SCREW
14	MAY 74006104
14	MAY 74005888
15	MAY 74005889
16	SCREW
16	TERMINAL BLOCK
17	WP3403M075-10 Whirlpool Burner Head
18	74004053 Whirlpool Range Cooktop Top Burner Electrode Spark Igniter
19	WP7538P009-60 Whirlpool Venturi
19	WP59002061 Whirlpool Microwave Screw
20	WP2001F175-09 Whirlpool Cooktop
21	MAY 74009659
22	MAY Y707870
23	MAY Y707869
24	MAY Y707128
25	MAY 704527
26	MAY 71003147
