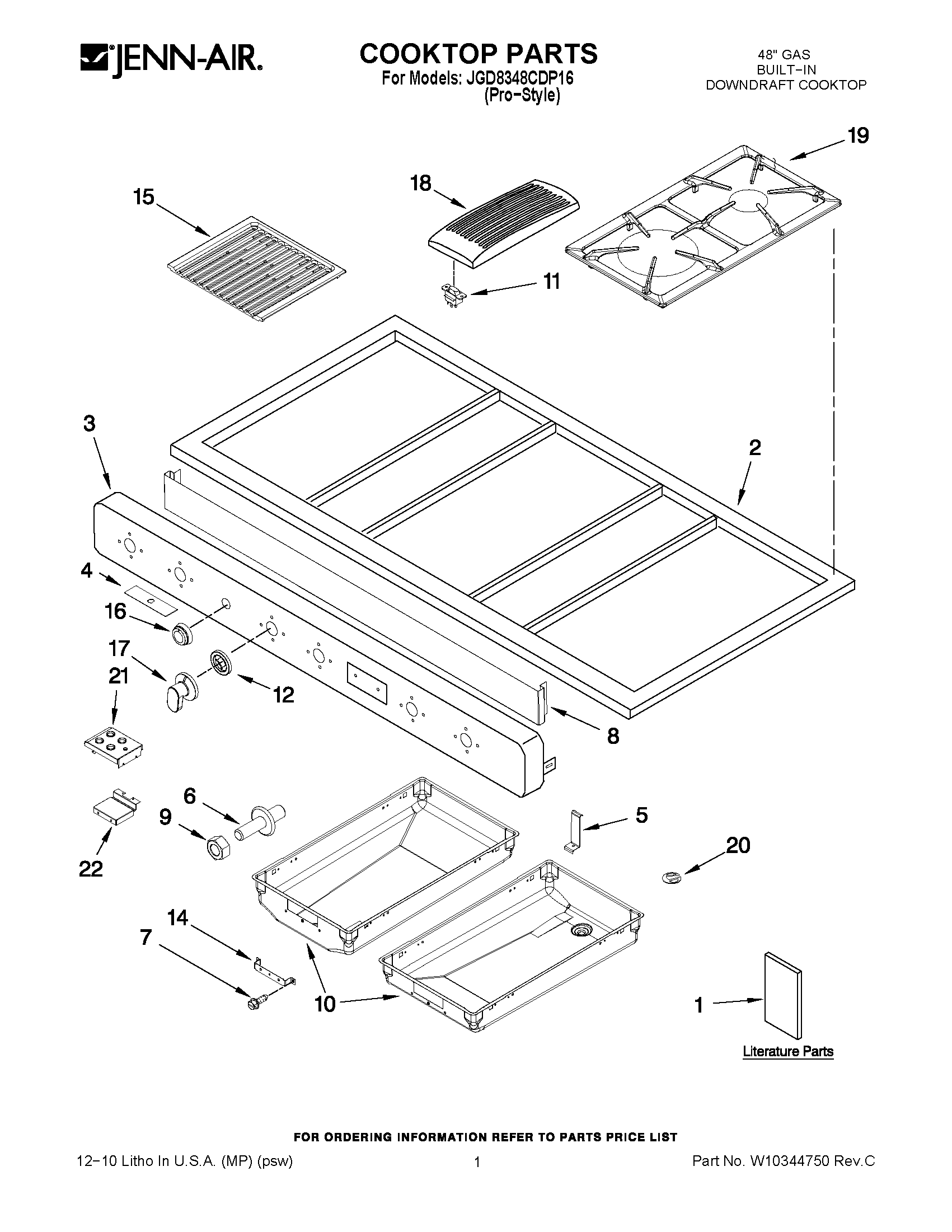

JGD8348CDP16 01 – COOKTOP PARTS

JGD8348CDP16 01 – COOKTOP PARTS

Written by

in

JGD8348CDP16 01 – COOKTOP PARTS

Products

PositionProduct
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1INSTRUCTIONS, DUCTING
1MAY 8101P658-60
1MAY 8104P807-60
1MAY 8111P535-60
2MAY 7746P096-60
3MAY 7720P506-60
4SWITCH, INSUL.
5BRACKET, CONTROL PANEL
6PIN, LOCATOR
7MAY 7101P451-60
8TRIM, CONTROL PANEL
9MAY 7103P160-60
10PAN, GRILL (LEFT)
10MAY 3401F066-19
11MAY 7403P882-60
12MAY 7740P145-60
14CLIP
15GRATE, GRILL
16MAY 7737P353-60
17MAY W10175692
18MAY 7772P024-60
19MAY 7518P483-60
20MAY 7212P053-60
21MAY 7770P005-60
22MAY 3801F426-80
