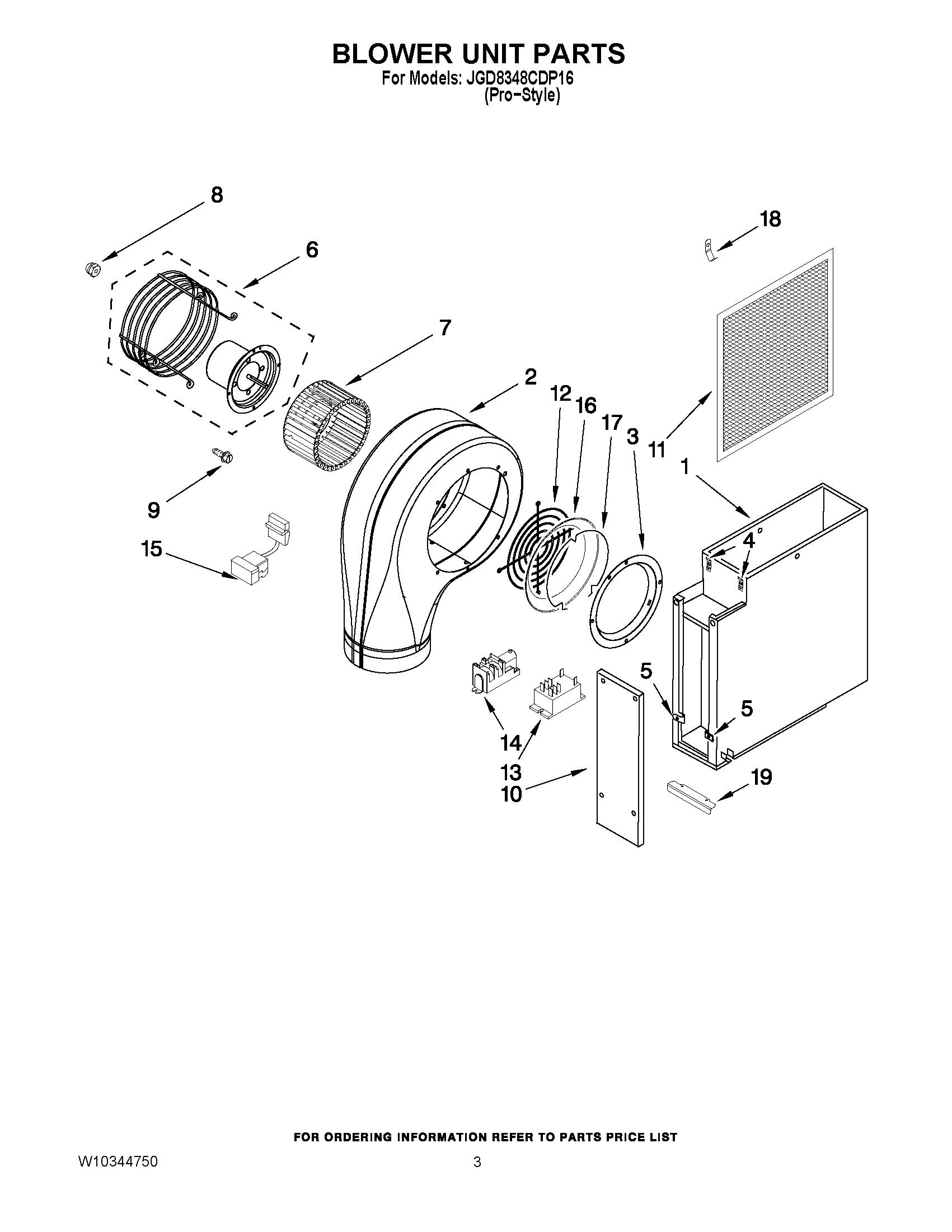

JGD8348CDP16 02 – BLOWER UNIT PARTSadmin2025-04-26T09:02:57+00:00JGD8348CDP16 02 – BLOWER UNIT PARTS
Products
| Position | Product |
|---|
| 1 | ASSY, PLENUM |
| 2 | MAY 2822W001-80 |
| 3 | RING, INLET |
| 5 | MAY 7104P007-60 |
| 6 | MAY 7409P029-60 |
| 7 | WHEEL, BLOWER |
| 8 | NUT, ACORN |
| 9 | Screw, Ground |
| 10 | COVER, PLENUM ACCESS |
| 11 | MAY 8312P121-60 |
| 12 | GUARD, BLOWER |
| 13 | RELAY, FAN |
| 14 | MODULE, SPARK |
| 14 | MODULE, SPARK (2+0) |
| 15 | MAY 8019P018-60 |
| 16 | RING, RESTRICTOR |
| 17 | MAY 8038P003-60 |
| 18 | MAY 3804F188-50 |
| 19 | MAY 3801F424-51 |
