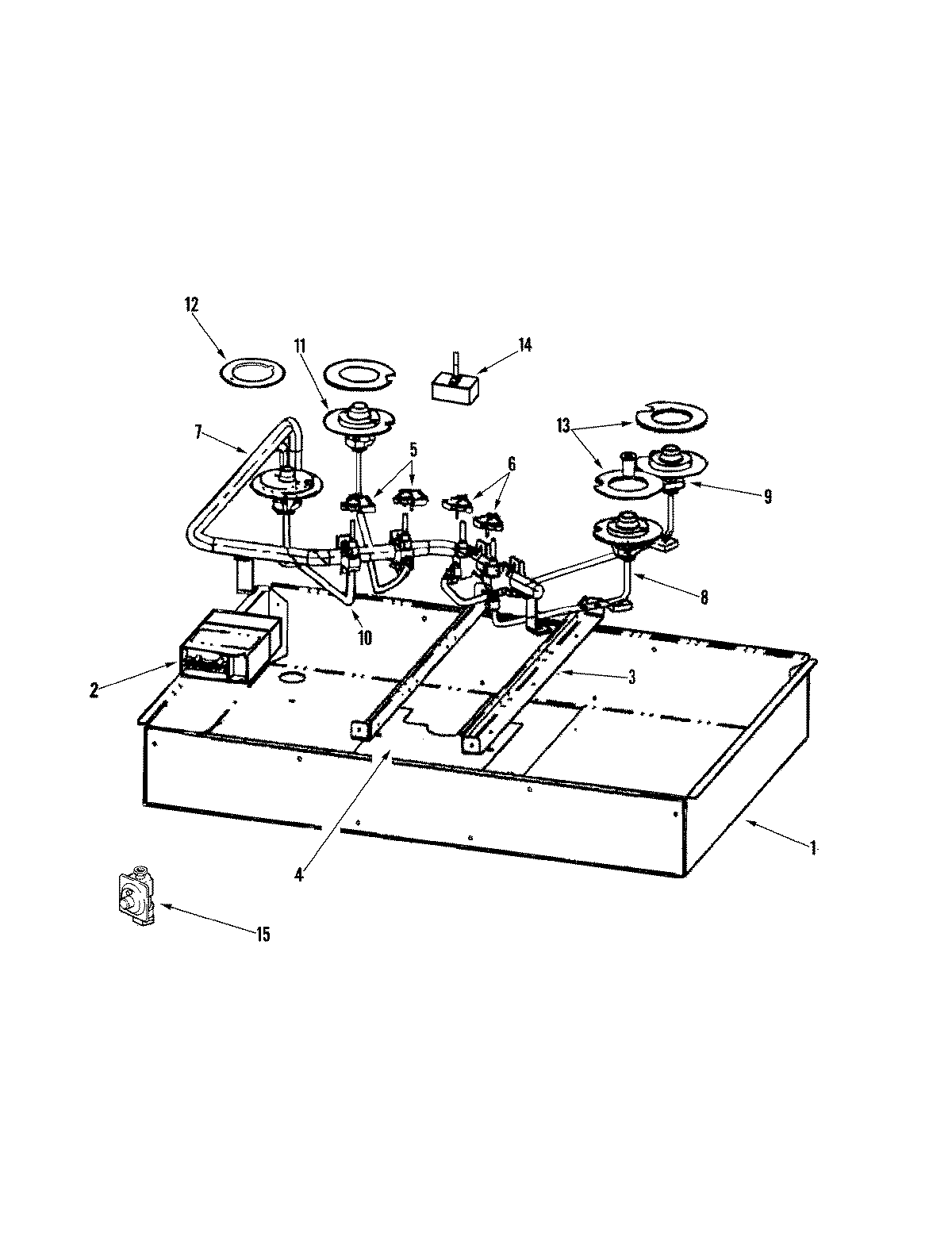

JGD8430ADN 02 – GAS CONTROLS

JGD8430ADN 02 – GAS CONTROLS

Written by

in

JGD8430ADN 02 – GAS CONTROLS

Products

PositionProduct
1MAY 74010763
2WP74010766 Whirlpool Spark Module
3MAY W10188061
3MAY 74010767
4MAY 74010770
5WP74010857 Whirlpool Cooktop Ignition Switch
6WP74010858 Whirlpool Ignition Switch
7MAY 74010771
7MAY 74001380
874010772 Whirlpool Right Front Orifice Holder
9MAY 74010773
10MAY 74010774
11MAY 74010775
12WP74010652 Whirlpool Gasket
13WP74010776 Whirlpool Freezer Gasket
14WP74010783 Whirlpool RO Switch
15W11087445 Whirlpool Pressure Regulator
