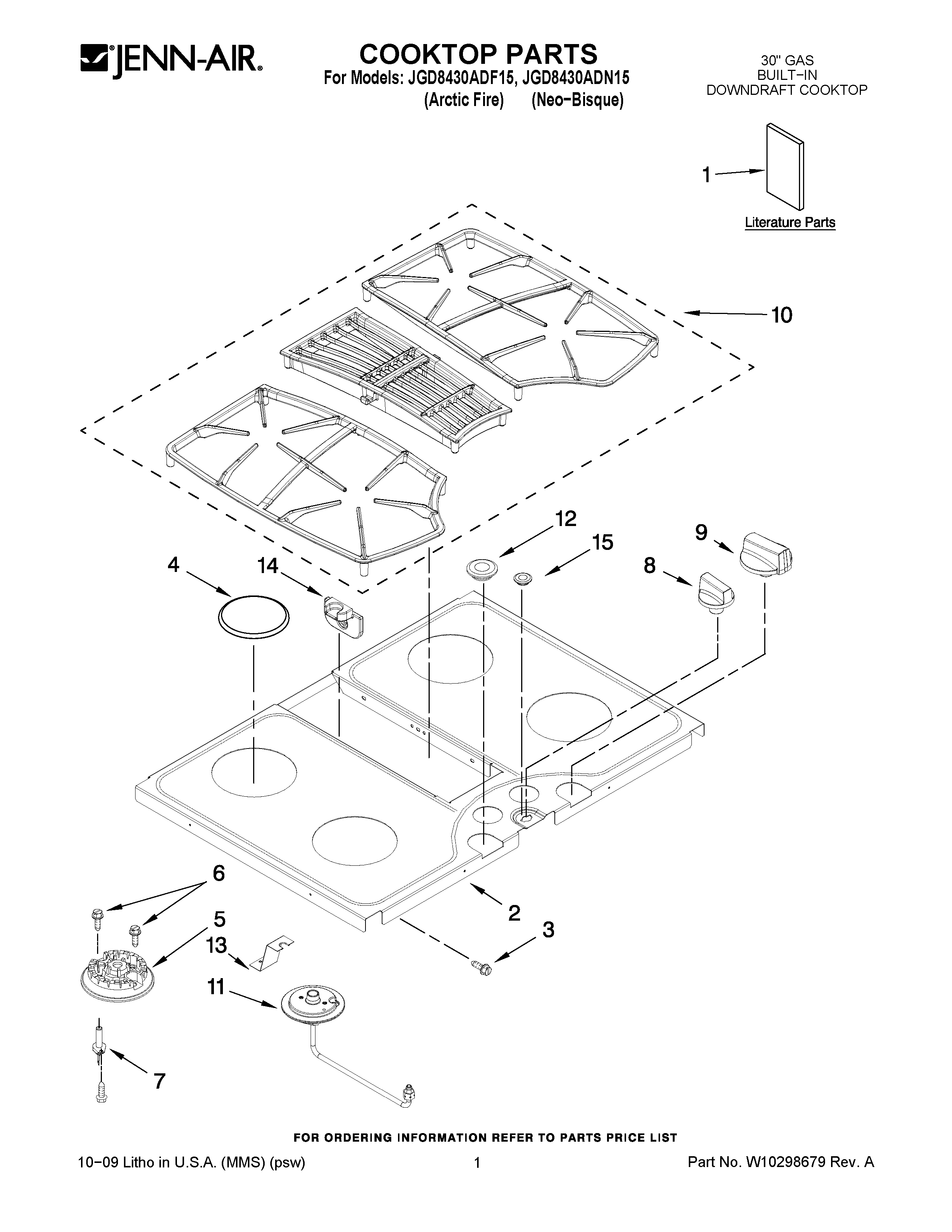

JGD8430ADN15 01 – COOKTOP PARTSadmin2025-04-26T09:03:35+00:00JGD8430ADN15 01 – COOKTOP PARTS
Products
| Position | Product |
|---|
| 1 | TIPS, SAFE COOKING (ENGLISH) |
| 1 | MAY 8101P663-60 |
| 1 | MAY 8112P340-60 |
| 1 | MAY 8119P134-60 |
| 1 | INSTRUCTIONS, DUCTING |
| 1 | CARD, FLOW TESTER |
| 1 | MAY 8101P653-60 |
| 1 | TIPS, SAFE COOKING (FRENCH) |
| 2 | MAY 7920P188-60 |
| 2 | MAY 7920P189-60 |
| 4 | Cap, Burner (Black) |
| 4 | CAP, BURNER (BLACK(LF)) |
| 4 | CAP, BURNER (BLACK(RF)) |
| 5 | HEAD, BURNER (LR & RF) |
| 5 | HEAD, BURNER (CTR) |
| 5 | ASSEMBLY, BURNER AUXILIARY (LEFT REAR & RIGHT REAR) |
| 6 | MAY 7101P606-60 |
| 7 | IGNITOR |
| 8 | KNOB, FAN (BLACK) |
| 8 | MAY 7737P348-60 |
| 9 | KNOB, CONTROL (BLACK) |
| 9 | MAY 7733P415-60 |
| 10 | MAY 7518P379-60 |
| 11 | MAY 7527P068-60 |
| 11 | MAY 7527P066-60 |
| 11 | MAY W10169397 |
| 11 | MAY W10169398 |
| 12 | MAY 8008P071-60 |
| 13 | MAY 3801F946-51 |
| 14 | MAY 8008P075-60 |
| 15 | GROMMET |
