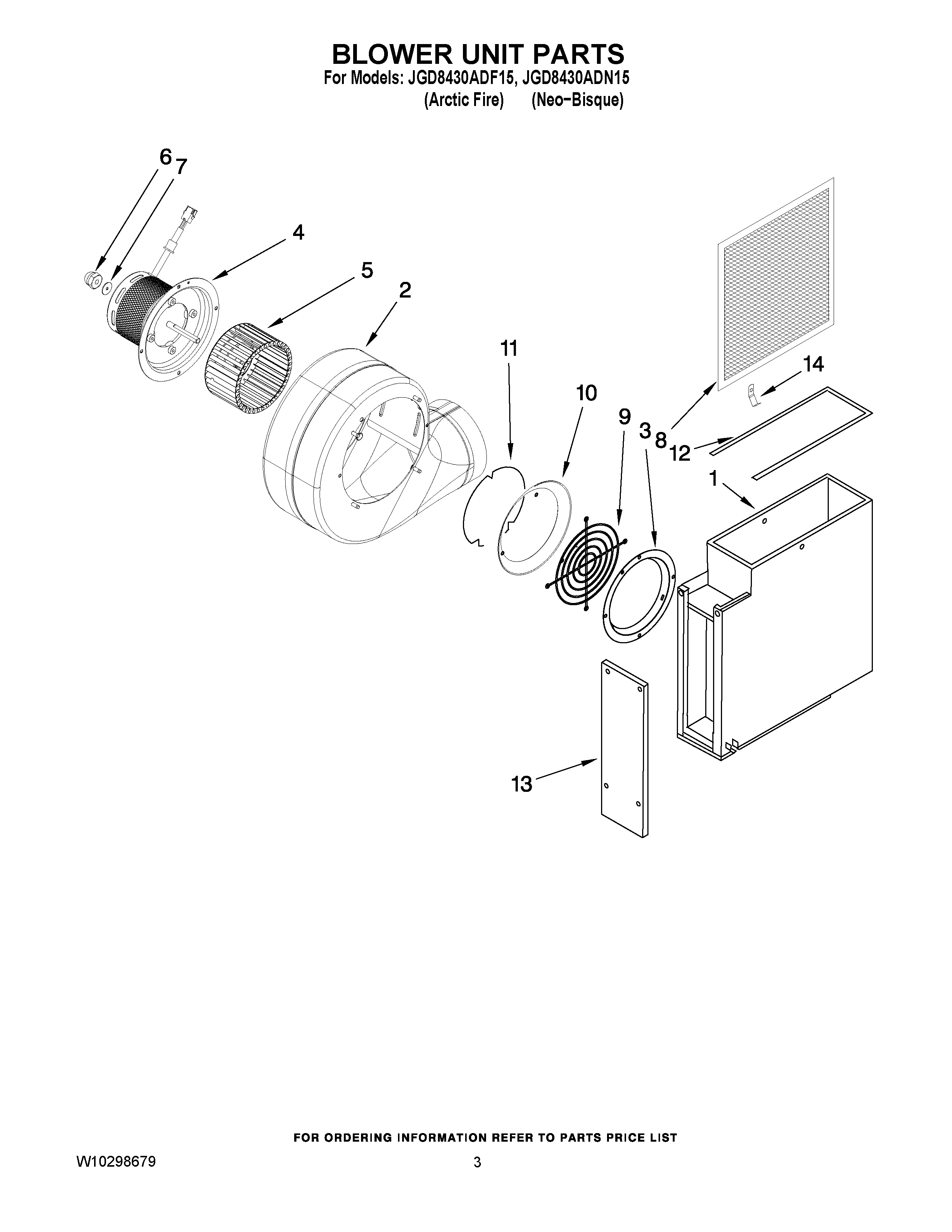

JGD8430ADN15 02 – BLOWER UNIT PARTS

Products

Position	Product
1	MAY 2801W036-80
2	MAY 2822W001-80
3	RING, INLET
4	MAY 7409P029-60
5	WHEEL, BLOWER
6	NUT, ACORN
7	WASHER
8	MAY 8312P240-60
9	GUARD, BLOWER
10	RING, RESTRICTOR
11	MAY 8038P003-60
12	MAY 7201P146-60
13	COVER, PLENUM ACCESS
14	MAY 3804F188-50
