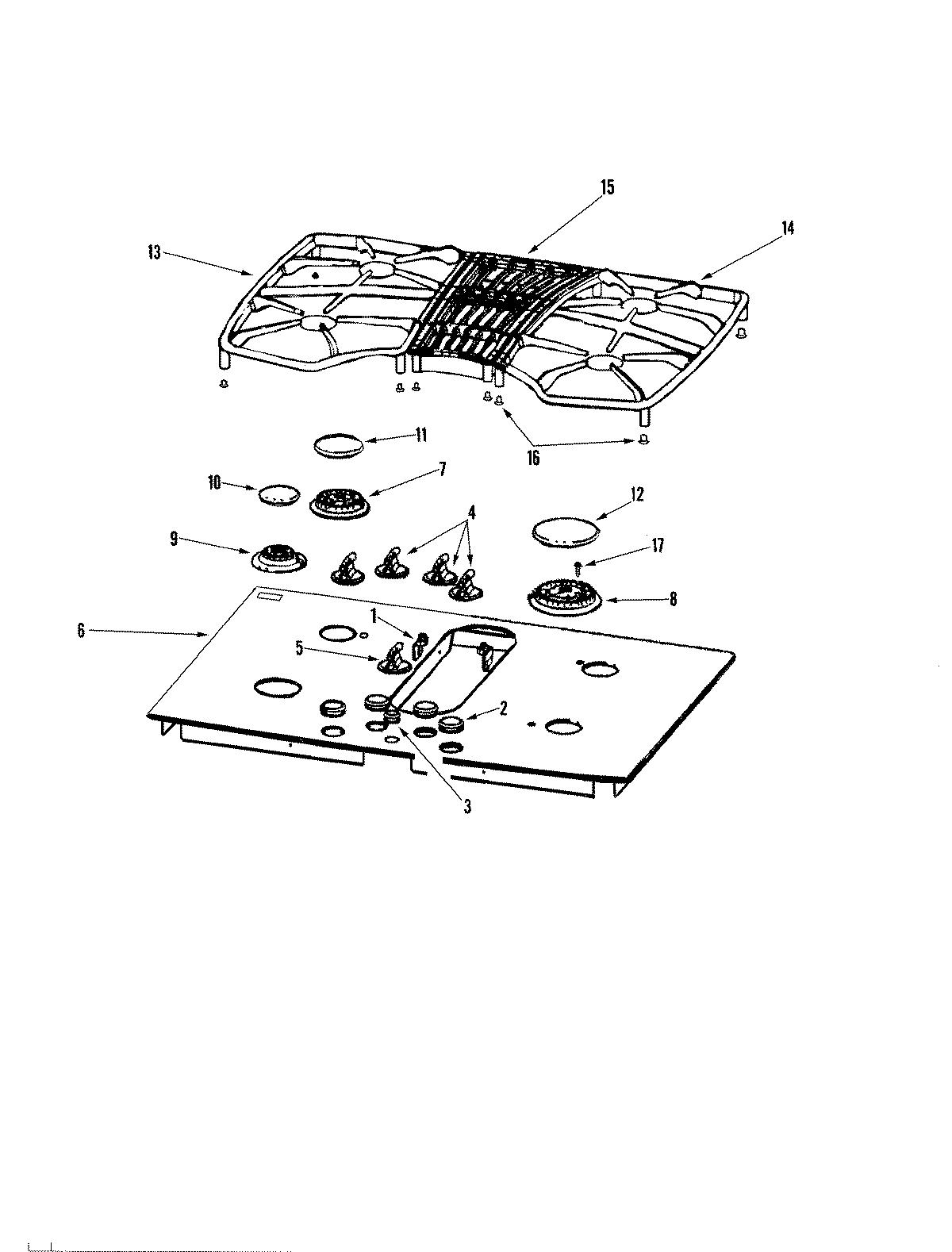

JGD8430ADS 04 – TOP ASSEMBLY

Products

Position	Product
1	74010860 Whirlpool Oven Grate Locator
2	WP8008P071-60 Whirlpool Grommet
3	WPW10293874 Whirlpool Stove Cooktop Knob Grommet
4	WP7733P410-60 Whirlpool Surface Burner Knob, Stainless Steel
5	WP7737P245-60 Whirlpool Stove Control Knob Chrome
6	MAY 74008241
6	W10204669 Whirlpool Cooktop
6	MAY 74010859
7	74007735 Whirlpool Burner Assembly
8	74007736 Whirlpool Gas Range Stove Cooktop Burner Assembly (15K)
9	WP74009336 Whirlpool Oven Top Igniter
9	WP7505P339-60 Whirlpool Burner Top
10	WP3191898 Whirlpool Surface Burner Cap Black
11	WP74007925 Whirlpool Burner Cap
12	WPW10154101 Whirlpool Burner Cap
13	MAY 74010861
14	MAY 74010862
15	MAY 74010863
16	814323 Whirlpool Range Burner Grate Foot Pads (5 Pack)
17	WP8273062 Whirlpool Screw
