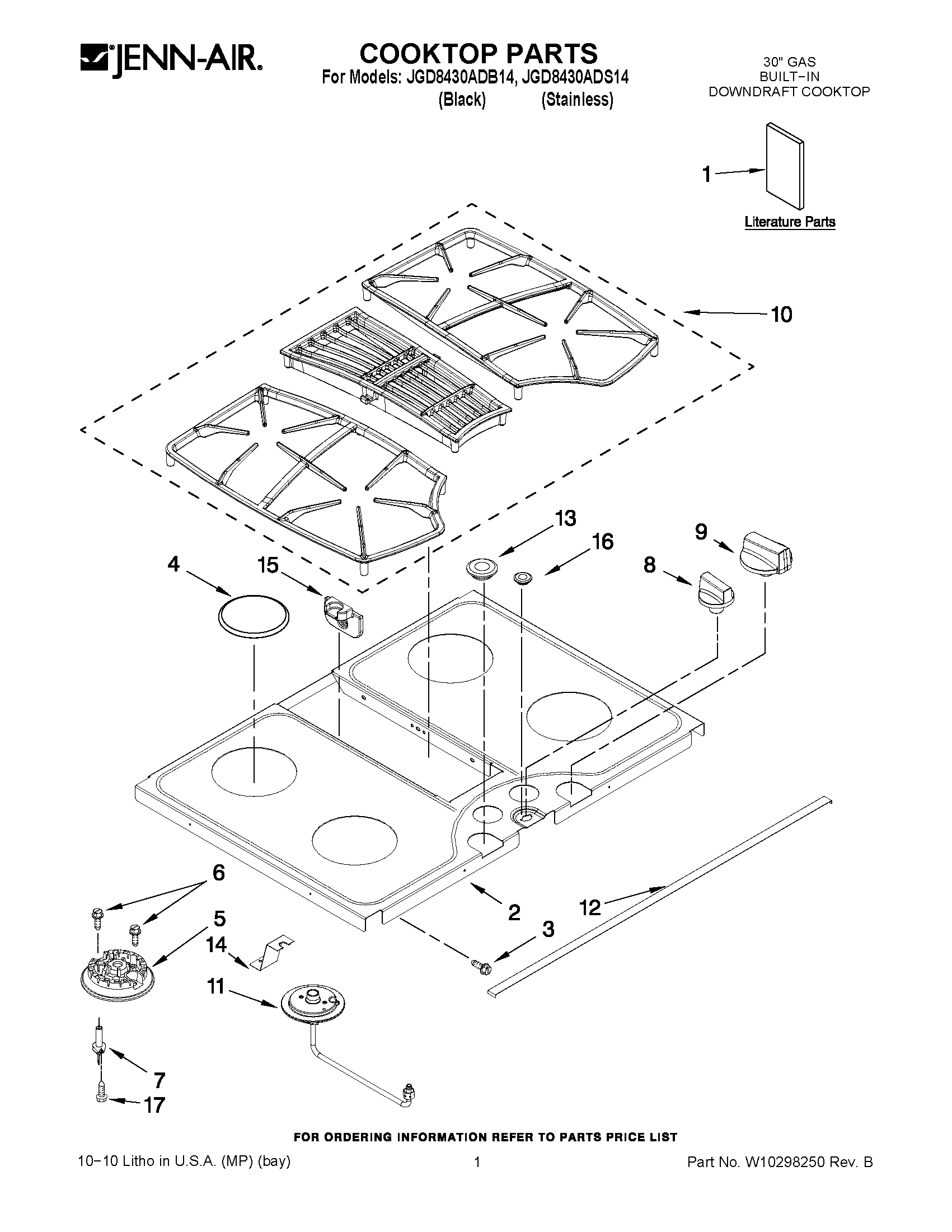

JGD8430ADS14 01 – COOKTOP PARTS

Products

Position	Product
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY 8101P663-60
1	MAY 8112P340-60
1	MAY 8119P134-60
1	INSTRUCTIONS, DUCTING
1	CARD, FLOW TESTER
1	MAY 8101P653-60
1	TIPS, SAFE COOKING (FRENCH)
2	MAY 7920P229-60
4	Cap, Burner (Black)
4	CAP, BURNER (BLACK(LF))
4	CAP, BURNER (BLACK(RF))
5	HEAD, BURNER (LR & RF)
5	HEAD, BURNER (CTR)
5	ASSEMBLY, BURNER AUXILIARY (LEFT REAR & RIGHT REAR)
6	WP3368921 Whirlpool Screw
7	IGNITOR
8	KNOB, FAN (BLACK)
9	KNOB, CONTROL (BLACK)
10	MAY 7518P379-60
11	MAY 7527P068-60
11	MAY 7527P066-60
11	MAY W10169398
11	MAY W10169397
12	TRIM,COOKTOP SS MODEL ONLY (REAR)
12	MAY W10168881
13	MAY 8008P071-60
14	MAY 3801F946-51
15	MAY 8008P075-60
16	GROMMET
17	MAY 7101P606-60
