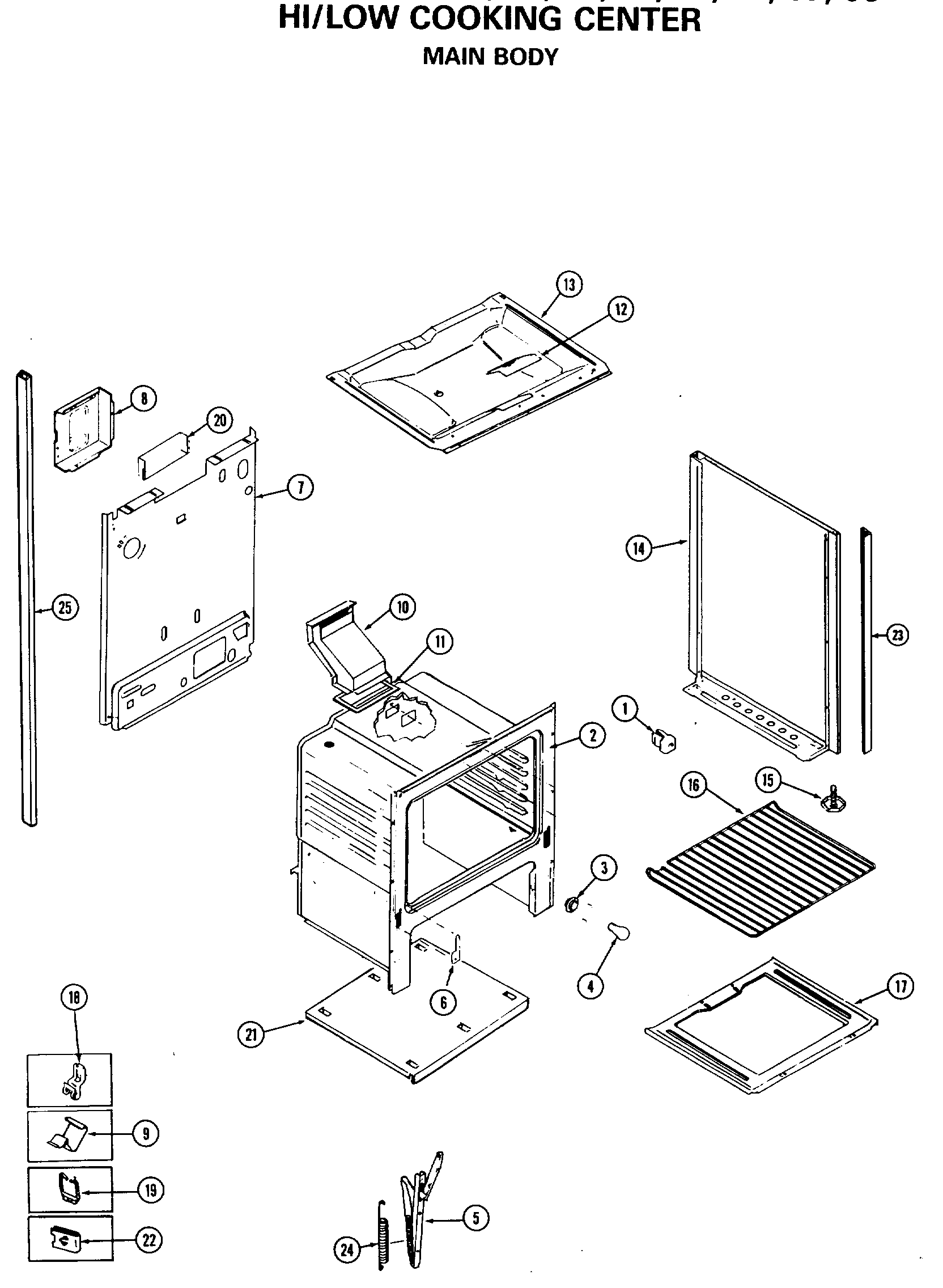

JGHC56GEJ7 HI/LOW COOKING CENTER

JGHC56GEJ7 HI/LOW COOKING CENTER

Written by

in

JGHC56GEJ7 HI/LOW COOKING CENTER

Products

Position	Product
1	GEN WB01X0931
2	GEN WB2X4777
3	HOUSING-OVEN LIGHT
3	RECEPTACLE-OVEN LIGHT
4	GEN BUY-LOCAL
5	GEN WB10X245
6	HINGE CUT-OUT COVER
7	BACK-MAIN
8	GEN WB63X286
9	GEN WB1X923
10	GEN WB38X101
12	PLATE-COVER
13	GEN WB56X1780
14	GEN WB63X281
14	GEN WB63X284
14	GEN WB63X282
14	GEN WB63X283
15	GEN WB1X711
16	GEN WB48X202
17	GEN WB2X4776
17	*INSULATION-OVEN LINER
17	GEN WB2X4965
17	GEN WB53X272
18	CLIP-THERMOSTAT BULB
18	GEN WB2X4968
18	GEN WB18X255
19	GEN WB1X1014
20	GEN WB38X99
21	GEN WB63X288
22	GEN WB1X1105
23	TRIM-BODY-SIDE-VERTICAL
24	GEN WB9X228
25	GEN WB02X7912
25	GEN WB02X7911
119	GEN WB24X5259
120	GEN WB02X7913
121	GEN WB02X7914
201	GEN WB61X341
202	GEN WB02X7910
203	FLUORESCENT LAMP
204	INSULATOR-FL. LT. RECEP.
205	GEN WB8X242
206	GEN WB07X1482
207	GEN WB7X1482
207	GEN WB2X4370
207	GEN WB2X4369
208	GEN WB36X741
209	GEN WB61X0375
210	GEN WB20X87
211	FASTENER-CABLE CLAMP
214	GEN WB7X1385
214	GEN WB7X1386
215	GEN WB7X1552
216	GEN WB1X808
301	GEN WB7X1556
302	GEN WB3X712
303	CAM DOOR
304	GEN WB62X1642
304	GEN WB62X1641
305	BRACKET-COOKTOP-LH
306	BRACKET-COOKTOP-RH
307	GEN WB07X1526
308	GEN WB07X1527
309	GEN WB32X5065
310	GEN WB32X5066
462	GEN WB56X1834
463	GEN WB56X1883
464	GEN WB15X245
465	GEN WB07X7067
466	GEN WB56X7021
467	GEN WB02X7916
468	GEN WB56X7020
470	GEN WB2X4984
472	GEN WB1X1016
473	SCREW-DOOR MOUNTING
477	GEN WB55X636
501	GEN WB10X247
501	GEN WB10X246
502	CLIP-FASTENER
503	GEN WB55X569
504	GEN WB1X701
505	SPRING-BROILER HINGE-LH
505	GEN WB9X197
506	GEN WB2X4995
506	LINER-BROILER DOOR PANEL
506	*SCREWS-OVEN ASSEMBLY
507	PANEL-BROILER DOOR-ALMND
507	PANEL-BROILER DOOR-WHITE
508	HANDLE-UTILITY DRAWER
508	*SCREW
509	GEN WB1X1025
510	GEN WB39X65
511	GEN WB49X569
512	GEN WB49X568
513	GEN WB39X66
514	GEN WB2X4996
701	GEN WB49X593
702	GEN WB28X74
703	GEN WB28X67
704	GEN WB02X9365
705	GEN WB2X4742
706	GEN WB2X4743
707	GEN WB2X4744
708	GEN WB2X4745
709	GEN WB2X4746
710	GEN WB02X9366
711	GEN WB2X4749
712	GEN WB21X422
713	GEN WB2X4750
714	*NUT-COMPRESSION
715	*RETAINER-IGNITER
716	GEN WB24X379
717	IGNITER-OVEN BURNER
718	GEN WB2X4753
721	FITTING-LOXIT
722	GEN WB2X10109
723	TUBE
724	SUPPLY TUBE
725	SAFETY VALVE
726	REGULATOR
727	GEN WB2X4772
728	IGNITER-UPPER OVEN
729	GEN WB2X4308
730	MIXER-UPPER OVEN
731	GEN WB28X51
732	GEN WB1X928
733	GEN WB01X694
901	GEN WB1X10107
902	GEN WB21X0490
904	CLOCK-DIGITAL
905	GEN WB1X774
906	GEN WB36X690
906	*BUSHING-GLASS
907	TRIM-CONTROL PANEL
907	GEN WB2X4390
908	GEN WB3X628
909	GEN WB3X738
910	GEN WB03X0792
911	GEN WB03X0793
912	THERMOSTAT
913	SWITCH-2 POSITIION
1003	HINGE-DOOR BOTTOM
1004	GEN WB2X4371
1005	SCREW-BOTTOM HINGE
1006	GEN WB2X4372
1008	GEN WB2X4374
1009	GASKET-OVEN LIGHT LENS
1010	COVER-OVEN LIGHT
1011	SEAL-DOOR-SIDES
1012	SEAL-DOOR-TOP/BOTTOM
1013	GEN WB39X67
1014	BOTTOM-OVEN
1015	GEN WB48X172
1016	RACK-OVEN
1017	*SCREW-BURNER BOX
1018	PANEL-SIDE-RH-ALMOND
1018	PANEL-SIDE-RH-WHITE
1018	PANEL-SIDE-LH-WHITE
1018	PANEL-SIDE-LH-ALMOND
1019	GEN WB63X304
1019	GEN WB2X4531
1021	GEN WB1X801
1022	CATCH ASSEMBLY-DOOR
1022	GEN WB14X90
1025	GEN WB2X4379
1026	FLUE-BACK
1026	GEN WB2X4532
1027	PANEL-TOP
1028	COVER-OUTLET-HOOD
1029	GEN WB1X769
1030	HINGE-DOOR-TOP
1031	GEN WB1X1015
1032	GEN WB2X4381
1101	SPACER-DOOR FRAME
1102	GEN WB36X688
1103	GEN WB36X689
1104	GEN WB14X91
1105	GEN WB1X694
1106	GEN WB7X1383
1107	GEN WB2X4366
1108	GEN WB7X1384
1109	GEN WB15X210
1110	SCREW- HANDLE-OVEN DOOR
1111	GEN WB1X806
9999	GEN WB02X9804
9999	GEN 49-4811
32767	GEN 31-0642
