JGHC56GEJE HI/LOW COOKING CENTER

JGHC56GEJE HI/LOW COOKING CENTER

Written by

in

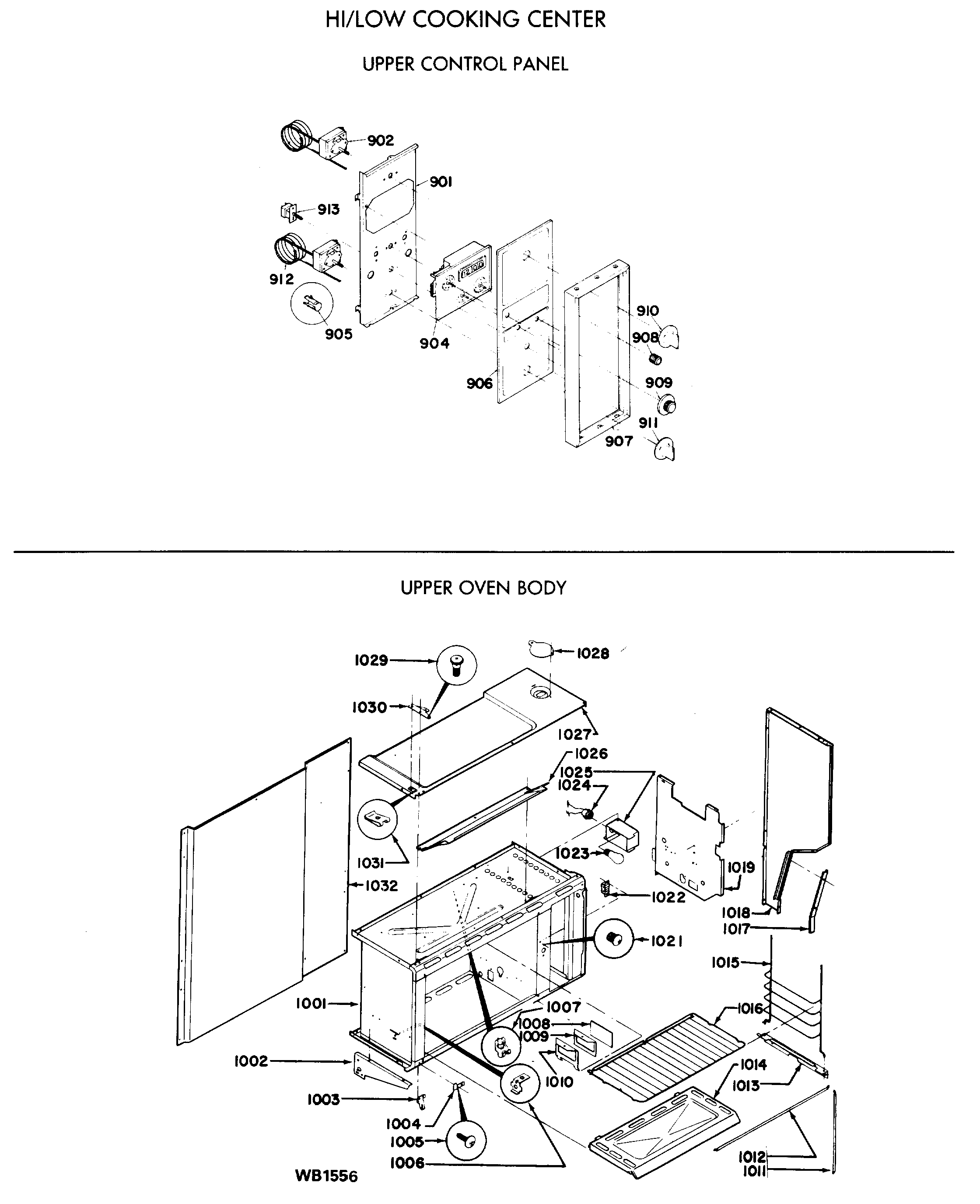

JGHC56GEJE HI/LOW COOKING CENTER

Products

Position	Product
1	GEN WB01X0931
2	INSULATION-OVEN WRAP
2	GEN WB02X4965
2	GEN WB02X4777
3	HOUSING-OVEN LIGHT
4	GEN WB08X0262
5	HINGE-W/SPRING
8	GEN WB63X0286
9	COVER-HINGE CUT OUT
9	GEN WB01X0923
10	GEN WB38X0101
11	GEN WB38X0085
12	GEN WB02X8231
14	CATCH ASSEMBLY-DOOR
16	BACK-MAIN
16	GEN WB48X0202
17	GEN WB53X0272
18	GEN WB02X4968
18	GEN WB18X0255
20	GASKET-FLUE
21	GEN WB63X0288
22	GEN WB01X1105
24	SPRING-OVEN DOOR HINGE
25	GEN WB02X7911
25	GEN WB02X7912
28	GEN WB02X8233
30	COVER-PLATE
31	GEN WB56X1780
35	PNL SIDE LT WH
35	PNL SIDE RT WH
35	GEN WB07X1532
35	PNL SIDE LT AD
35	PNL SIDE RT AD
36	GLASS DOOR INNER
36	LEVELING LEG
38	CLIP-THERMOSTAT BULB
40	GEN WB02X4776
88	GEN WB01X1014
102	GEN WB02X7910
104	GEN WB02X10079
119	GEN WB24X5259
120	GEN WB02X7914
121	GEN WB02X7913
128	SCREW-COVER MOUNTING
167	FLUORESCENT LAMP
183	GEN WB07X1527
201	BACK-BACKSPLASH
205	RECEPTACLE-FLUOR LIGHT
206	GEN WB07X1482
207	GUSSET-SUPPORT-LH
207	GUSSET-SUPPORT-RH
208	GEN WB36X0741
209	GEN WB61X0375
211	GEN WB20X0087
212	FASTENER- CABLE CLAMP
216	GEN WB07X7177
216	TRIM-BACKSPLASH-SIDE-LH
217	GEN WB07X1552
218	GEN WB01X0808
257	GEN BUY-LOCAL
301	GEN WB07X1556
302	GEN WB03X0712
303	ROD CKTP SUPPORT
304	GEN WB62X1641
304	GEN WB62X1642
307	GEN WB07X1526
309	GEN WB32X5087
310	GEN WB32X5066
332	BRACKET-COOKTOP-LH
333	BRACKET-COOKTOP-RH
462	GEN WB56X1834
463	GEN WB56X1883
464	GEN WB15X5199
466	GEN WB56X7020
467	GEN WB02X7916
468	GEN WB56X7021
470	GEN WB02X4984
470	GEN WB07X7067
472	GEN WB01X1016
474	SCREW
477	GEN WB55X5369
501	BRACKET-BROILER HINGE-RH
501	BRACKET-BROILER HINGE-LH
502	FASTENER-PUSH NUT
503	INSULATION-BROILER DOOR
503	BODY-BROILER
504	GEN WB01X0701
505	GEN WB09X0197
505	GEN WB09X0200
506	LINER-BROILER DOOR PANEL
507	PANEL-BROILER DOOR-WHITE
507	PANEL-BROILER DOOR-ALMND
508	GEN WB02X8354
509	GEN WB01X1025
510	GLIDE-BROILER
512	WB48X10056 GE Broil Pan Set, Large Porcelain
513	GEN WB39X0066
514	GEN WB02X4996
556	SCREW
556	SCREW
701	GEN WB49X0593
702	GEN WB28X0074
703	BURNER-TOP (DOUBLE)
707	GEN WB02X8012
707	GEN WB02X8013
708	GEN WB02X8014
709	GEN WB02X8015
709	GEN WB02X4746
711	GEN WB02X8016
712	GEN WB02X9366
713	ELBOW
714	GEN WB21X5285
714	GEN WB01X5831
715	GEN WB24X0379
716	GEN WB02X4753
718	12400035 Whirlpool Oven Flat Style Igniter Kit
722	GEN WB02X8229
723	GEN WB02X10012
725	GEN WB21X0424
727	GEN WB21X0423
728	GEN WB02X4760
728	GEN WB02X4774
729	BRACKET CONNECTOR MTG
730	GEN WB02X8230
731	IGNITER-OVEN BURNER
731	GEN WB28X0051
732	NUT-SPECIAL
732	GEN WB02X8215
733	NUT
736	TUBE-ALUMINUM
738	GEN WB02X9365
738	*RETAINER-IGNITER
901	WB01X10107 GE Screw
902	GEN WB21X5281
904	GEN WB19X0241
905	FASTENER-CLOCK-TUBULAR
906	GEN WB36X5674
907	FASTENER-C/P FRAME
907	TRIM HOOD (BL)
907	GEN WB02X4391
909	GEN WB03X0738
910	KNOB-CLOCK
911	GEN WB03X0793
911	GEN WB03X0792
912	GEN WB21X5277
913	GEN WB24X5293
920	SCREW-CATCH ASSEMBLY
1003	GEN WB14X0088
1004	GEN WB02X4371
1005	GEN WB01X1061
1006	RETAINER-OVEN BURNER
1008	GLASS-OVEN LIGHT LENS
1009	GEN WB02X4373
1010	GEN WB36X5675
1011	GASKET-OEVN DOOR-SIDE
1012	GASKET-DOOR-TOP & BOTTOM
1013	GEN WB39X0067
1014	OVEN BOTTOM
1015	GEN WB02X8236
1016	OVEN RACK
1019	GEN WB02X8237
1019	GEN WB02X4531
1020	PANEL-SIDE-WHITE-LH
1020	PANEL-SIDE-ALMOND-RH
1020	PANEL-SIDE-ALMOND-LH
1020	PANEL-SIDE-WHITE-RH
1021	GEN WB63X0304
1022	GEN WB14X0090
1025	GEN WB02X8238
1026	INSULATION-VENT
1027	PANEL-TOP
1028	GEN WB02X10111
1029	FLUE BACK
1030	SCREW-HINGE PIN
1030	GEN WB14X0089
1031	FASTENER-HINGE
1032	INSULATION-REAR
1101	GEN WB02X8234
1102	GLASS-DOOR-INNER
1104	GEN WB02X8235
1106	GEN WB07X7178
1107	BRACKET-DOOR FRAME-L END
1108	GEN WB07X7179
1109	GEN WB15X5201
1110	GEN WB01X1062
1111	GEN WB02X4365
1111	GEN WB01X0806
32767	GEN 49-4811
32767	GEN 31-0642
32767	GEN WB02X9804
