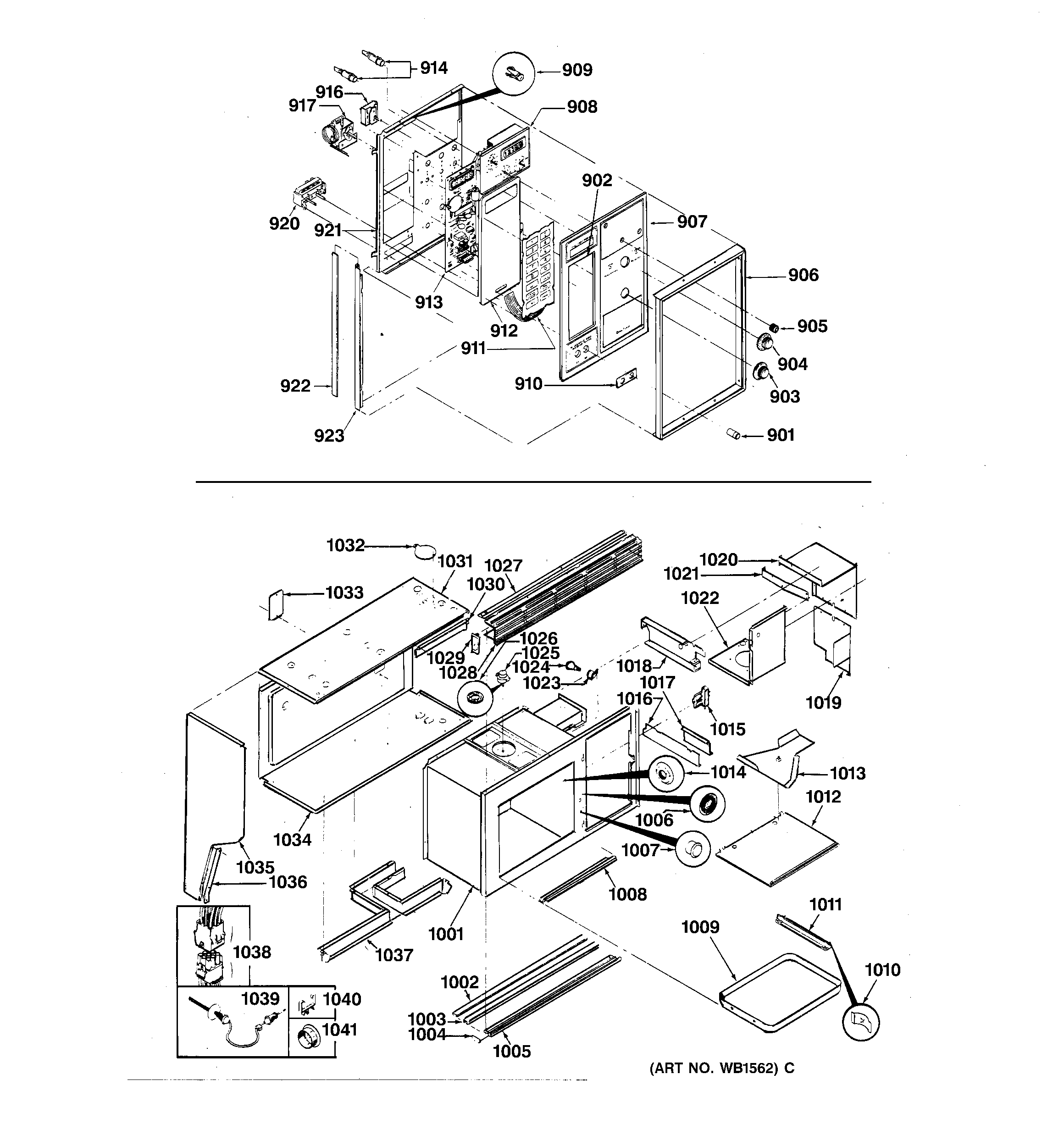

JGHC60GEJ5 UPPER CONTROL PANEL & OVEN BODY

JGHC60GEJ5 UPPER CONTROL PANEL & OVEN BODY

Written by

in

JGHC60GEJ5 UPPER CONTROL PANEL & OVEN BODY

Products

Position	Product
901	BUTTON
902	GEN WB07X1549
902	GEN WB24X400
902	GEN WB18X279
903	GEN WB3X744
904	KNOB-OVEN TEMPERATURE
905	KNOB-CLOCK
906	TRIM
907	GEN WB2X10070
907	*BUSHING-GLASS
907	GEN WB36X693
908	GEN WB19X0240
909	GEN WB1X782
910	BEZEL
911	KEYPANEL
912	PANEL-SWITCH MOUNTING
912	*SCREW-SWITCH PANEL
913	GEN WB27X301
913	GEN WB01X0815
914	GEN WB02X10069
916	SWITCH-2 POSITIION
916	SCREW-CATCH ASSEMBLY
917	THERMOSTAT
920	SWITCH-ON/OFF
920	GEN WB2X4422
920	GEN WB1X801
921	GEN WB07X1550
922	GEN WB02X4425
923	GEN WB02X9376
1002	SEAL
1003	GEN WB02X9374
1004	END CAP
1005	TRIM-BOTTOM
1006	STRIKE-DOOR
1007	GROMMET-DOOR
1008	GEN WB07X1623
1009	TRAY-GLASS
1010	CLIP-TRAY
1011	GEN WB02X9377
1012	GEN WB02X9375
1012	COVER-STIRRER
1013	FAN-STIRRER
1014	NUT
1015	GEN WB20X0080
1016	ANGLE-AIR BAFFLE
1017	ANGLE-AIR BAFFLE
1018	CHANNEL
1019	COVER
1020	COVER-DUCT
1021	BRACKET-MAGNETRON
1022	GEN WB2X4406
1023	SOCKET-UPPER OVEN LIGHT
1024	RANGE ONLY 40W 120V APPL BULB
1026	MOTOR-STIRRER
1026	WASHER
1027	RETAINER-TRIM
1028	TRIM
1029	END CAP-LEFT
1029	END CAP-RIGHT
1030	GEN WB2X4408
1030	GEN WB2X4409
1031	GEN WB63X0297
1032	COVER-OUTLET
1033	GEN WB02X10075
1034	GEN WB2X10124
1034	GEN WB63X298
1035	PANEL-SIDE-WHITE-LH
1035	PANEL-SIDE-WHITE-RH
1035	PANEL-SIDE-ALMOND-RH
1035	PANEL-SIDE-ALMOND-LH
1037	GEN WB02X10077
1038	GEN WB2X4413
1039	GEN WB20X0081
1040	GEN WB01X1047
1041	GEN WB02X10078
1219	*BAFFLE-TRANSFORMER
