JGHC60GEJ6 BACKSPLASH & COOKTOP

JGHC60GEJ6 BACKSPLASH & COOKTOP

Written by

in

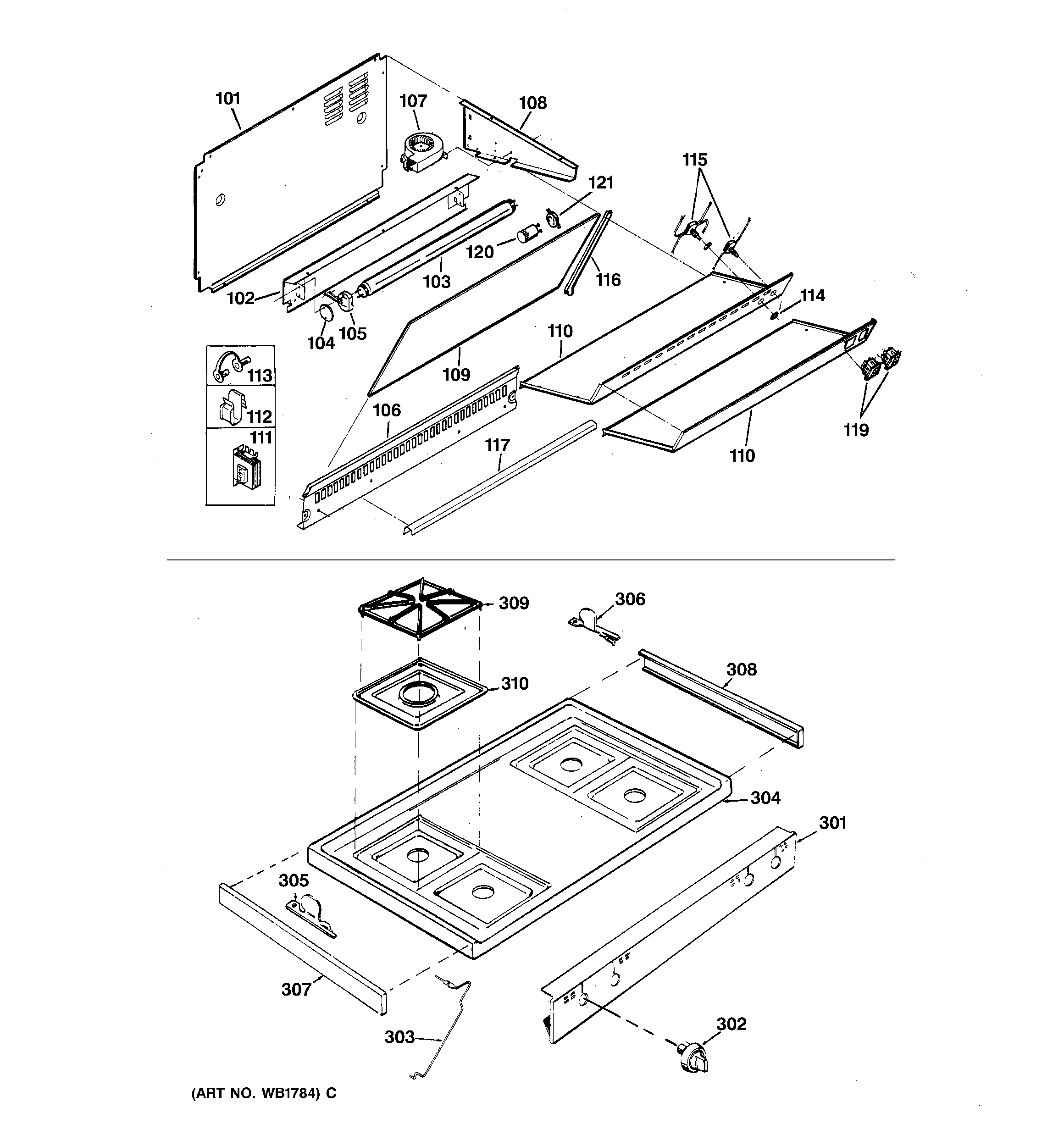

JGHC60GEJ6 BACKSPLASH & COOKTOP

Products

PositionProduct
101GEN WB61X0336
102GEN WB02X7910
103FLUORESCENT LAMP
104GEN WB02X10079
105GEN WB8X252
106GEN WB7X1482
107BLOWER MOTOR ASSEMBLY
108GEN WB2X10121
108GEN WB2X10120
109GEN WB36X0687
110GEN WB61X374
111GEN WB20X0087
112FASTENER- CABLE CLAMP
113GEN WB02X10080
116TRIM-BACKSPLASH-SIDE-RH
116TRIM-BACKSPLASH-SIDE-LH
117GEN WB07X1552
119GEN WB24X5259
120GEN WB02X7913
121GEN WB02X7914
301GEN WB7X1556
302GEN WB3X712
303CAM DOOR
304GEN WB62X1642
304GEN WB62X1641
305BRACKET-COOKTOP-LH
306BRACKET-COOKTOP-RH
307GEN WB07X1526
308GEN WB07X1527
309GEN WB32X5065
310GEN WB32X5066
