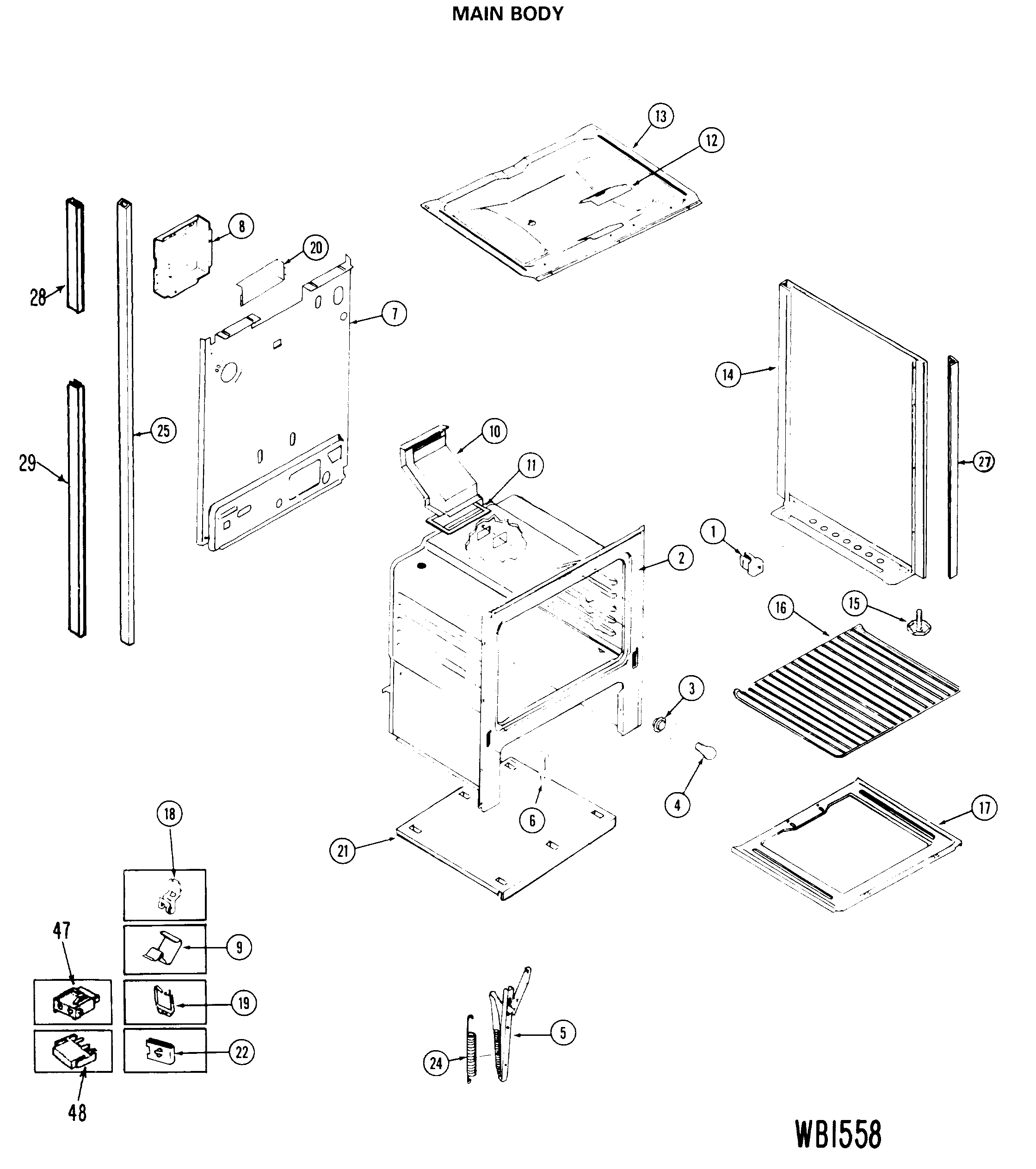

JGHC60GEN6 MAIN BODY

JGHC60GEN6 MAIN BODY

Written by

in

JGHC60GEN6 MAIN BODY

Products

PositionProduct
1GEN WB01X0931
2GEN WB02X4965
2GEN BUMPER-FRONT MAIN
2FASTENER-POWER CORD
2INSULATION-OVEN WRAP
3GEN WB08X0262
3HOUSING-OVEN LIGHT
4GEN BUY-LOCAL
4GEN WB02X4967
5HINGE-W/SPRING
7BACK-MAIN
9GEN WB01X0923
9COVER-HINGE CUT OUT
10GEN WB38X0094
11GEN WB38X0093
13GEN WB56X1780
14PNL SIDE RT AD
14PNL SIDE LT WH
14PNL SIDE LT AD
14PNL SIDE RT WH
15FASTENER LEG LEVELER
15GEN WB18X0271
15SCREW-LEVELING
16GEN WB48X0190
17BOTTOM-OVEN-REMOVABLE
17GEN SUPPORT-OVEN BOTTOM
17SCREW-OVEN BOTTOM
18GEN COVER-POWER CORD
18CLIP-THERMOSTAT BULB
18GEN RECEPTACLE-WALL-20 AMP
18GEN WB02X10269
19GEN WB01X1014
19GEN WB63X0286
20GASKET-FLUE
21GEN WB63X0288
22GEN WB01X1105
25GEN WB02X7974
26GEN WB02X10119
28GEN WB02X7975
28OVEN ASSEMBLY
29GEN WB02X7976
30COVER-PLATE
35GEN TRIM-SIDE-VERTICAL
47GEN WB01X5828
48GEN WB01X5829
128SCREW-COVER MOUNTING
732GEN WB21X0424
732GEN WB02X4772
735NUT-SPECIAL
907GEN WB07X7107
907GEN WB02X7981
907GEN WB02X7980
32767GEN 49-4812
32767GEN 31-0643
32767GEN WB02X9804
32767GEN 49-4664
