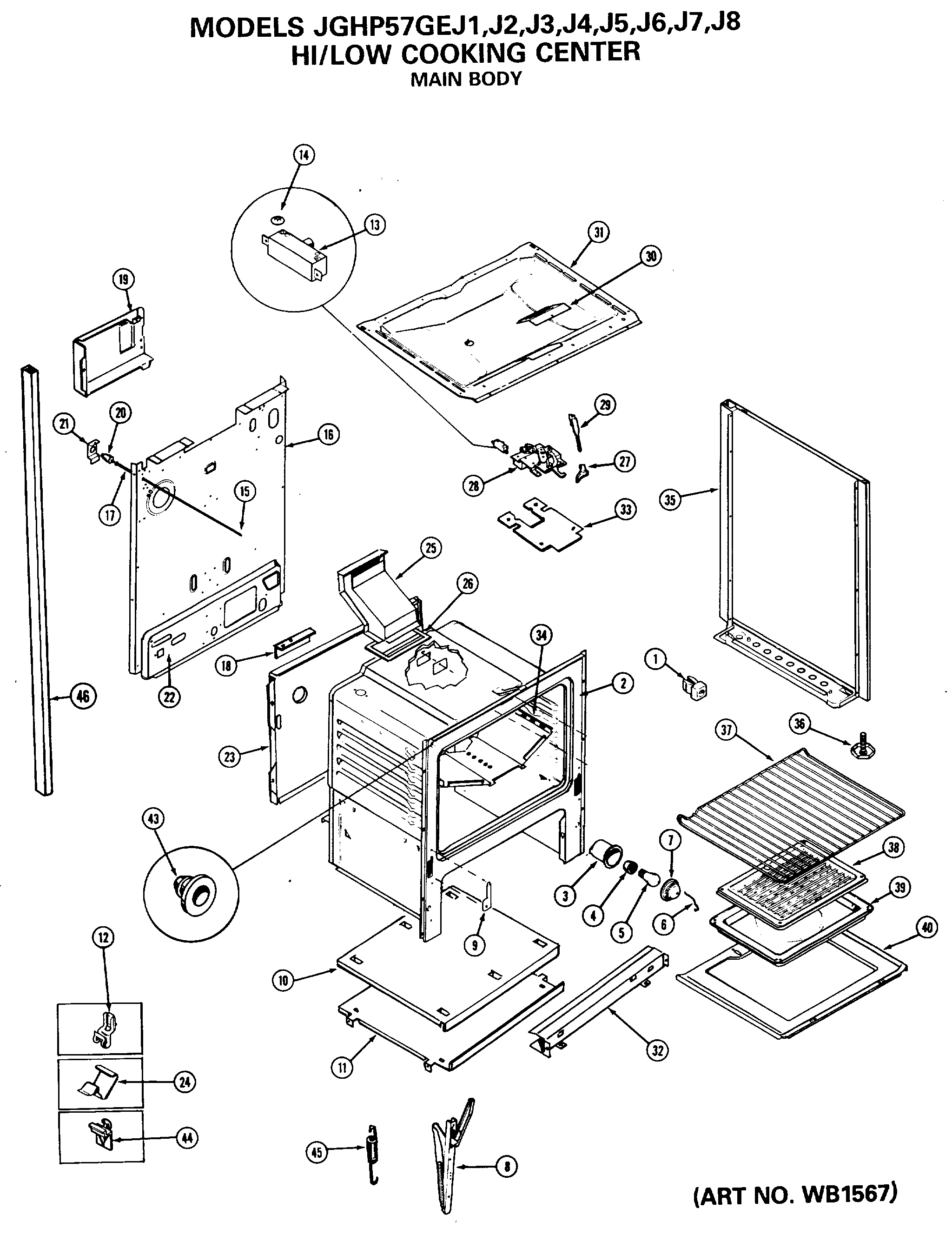

JGHP57GEJ2 HI/LOW COOKING CENTER

JGHP57GEJ2 HI/LOW COOKING CENTER

Written by

in

JGHP57GEJ2 HI/LOW COOKING CENTER

Products

Position	Product
1	GEN WB01X0931
2	GEN WB2X4791
2	GEN WB2X4777
3	GEN WB02X10083
4	GEN WB08X0262
5	GEN BUY-LOCAL
6	GEN WB02X4762
7	GEN WB36X0730
8	GEN WB10X0236
9	COVER-HINGE CUT OUT
10	GEN WB63X0273
11	GEN WB63X0274
11	GEN WB02X4766
12	GEN WB01X0941
13	GEN WB24X0380
14	GEN WB1X942
14	GEN WB1X933
15	FASTENER-POWER CORD
15	GEN WB18X255
15	GEN WB02X4767
16	GEN WB2X4959
16	GEN WB63X306
17	GEN WB02X4768
18	GEN WB2X4962
19	GEN WB02X4967
20	GEN WB24X0381
21	GEN WB02X4958
22	GEN WB49X477
23	GEN WB63X0275
24	GEN WB01X0923
25	GEN WB38X0092
26	GEN WB38X0093
27	GEN WB01X0734
27	GEN WB3X632
28	GEN WB14X0067
28	GEN WB02X4774
29	GEN WB15X260
30	COVER-PLATE
31	GEN WB56X1780
32	GEN WB63X278
33	GEN WB63X0279
33	GEN WB2X4961
34	GEN WB63X0280
35	PANEL-SIDE-LH-ALMOND
35	PANEL-SIDE-RH-WHITE
35	PANEL-SIDE-LH-WHITE
35	PANEL-SIDE-RH-ALMOND
36	LEVELING LEG
37	GEN WB48X0190
39	WB48X10056 GE Broil Pan Set, Large Porcelain
40	BOTTOM-OVEN-REMOVABLE
40	GEN WB02X4776
43	GEN WB03X0688
44	GEN WB39X0064
45	GEN WB09X0229
46	GEN WB02X10086
46	GEN WB02X10087
201	GEN WB61X341
202	GEN WB61X337
202	GEN WB2X4666
204	INSULATOR-FL. LT. RECEP.
205	GEN WB8X252
206	GEN WB7X1482
207	GEN WB2X4370
207	GEN WB2X4369
209	GEN WB36X687
210	GEN WB61X342
211	GEN WB20X87
212	FASTENER-CABLE CLAMP
213	GEN WB2X10080
214	GEN WB7X1479
215	GEN WB24X398
216	GEN WB7X1385
216	GEN WB7X1386
217	GEN WB7X1552
218	GEN WB1X808
219	GEN WB2X10118
220	GEN WB21X421
301	GEN WB07X1553
302	GEN WB3X712
303	CAM DOOR
304	GEN WB62X1642
304	GEN WB62X1641
305	BRACKET-COOKTOP-LH
306	BRACKET-COOKTOP-RH
307	GEN WB07X1526
308	GEN WB07X1527
309	GRATE-TOP BURNER
310	GEN WB32X0090
461	GEN WB02X4994
462	GEN WB55X0598
463	GLASS-OVEN DOOR
464	GEN WB55X0600
465	GEN WB15X0245
466	GEN WB55X0601
467	GEN WB55X0602
468	GEN WB55X0603
469	GEN WB2X4738
470	GEN WB07X1483
470	GEN WB1X1063
471	CLIP-RETAINING
472	GEN WB01X0705
473	GEN WB01X1016
474	SCREW-DOOR MOUNTING
475	BRACKET
475	GEN WB02X4993
476	SEAL PAD-FOAM
551	GEN WB58X0056
552	GEN WB39X0060
553	GEN WB56X1855
554	HANDLE-UTILITY DRAWER
554	SCREW
555	GEN WB56X1856
556	GEN WB01X1025
701	GEN WB49X0591
702	GEN WB49X0592
703	GEN WB28X0065
704	GEN WB28X066
706	SCREW
707	GEN WB02X4742
708	GEN WB02X4743
709	GEN WB2X4774
710	GEN WB02X4745
711	GEN WB02X4746
713	GEN WB02X4749
714	GEN WB21X0422
715	NUT-COMPRESSION
716	GEN WB24X379
718	12400035 Whirlpool Oven Flat Style Igniter Kit
719	GEN WB02X4753
720	GEN WB02X4755
721	GEN WB1X1048
722	FUSE
723	FITTING-LOXIT
724	GEN WB2X10116
725	SUPPLY TUBE
726	GEN WB2X4759
727	SAFETY VALVE
728	GEN WB2X4772
729	REGULATOR
730	NUT
731	IGNITER-UPPER OVEN
732	GEN WB28X51
733	MIXER-UPPER OVEN
734	GEN WB21X624
735	GEN WB2X10117
736	TUBE
737	GEN WB2X4748
737	GEN WB2X4751
738	GEN WB2X4741
739	GEN WB28X67
740	GEN WB21X623
741	GEN WB8X272
742	RECEPTACLE-FUSE
901	GEN WB36X744
902	GEN WB2X10115
903	GEN WB24X396
905	GEN WB21X401
906	GEN WB21X452
907	GEN WB2X4735
908	CLOCK-DIGITAL
909	GEN WB3X732
910	GEN WB3X628
911	KNOB-THERMOSTAT-UPPER
912	GEN WB03X0731
913	TRIM-CONTROL PANEL
1001	*SCREWS-OVEN ASSEMBLY
1002	HINGE-DOOR BOTTOM
1003	SCREW-BOTTOM HINGE
1004	GEN WB2X4371
1005	GEN WB2X4372
1006	CLIP-THERMOSTAT BULB
1007	GEN WB2X4374
1008	GASKET-OVEN LIGHT LENS
1009	COVER-OVEN LIGHT
1010	SEAL-DOOR-SIDES
1011	SEAL-DOOR-TOP/BOTTOM
1012	GEN WB39X67
1013	BOTTOM-OVEN
1014	GEN WB48X172
1015	RACK-OVEN
1017	CLIP-FASTENER
1018	GEN WB1X801
1019	GEN WB10X226
1020	PANEL-SIDE-RH-ALMOND
1020	PANEL-SIDE-RH-WHITE
1020	PANEL-SIDE-LH-ALMOND
1020	PANEL-SIDE-LH-WHITE
1021	GEN WB63X304
1023	RECEPTACLE-OVEN LIGHT
1024	GEN WB2X4379
1025	FLUE-BACK
1026	PANEL-TOP
1027	COVER-OUTLET-HOOD
1028	GEN WB1X769
1029	HINGE-DOOR-TOP
1030	GEN WB1X1015
1031	GEN WB631341
1102	GEN WB36X688
1103	GEN WB36X689
1104	GEN WB14X91
1105	GEN WB1X694
1106	GEN WB7X1383
1107	GEN WB2X4366
1108	GEN WB7X1384
1109	GEN WB15X210
1110	SCREW- HANDLE-OVEN DOOR
1111	SPACER-DOOR FRAME
32767	GEN 49-4816
32767	GEN 31-0642
