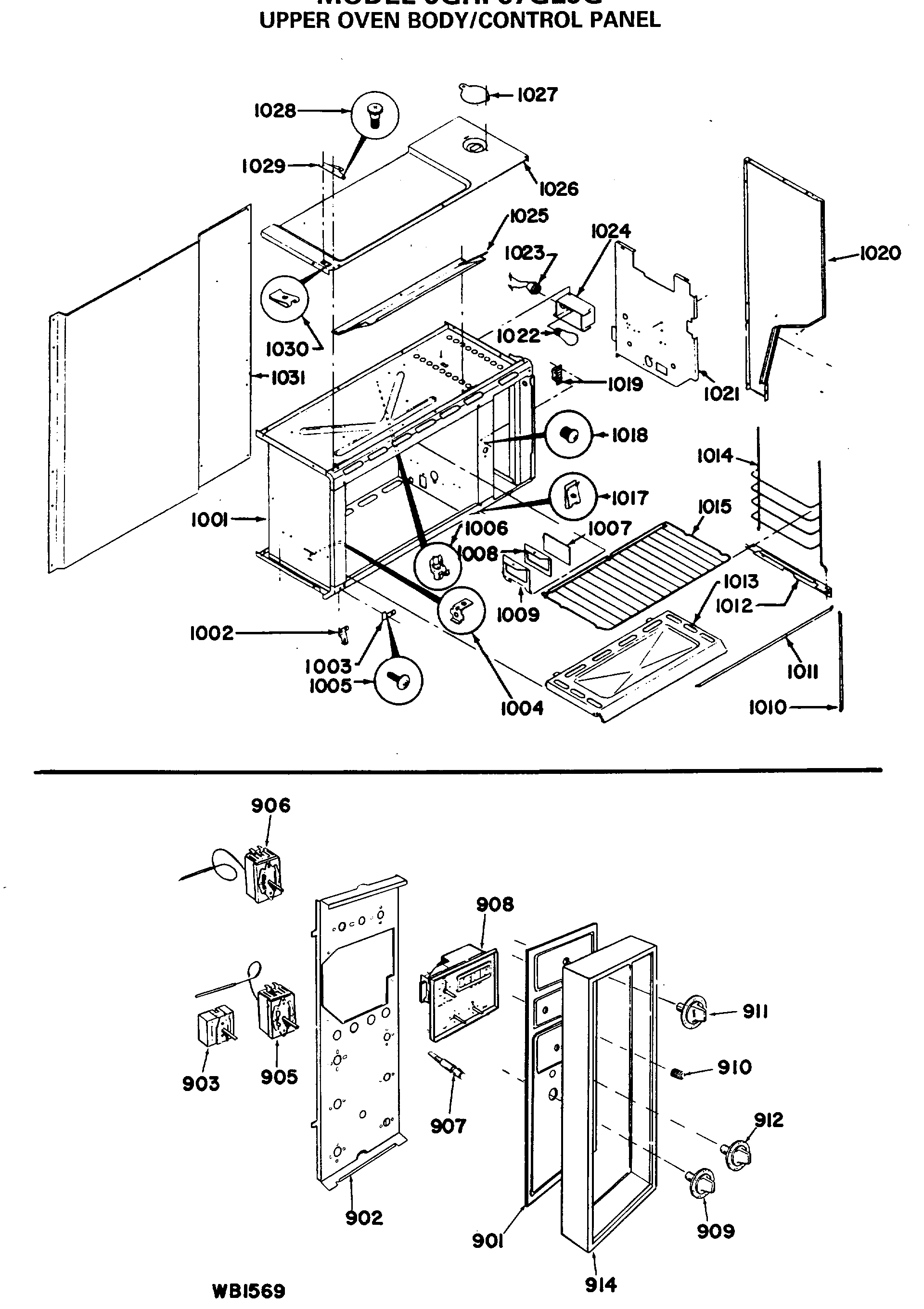

JGHP57GEJG UPPER OVEN BODY/CONTROL PANEL

JGHP57GEJG UPPER OVEN BODY/CONTROL PANEL

Written by

in

JGHP57GEJG UPPER OVEN BODY/CONTROL PANEL

Products

Position	Product
34	GEN WB63X0346
42	GEN WB02X4959
42	BRACKET-DOOR FRAME-L END
42	FITTING-LOXIT
63	GEN WB36X0687
73	IGNITER-OVEN BURNER
78	GEN WB28X0051
87	NUT
104	GEN WB02X10079
111	GEN WB20X0087
113	GEN WB2X10080
113	GEN WB02X10080
116	TRIM-BACKSPLASH-SIDE-LH
117	GEN WB07X1552
167	FLUORESCENT LAMP
179	GEN WB21X0421
183	GEN WB07X1527
257	GEN BUY-LOCAL
307	GEN WB07X1526
332	BRACKET-COOKTOP-LH
333	BRACKET-COOKTOP-RH
477	GEN WB01X1063
483	GEN WB02X7923
483	GEN WB01X0727
502	FASTENER-PUSH NUT
706	BRACKET-BURNER MOUNTING
706	SCREW
748	TUBE-ALUMINUM
901	GEN WB36X0744
902	GEN WB02X8025
902	GEN WB21X5281
903	GEN WB03X0732
906	GEN WB21X5283
907	GEN WB02X4735
908	GEN WB19X5304
910	GEN WB03X5803
911	GEN WB03X0792
912	GEN WB03X0731
916	GEN WB24X0396
924	SCREW-CATCH ASSEMBLY
1004	GEN WB02X4371
1012	SEAL-DOOR-TOP/BOTTOM
1013	GEN WB39X0067
1015	OVEN RACK
1019	GEN WB63X0304
1024	GEN WB02X8238
1027	PANEL-TOP
1031	GEN WB63X1341
1035	PANEL-SIDE-WHITE-LH
1035	GEN WB02X10111
1035	PANEL-SIDE-ALMOND-LH
1037	PANEL-SIDE-ALMOND-RH
1037	PANEL-SIDE-WHITE-RH
32767	GEN 31-0642
32767	GEN 49-4816
32767	GEN WB02X9804
