JGHP66GEH3 1

JGHP66GEH3 1

Written by

in

JGHP66GEH3 1

Products

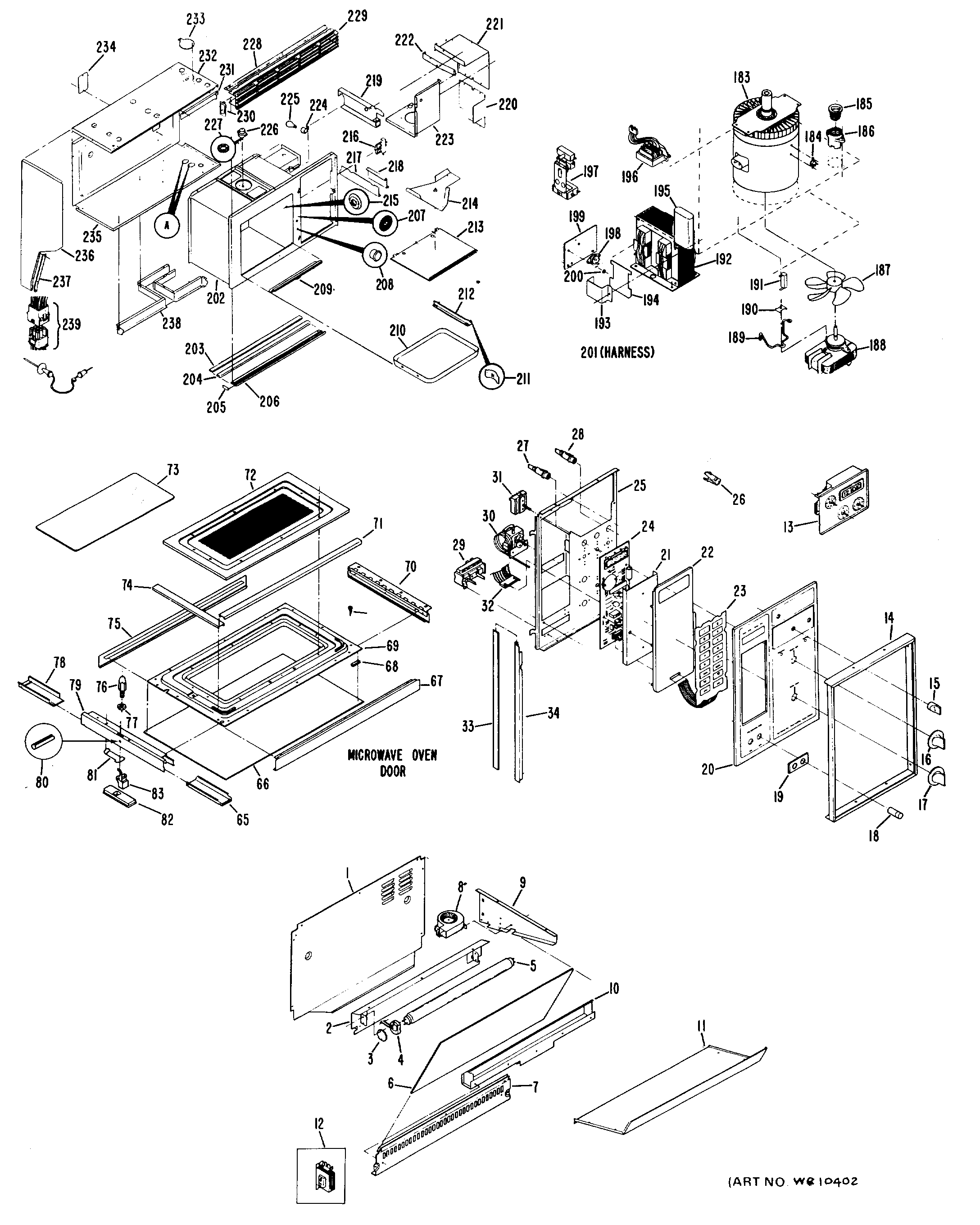

Position	Product
1	SHIELD REAR WALL
2	GEN WB02X4363
3	INSULATOR-FLUOR. LT. REC
4	RECEPTACLE-FLUOR LIGHT
5	FLUORESCENT LAMP
6	GEN WB36X0687
7	GEN WB07X1382
8	BLOWER MOTOR ASSEMBLY
9	GUSSET MICRO-SUPPORT L/H
9	GUSSET-MICROSUPPORT R/H
10	GEN WB02X4364
11	PANEL-SPLASHER (UPPER)
12	GEN WB27X0299
13	GEN WB19X0211
14	TRIM
15	KNOB-CLOCK
16	GEN WB03X0642
17	GEN WB03X0643
18	BUTTON
19	BEZEL
20	GEN WB36X0693
21	GEN WB02X4422
22	PANEL-SWITCH MOUNTING
23	KEYPANEL
24	SMARTBOARD
25	GEN WB02X4424
26	FASTENER
27	GEN WB02X4433
28	GEN WB02X4434
29	SWITCH-SELECTOR
30	GEN WB21X0405
31	SWITCH-ON/OFF
32	PLUG-9 PIN
33	GEN WB02X4425
34	COVE-SEAL
65	GEN WB02X4414
66	GLASS-DOOR
67	CHANNEL
68	GEN WB02X4416
69	FRAME-DOOR
70	HINGE-DOOR
71	GASKET-DOOR
72	PANEL-DOOR
73	LINER-DOOR
74	SEAL
75	CHANNEL
76	SCREW DOOR STRIKE
78	INSERT
79	EXTRUSION
80	GEN WB01X0780
81	SPRING
82	GEN WB15X0211
83	HOOK-HANDLE
183	GEN WB27X0302
184	GEN WB21X0404
185	FUSE
186	SOCKET-FUSE
187	FAN BLADE-MAGNETRON
188	FAN MOTOR
189	ROD-FAN SUPPORT
190	BRACKET
191	DIODE-HV
192	TRANSFORMER-HV
193	RETAINER
194	SHIELD
195	CAPACITOR HIGH VOLTAGE
196	TRANSFORMER-LV
197	GEN WB24X0344
198	TRIAC HEAT SINK ASM
199	GEN WB02X4432
200	NUT-HEX
201	GEN WB18X0220
203	SEAL
204	COVER
205	END CAP
206	TRIM-BOTTOM
207	STRIKE-DOOR
208	GROMMET-DOOR
209	TRIM-FRONT
210	TRAY-GLASS
211	CLIP-TRAY
212	GLIDE-TRAY
213	COVER-STIRRER
214	FAN-STIRRER
215	NUT
216	GEN WB20X0080
217	ANGLE-AIR BAFFLE
218	ANGLE-AIR BAFFLE
219	CHANNEL
220	COVER
221	COVER-DUCT
222	BRACKET MAG. SUPT.
223	GEN WB02X4406
224	SOCKET-UPPER OVEN LIGHT
225	RANGE ONLY 40W 120V APPL BULB
226	MOTOR-STIRRER
227	WASHER
228	RETAINER-TRIM
229	TRIM
230	END CAP-LEFT
230	GEN WB07
