JGKC15GEH3 1

Products

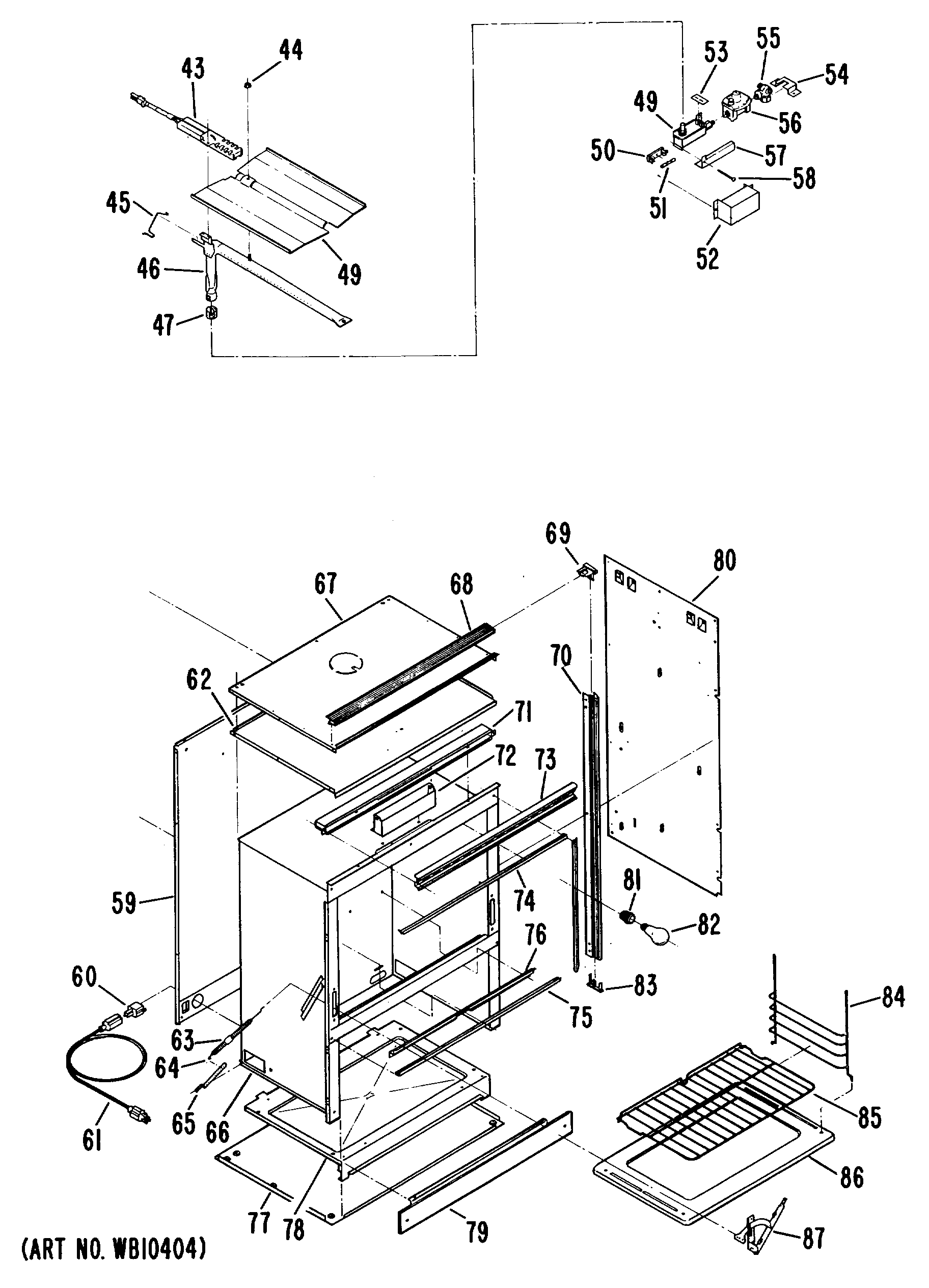

Position	Product
43	PLUG DISCONNECT
43	WB2X9998 GE Oven Flat Igniter
44	NUT
45	GEN WB02X4270
46	GEN WB28X0059
47	GEN WB02X4195
49	VALVE SAFETY
50	HOLDER-FUSE
51	GEN WB27X0277
52	COVER USE BLOCK
53	GEN WB02X4447
54	BRACKET VALVE MTG
55	GEN WB21X0409
56	GEN WB21X0410
57	GEN WB02X4449
58	SCREW BRACKET MTG
59	GEN WB02X0554
60	PLUG RECEPTICAL MALE
61	GEN WB18X0238
62	WRAPPER TOP INNER
62	SCREW WRAPPER MTG
63	SLEEVE
64	SPRING DOOR UPPER
65	GEN WB02X4451
67	WRAPPER TOP(OUTER)
68	SCREW TRIM MTG
68	GEN WB07X1408
69	CAP END TOP L & R
70	GEN WB07X1405
70	GEN WB07Z1406
71	GEN WB49X0549
72	GEN WB49X0548
73	GEN WB07X1404
74	SEAL DOOR TOP(BAKE OVEN)
75	SEAL SIDES(BAKE OVEN)
75	GEN WB02X4452
76	GEN WB55X0547
77	GEN WB49X0547
78	BOTTOM SUB
79	GEN WB07X1403
80	WRAPPER-SIDE (L&R)
81	GEN WB08X0249
82	RANGE ONLY 40W 120V APPL BULB
83	CAP VERT TRIM BOTTOM L.H.
83	CAP VENT TRIM BOTTOM R.H.
84	GLIDE RACK
85	RACK OVEN UPPER
86	GEN WB55X0586
87	HINGE OVEN DOOR RH
87	HINGE OVEN DOOR LH
