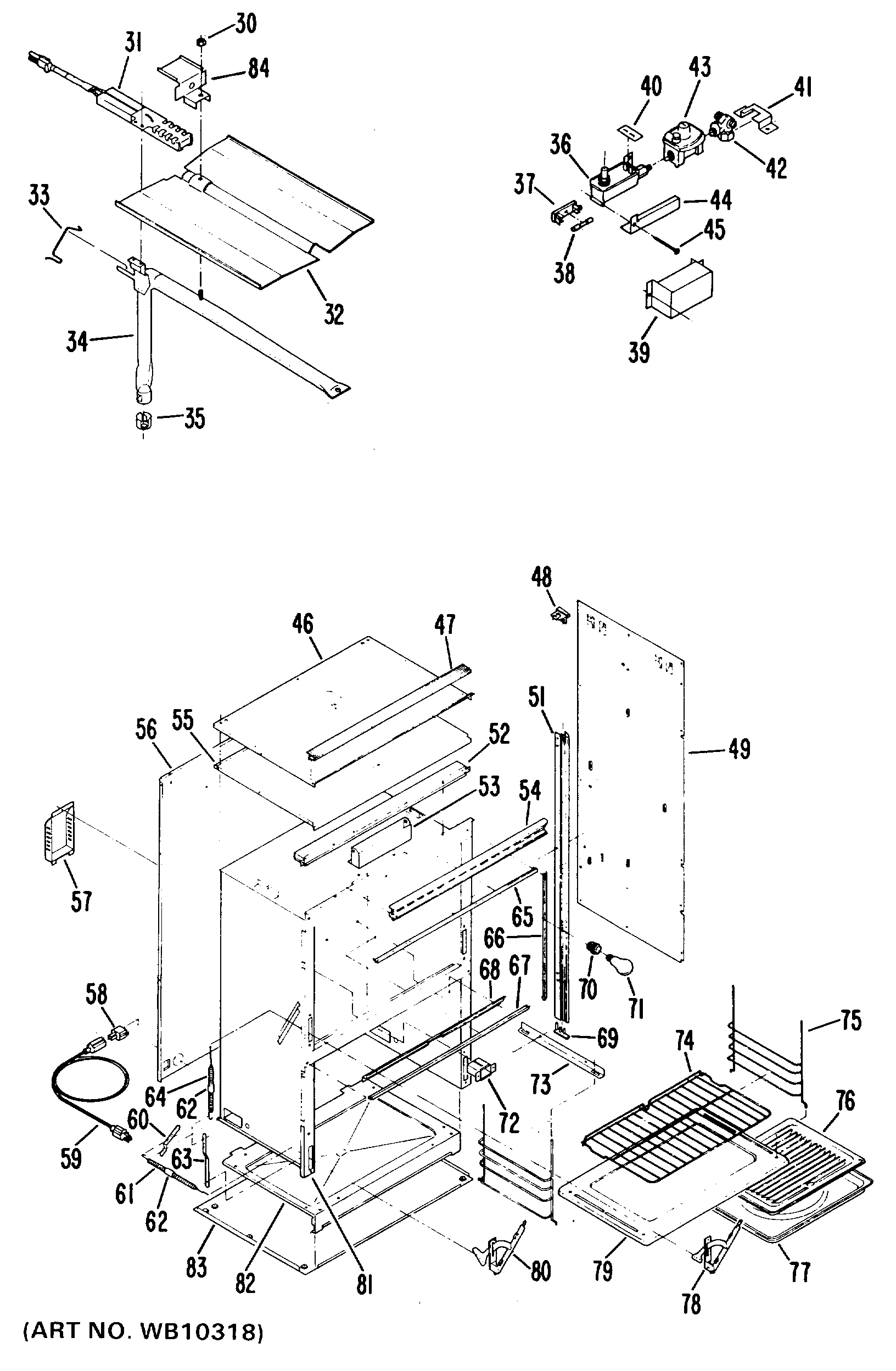

JGKC16GEH1 24″ GAS BUILT-IN OVEN

Products

Position	Product
30	NUT
31	PLUG DISCONNECT
31	12400035 Whirlpool Oven Flat Style Igniter Kit
32	GEN WB49X0511
33	GEN WB02X4270
34	GEN WB28X0055
35	GEN WB02X4195
36	VALVE SAFETY
37	HOLDER-FUSE
38	GEN WB27X0277
39	COVER USE BLOCK
40	GEN WB02X4447
41	BRACKET VALVE MTG
42	GEN WB21X0409
43	GEN WB21X0410
44	GEN WB02X4449
45	SCREW BRACKET MTG
46	WRAPPER TOP(OUTER)
47	GEN WB07X1408
48	CAP END TOP L & R
51	GEN WB07X1411
51	GEN WB07X1412
52	GEN WB49X0549
53	GEN WB49X0548
54	GEN WB07X1404
55	WRAPPER TOP INNER
56	GEN WB55X0550
57	GEN WB02X4412
58	PLUG RECEPTICAL MALE
59	GEN WB18X0238
60	GEN WB02X4457
61	GEN WB09X0204
62	SLEEVE
63	GEN WB02X4458
64	SPRING DOOR UPPER
65	SEAL DOOR TOP(BAKE OVEN)
66	SEAL SIDES(BAKE OVEN)
67	GEN WB02X4452
68	GEN WB55X0547
69	CAP VENT TRIM BOTTOM R.H.
69	CAP VERT TRIM BOTTOM L.H.
70	GEN WB08X0249
72	TUBE IGNITOR
73	GEN WB02X4459
74	GEN WB48X0177
74	RACK OVEN UPPER
75	GLIDE RACK
76	WB48X10056 GE Broil Pan Set, Large Porcelain
78	HINGE OVEN DOOR LH
78	HINGE OVEN DOOR RH
79	GEN WB55X0549
80	GEN WB14X0057
80	GEN WB14X0058
82	GEN WB55X0546
83	GEN WB49X0547
84	SHIELD-OVEN BOTTOM
