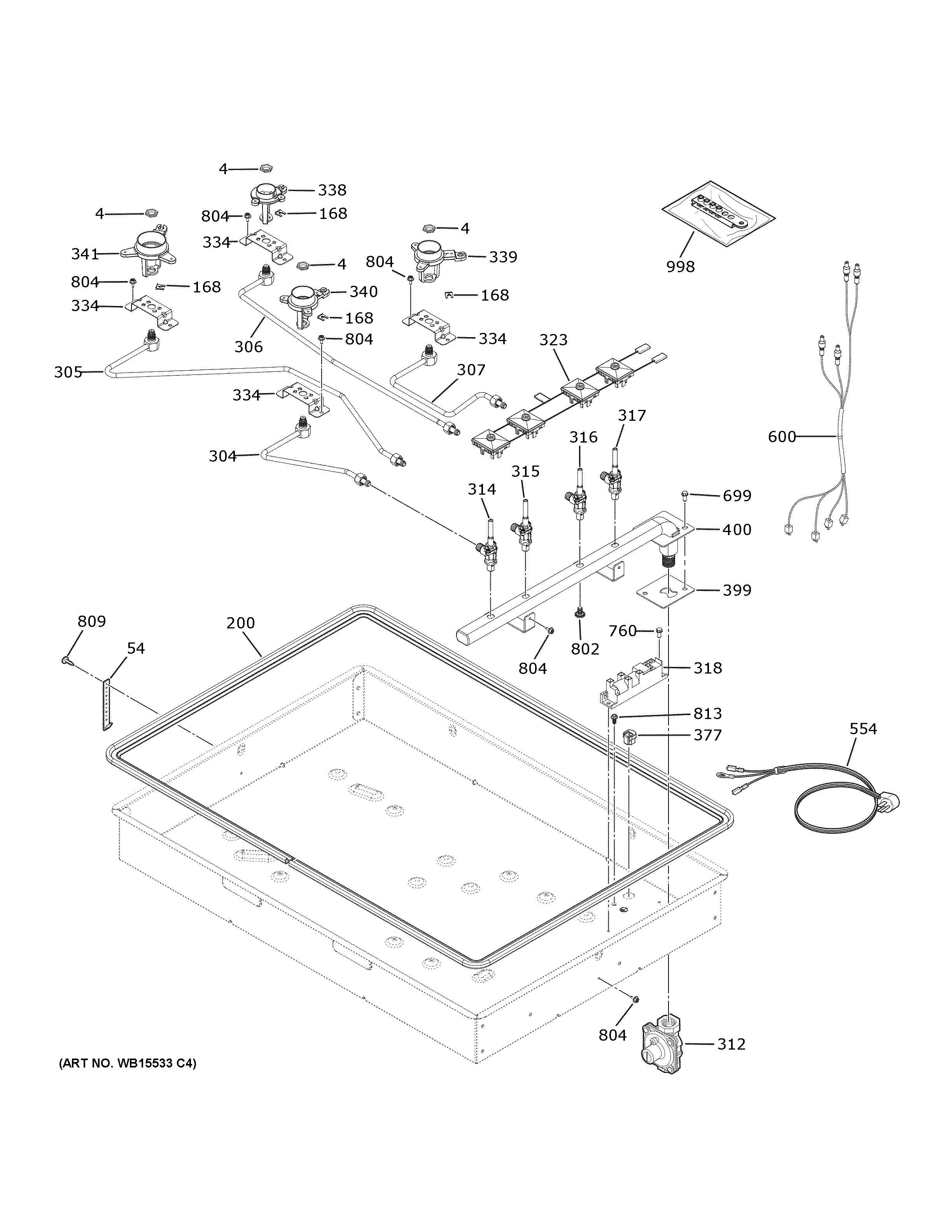

JGP3030DL2WW GAS & BURNER PARTS

JGP3030DL2WW GAS & BURNER PARTS

Written by

in

JGP3030DL2WW GAS & BURNER PARTS

Products

PositionProduct
4WB01K10037 GE Oven Economic Nut
54WB2K5328 GE Oven Hold Down Bracket
168WB02X24976 GE Oven Igniter Clip V2
200WB35X31306 GE Oven Gasket Burner Box
304WB28X29406 GE Right Front Gas Tube Assembly
305WB28X29404 GE Gas Tube Assembly
306WB28X29405 GE Gas Tube Assembly
307WB28X29407 GE Gas Tube Assembly
312WB19T10089 GE Oven Pressure Regulator
314WB21X45191 GE Gas Valve
315WB21X45190 GE Gas Valve
316WB21X45194 GE Gas Valve
317WB21X45193 GE Gas Valve
318SPARK MODULE
323WB18X45186 GE Switch Harness Assembly
334WB34X29282 GE Mounting Bracket
338WB02X24728 GE Range Small Injector
339WB02X24726 GE Range Injector Large
340WB02X24727 GE Oven Right Front Burner Jet with Electrode
341WB02X24725 GE Oven Inlet XLV2
377GEN WB02K5275
399MANIFOLD SEAL
400MANIFOLD TUBE ASSEMBLY
554WB18X25912 GE Range Cord
600WB18X29400 GE Oven Igniter and Harness Assembly
699WB1M1 GE Oven Screw
760WB1X536 GE Oven Screw
802WB01K10067 GE Oven Screw 1/4" HD 20
804WB01X24092 GE Oven Screw 8-18
809WB1X1137 GE Oven Screw
813WS02X10087 GE Screws 10-32 GX HXW 7/16 S
998WB28X29962 GE Oven LP Conversion Kit
998WB28X29861 GE Oven LP High Altitude Conversion
998WB28X29862 GE Oven High Altitude Natural Gas Conversion
